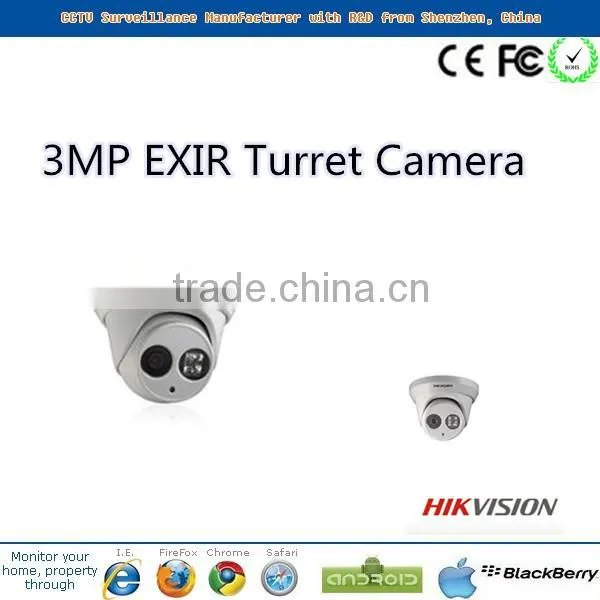

3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I

3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I thumbnail-1
3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I thumbnail-2
3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I thumbnail-3
3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I thumbnail-4
3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I thumbnail-5
3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I photo-1
3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I photo-2
3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I photo-3
3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I photo-4
3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hikvision
Model Number:
DS-2CD2332-I
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hikvision
Model Number DS-2CD2332-I
Type IP Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

  3MP Outdoor Network Mini  Hikvision Camera EXIR Turret                                   Dome Camera DS-2CD2332-I

 3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I





Product Features

> 3MP (2048 x 1536) high resolution

> Full HD1080p real-time video

> EXIR 30m IR range

> True day/night

> 3D DNR & DWDR & BLC

> IP66 rating





Specification

Camera
Image Sensor:  1/3" Progressive Scan CMOS
Signal System:  PAL/NTSC
Min. Illumination:  0.07Lux / (F1.2, AGC ON) ,0 Lux with IR
Shutter time:  1/25(1/30) s to 1/100,000 s
Lens:  4mm / F2.0 (2.8mm, 6mm, 12mm optional)
2048 × 1536:
Angle of view: 86°(2.8mm), 70°(4mm), 43.3°(6mm), 20.6°(12mm)
1920 × 1080:
Angle of view: 98.5°(2.8mm), 79°(4mm), 49°(6mm), 23.2°(12mm)
Lens Mount:  M12
Adjustment Range:  Pan:0° - 360°, Tilt: 0° - 75°, Rotation: 0° - 360°
Day& Night:  IR cut filter with auto switch
Wide Dynamic Range:  Digital WDR
Digital noise reduction:  3D DNR
Compression Standard
Video Compression:  H.264/M-JPEG
Bit Rate:  32 Kbps ~ 16 Mbps
Dual Stream:  Yes
Max. Image Resolution:  2048×1536
Frame Rate:  50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)
Image Settings:  Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC:  Yes, zone configurable
ROI:  Yes, up to 4 configurable areas
Network
Network Storage:  NAS
Alarm Trigger:  Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols:  TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security:  User Authentication, Watermark, IP address filtering, anonymous access
System Compatibility:  ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface:  1 RJ45 10M / 100M ethernet interface
General
Operating Conditions:  -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:  12 VDC ± 10%, PoE (802.3af)
Power Consumption:  Max. 5.5 W (Max. 7.5 W with IR cut filter on)
Weather Proof:  IP66
IR Range:  -I: Approx 20 to 30 meters(65.6-98.4ft)
Dimensions:  Φ127×97.5 (5.0” × 3.8”)
Weight:  670g (1.5 lbs)





s



3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I3MP Outdoor Network Mini Hikvision Camera EXIR Turret Dome Camera DS-2CD2332-I
