Onvif D1 Network Camera 1/3" Sony CCD 520TVL Box Camera HK-NB352

Name: Onvif D1 Network Camera 1/3" Sony CCD 520TVL Box Camera HK-NB352
Brand: Hyking
SKU: 127995737

Onvif D1 Network Camera 1/3" Sony CCD 520TVL Box Camera HK-NB352 thumbnail-1

Onvif D1 Network Camera 1/3" Sony CCD 520TVL Box Camera HK-NB352 photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Hyking

Model Number:

HK-NB352

Contact Supplier Request Quote Chat Now

Shenzhen KingCCTV Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Hyking

Model Number HK-NB352

Type IP Camera

Style Box Camera

Sensor CCD

Technology NetWork

Special Features Other

Onvif D1 Network Camera 1/3" Sony CCD 520TVL box camera

HK-NB352

Features

Use optimized H.264 video compression algorithm, support D1 High Definition
Low power consuming of the DSP, suit to long time running
25 frames/second per channel
The encoding parameter can be adjusted dynamically (bit rate/frame rate/image quality)
streaming format (video streaming or audio & video streaming) can be Optional
Support dual-bitstream output

Network functions

Support long-distance network for centre controlling, for example: LAN/Special network/WAN etc.
Built-in Web Server, support web browsing and remote software updating
Support whole TCP/IP protocol
Support ADSL
Support dynamic IP address using DHCP protocol
Encryption technology of the user name/password/compression bit rate, preventing lawless stealing the information

Record functions

Provide Manual / Timing / Alarm / Motion-detection recording functions
Provide record through the network

Specifications

Model No.		HK-NB312	HK-NB352
Image Sensor		1/3" Sony CCD	1/3" Sony CCD
Total Pixels		420TV Lines	520TV Lines
Minimum illumination		0.5Lux	0.3Lux
S/N Ratio		More than 48db
Network Protocol		TCP/IP,HTTP,ARP,RARP,ICMP,DHCP,FTP,SMTP
Network Interface		RJ45
CPU DSP		TI 642
Video	Compression Algorithm	H.264
	Compression Rate	10:1~200:1(typical30:1)
	Frame Rate	1~30 fps(NTSC)/1~25 fps(PAL)
	Resolution	D1, CIF
	Input	1Ch
	Output	1Ch
Audio	Compression Algorithm	ADPCM
	Compression Rate	128Kbit/s
	Input	1Ch (optional)
	Output	1Ch (optional)
Management and Software Update		allow new version software updates through TCP/IP network
Security		Password Protection
		IP Address Fittering
		Watch Dog
		Image Encryption
Dimension		140mm71mm39mm
Weight		580g
Power Supply		12V DC

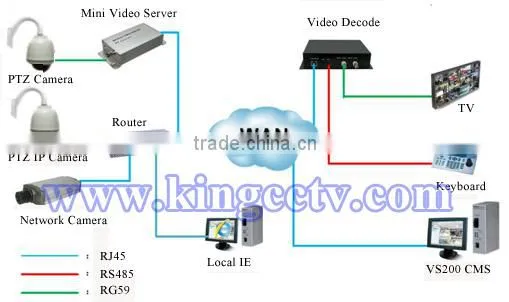

Connection
