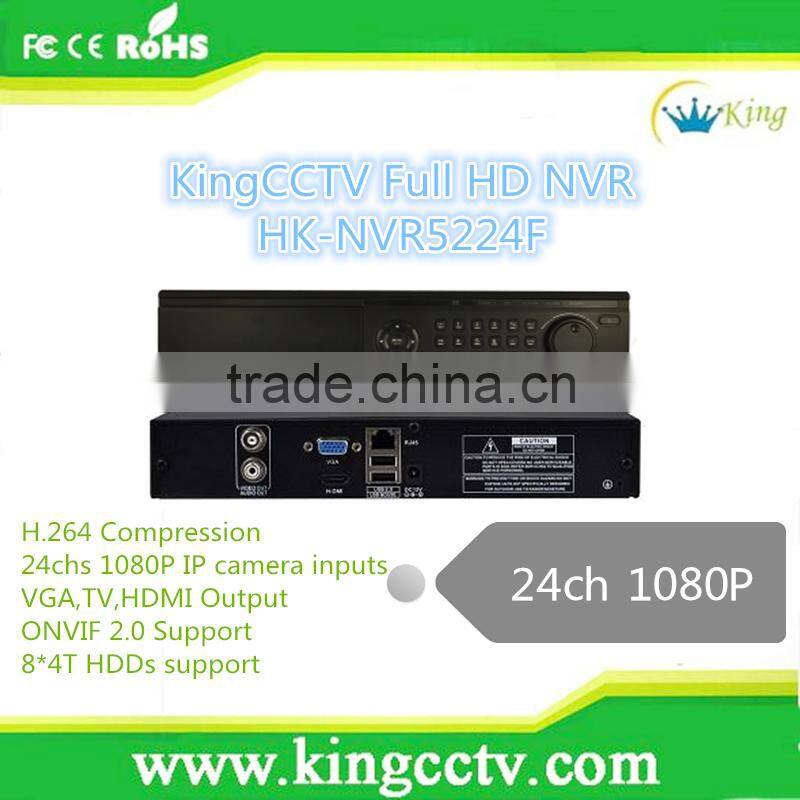

KingCCTV Cheap network recorder 24ch
HK-NVR5224F full hd 1080p nvr
full hd 1080p nvr
Specification-- full hd 1080p nvr
Specifications
| Model No. | HK-NVR5204F | HK-NVR5208F | HK-NVR5224F |
| Main Processor | Hi3520D | ||
| Operating System | Embedded Linux | ||
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | ||
| Operation interface | 16 bit real color GUI interface support mouse operation | ||
| Display screen | 1/4 | 1/4/8/9 | 1/4/8/9/16/24 |
| Video standard | PAL(625 lines, 50fps); NTSC(525lines, 60fps) | ||
| Image encode | H.264(High Profile) | ||
| Monitor quality | Monitor: D1; VGA: High Definition; HDMI: High definition | ||
| Playback quality | 1080P/D1 | ||
| Encode capability | 1ch 1080P Realtime | ||
| Motion detection | Each channel can set 192(16*12) detection area | ||
| Audio compression | G711A | ||
| Bidirectional talk | support | ||
| Record mode | manual>alarm>motion detection>timing | ||
| Local playback | support 1ch/4ch playback | ||
| Video search | Time, date, event, channel search | ||
| Space occupation | Video: CIF 4~5G/day*chs, D1 16~20G/day*chs, 960H 12G~20G/day*chs; 720P 20~30G/day*chs; 1080P ~40G/day*chs audio: 691.2M/day*channel |
||
| Video storage | Local HDD, Network | ||
| Back up mode | Network backup, USB portable HDD, USB DVD/RW, SATA DVD/RW | ||
| Video input | 4chs 1080P,4chs D1 for Storage | 8chs 1080P, 8chs 720P, 16chs D1 for Storage | 24chs 1080P for Storage |
| Video output | 1ch BNC, 1ch VGA, 1ch HDMI | ||
| Video Loop out | N/A | ||
| Audio input | N/A | ||
| Audio output | 1ch RCA(200-3000mV, 5KΩ) | ||
| Alarm input | N/A | ||
| Alarm output | N/A | ||
| Network interface | RJ45 10M/100M self-adaptive Ethernet port | ||
| PTZ control | 1 RS485; support multi kinds of PTZ protocol | ||
| USB port | 2 * USB2.0 | ||
| HDD port | 2 SATA port(2*4T) | ||
| Power | 12V/2A | ||
| Consumption | less than 5W(not include H.D.D.) | ||
| Working Temperature | 0℃ ~ +55℃ | ||
| Working Humidity | 10%~90% | ||
| Dimension | L233*W300*H45 | ||
| Weight | 1.46KG | ||
Features-- full hd 1080p nvr
Feature
- 4chs/8chs/24chs IP camera inputs
- 1ch audio in & 1ch audio out
- Max 480fps@1080p recording
- ONVIF Version 2.0 conformance
- HDMI / VGA simultaneous video output
- Support 8 SATA HDDs up to 4TB, 2 USB2.0, 1RJ45(1000M)
- Multi-language Support(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc)
- Support Onvif
- Support KingCCTV cloud(),no need to do router mapping, just 1 step go to internet with KingCCTV cloud technology
- Support multi-browser(IE, Chrome, Firefox, Safari)
- support 3G & WIFI extension
- support P2P, cloud service

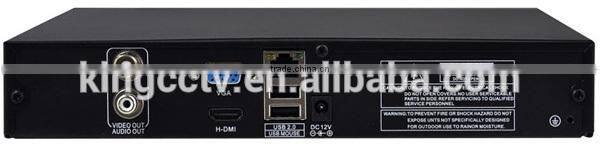

Real shot of full hd 1080p nvr
Considerate Service-- full hd 1080p nvr
OEM and ODM are both acceptable
Sample order is acceptable
Payment terms: Paypal, T/T, Western Union
Warranty: 2 YEARS
Certification: CE, FCC, RoHS
Lead time: 3-25 days since purchasing date
Note: In case of not stock, you can do 30% as deposit, and pay 70% when ready.
Adantage-- full hd 1080p nvr
1.Our product line includes CCTV Camera, IP Camera, PTZ Camera, Network Camera, AHD Camera, NVR, DVR and all kinds of accessories.
2. All of our products are factory direct selling. With our own factory, we strictly monitor the price and quality in order to meet customers's requirements.
3. We have accomplished the following big projects:
- CCTV Surveillance for Greece National Park
- CCTV Surveillance for Jewish Historical Museum Amsterdam
- CCTV Surveillance for Barranquilla Harbour in Colombia
- CCTV Surveillance for Shell in Japan
full hd 1080p nvr
Shenzhen KingCCTV Technology Co., Ltd. is a high technology enterprise, engaged in software & hardware development, manufacturing and sales for security & safe products.
Our factory is in Yindafeng Industry Park of Longgang District of Shenzhen. As our business extended, in order to provide more products and better service, we established a Greece Branch on January of 2008, and established a USA Branch in Senoia GA on October of 2012. We mainly sell, develop and manufacture DVR, HDVR, NVR, CCTV Camera, IP Camera, PTZ camera, etc.
Due to the hard work of all staffs in KingCCTV, and the continuous supports from our extensive customers, we have already achieved outstanding accomplishments in the past years. Here we deeply appreciate that it's only the customer's success which makes KingCCTV successful. So we would like to cooperate with you in the long run and create a brilliant future for all of us.
Welcome to vist our factory anytime you like
full hd 1080p nvr
Shenzhen KingCCTV Technology Co.,Ltd
Overseas Marketing Sales
Edison Tang
Mail: sales6(at)
Skype:kingcctv-sales6
Whatsapp:18320821085
WeChat:281481464
Welcome to inquiry
full hd 1080p nvr
(1)What is your MOQ?
Edison: Dear, for sample order, there is no MOQ. From second order, at least 50 pcs per order.
(2)How about delivery time?
Edison: We always make the shipment by DHL,UPS,Fedex. About 3-25 business days after confirming your payment.
(3)Payment terms?
Edison: We accept T/T, Paypal, Western Union payment.
(4)Can I be your exclusive representative?
Edison: Sure, dear. You are welcome to be our agents in your market. We have official contract to sign. Till now, we have sold our products to more than 40 countries.
(5)How about warranty?
Edison: All of our products are of 2 YEAR warranty.
(6)Can you do OEM/ODM?
Edison: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your own packaging according to your requriements.
