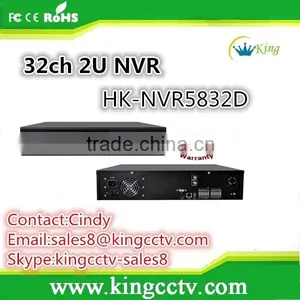

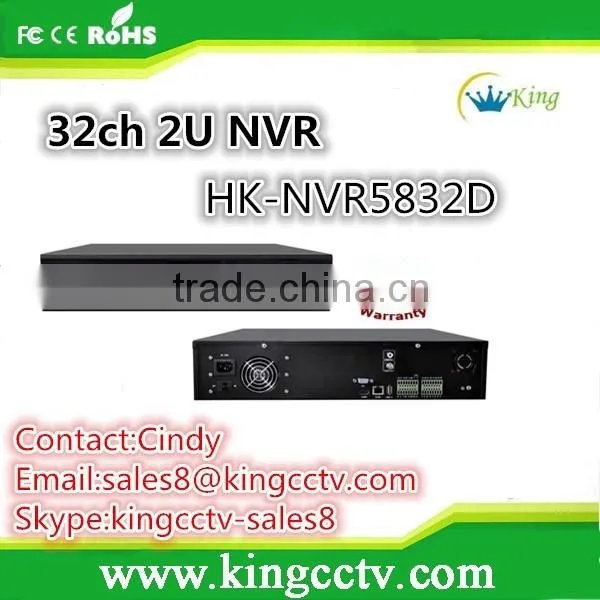

32ch h 264 embedded 1080p nvr cctv nvr h.264 p2p cloud network cctv nvr HK-NVR5832D
Feature
- 16chs/24chs/32chs IP camera inputs
- 1ch audio in & 1ch audio out
- Max 480fps@1080p recording
- ONVIF Version 2.0 conformance
- HDMI / VGA simultaneous video output
- Support 2 SATA HDDs up to 8TB, 2 USB2.0, 1RJ45(1000M)
- Multi-language Support(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc)
- Support multi-browser(IE, Chrome, Firefox, Safari)
- support 3G & WIFI extension
- support P2P, cloud service
Specification
Model No. |
HK-NVR5816F |
HK-NVR5824F |
HK-NVR5832D |
Main Processor |
Hi3535 |
||
Operating System |
Embedded Linux |
||
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
||
Operation interface |
16 bit real color GUI interface support mouse operation |
||
Display screen |
1/4/8/9/16 |
1/4/8/9/16/24 |
1/4/8/9/16/24/32 |
Video standard |
PAL(625 lines, 50fps); NTSC(525lines, 60fps) |
||
Image encode |
H.264(High Profile) |
||
Monitor quality |
Monitor: D1; VGA: High Definition; HDMI: High definition |
||
Playback quality |
1080P/D1 |
||
Encode capability |
1ch 1080P Realtime |
||
Motion detection |
Each channel can set 192(16*12) detection area |
||
Audio compression |
G711A |
||
Bidirectional talk |
support |
||
Record mode |
manual>alarm>motion detection>timing |
||
Local playback |
4*3MP |
4*1080P |
8*1080P |
Video search |
Time, date, event, channel search |
||
Space occupation |
Video: CIF 4~5G/day*chs, D1 16~20G/day*chs, 960H 12G~20G/day*chs; 720P 20~30G/day*chs; 1080P ~40G/day*chs |
||
Video storage |
Local HDD, Network |
||
Back up mode |
Network backup, USB portable HDD, USB DVD/RW, SATA DVD/RW |
||
Video input |
16chs 3MP |
24chs 1080P |
32chs 960P |
Video output |
2ch BNC, 1ch VGA, 1ch HDMI |
||
Video Loop out |
N/A |
||
Audio input |
N/A |
||
Audio output |
1ch RCA(200-3000mV, 5KΩ) |
||
Alarm input |
16chs |
||
Alarm output |
4chs |
||
Network interface |
RJ45 10M/100M self-adaptive Ethernet port |
||
PTZ control |
1 RS485; support multi kinds of PTZ protocol |
||
USB port |
2 * USB2.0 |
||
HDD port |
8 SATA port(8*4T) |
||
Power |
ATX Power Supply |
||
Consumption |
less than 15W(not include H.D.D.) |
||
Working Temperature |
0℃ ~ +55℃ |
||
Working Humidity |
10%~90% |
||
Dimension |
L430*W440*H93 |
||
Weight |
7.5KG |
||
