High Quality 4ch ahd dvr 1080p
- 5000000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- Supply of Sodimax financial escort vehicle in-vehicle wireless 4G monitoring solution
- Supply school student delivery vehicle 4G wireless video real-time surveillance video recorder
- 4-channel 1080P single SD truck-mounted video recorder supports 4G network GPS full real-time monitoring
- SD Card 1080P HD Car Video Recorder H.264 Car Video Surveillance Solution
- 1080P HD MDVR Wifi GPS 3G Digital Video Recorder for School Bus CCTV System
- SD Card 720P HD Vehicle DVR H.264 Car Alarm Monitoring Solution
Product Details
Place of Origin: | Guangdong, China | Brand Name: | KingCCTV | Model Number: | HK-AHD5104F |
Product Description
High Quality 4ch ahd dvr 1080p
High Quality 4ch ahd dvr 1080p
W What is the Feature of our Products?
- 4/8/16/24ch AHD (Analog High-Definition) video & 4ch IP camera inputs
- Adopt 75-3 (or more) coaxial, transmission distance up to 500 meters; Low-cost, long distance, without delay, high efficiency, noise immunity and easy installation.
- Easily upgrading the old analog systems to the Mega high-definition system without changing the installed coax cables and equipment
- Support analog video, Analog HD video, network HD video input
- AHD: 4ch@AHD_L,8/16/24ch@AHD-M
- IPC: Max 50fps@1080p, 100fps@720p, 200fps@960H
- HDMI output up to 1080p, VGA
- alarm in & relay out Optional, RS485
- 4/8/16ch sync real time playback
- 1/2 SATA, 2 USB, 1 RJ45(1000M)
- Support Multi-language: English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc
- Support multi-browser: IE, Chrome, Firefox, Safari
- support 3G & WIFI extension
- support P2P,cloud service
W What is the Specifications of our products?
High Quality 4ch ahd dvr 1080p
Model | HK-AHD5104F | HK-AHD5108F | HK-AHD5116F | HK-AHD5124F | |||
System | Main processor | Hi3515C | Hi3531 | ||||
Operating system | Embedded LINUX operating system | ||||||
System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | ||||||
Interface | Operation interface | 16 bit real color GUI interface support mouse operation | |||||
Display screen | Take all analog input as an example, others are depended on the selected channel mode | ||||||
1/4 screen | 1/4/8/9 screen | 1/4/8/9/16 screen | 1/4/8/9/16/24 screen | ||||
Video | Video standard | PAL (625 lines, 50fps); NTSC (525lines, 60fps) | |||||
Image encode | H.264(High Profile) | ||||||
Monitor quality | Monitor: D1; VGA: High Definition; HDMI: High definition | ||||||
Playback quality | Max support 1080P under HVR and NVR mode Max 720P Under local analog input mode: | ||||||
720P*4 | 720P*8 | 720P*16 | |||||
Encode capability | 4*720P | 8*720P | 16*720P | 24*720P | |||
Decode capability | 4*720P | 8*720P | 16*720P | 24*720P | |||
Multi-mode video input | Local analog input: | ||||||
720P*4/AHD-L*4 | 720P*8/AHD-M*8 | 720P*16/AHD-M*16 | 720P*24/AHD-M*24 | ||||
Local analog + network digital input: 720P(AHD)*4+720P(IP)*4 | |||||||
All network digital input: 720P*8+1080P*1/1080P*4/960H*20 | |||||||
Motion detection | Each channel can set 192 (16*12)detection area; can set multi-level of flexibility (for local analog channel only) | ||||||
Audio | Audio compression | G.711A | |||||
Bidirectional talk | support | ||||||
Record and playback | Record mode | manual>alarm>motion detection>timing | |||||
Local playback | 720P*4 | 720P*8 | 720P*16 | ||||
Video search | Time,date,event,channel search | ||||||
Storage and back up | Space occupation | Video:CIF 4~5G/day*channel, D1 16~20G/day*channel; 960H 12G~20G/Day*CH audio:691.2M/day*channel | |||||
Video storage | Local HDD ,Network | ||||||
Back up mode | Network backup,USB portable HDD,USB DVD/RW,SATA DVD/RW | ||||||
Interface | Video input | 4ch BNC | 8ch BNC | 16ch BNC | 32ch BNC | ||
Video output | 1ch BNC,1ch VGA,1ch HDMI | ||||||
Video Loop out | Not Support | ||||||
Audio input | 1ch RCA(200-2800mV,30KΩ) | 4ch RCA(200-2800mV,30KΩ) | |||||
Audio output | 1ch RCA(200-3000mV,5KΩ) | ||||||
Alarm input | N/A(4chs Optional) | ||||||
Alarm output | N/A(1ch Optional) | ||||||
Network interface | RJ45 10M/100M self-adaptive Ethernet port | ||||||
PTZ control | 1 RS485; support multi kinds of PTZ protocol | ||||||
USB port | 2*USB2.0 | ||||||
HDD port | 1 SATA port (1*4T) | 2 SATA port (2*4T) | |||||
Wireless port | N/A | 3G,WIFI(extension via USB port) | |||||
Other | Power | 12V/3A | |||||
Consumption | less than 5W(not include H.D.D.) | ||||||
Working Temperature | 0℃-+55℃ | ||||||
Working Humidity | 10% ~ 90% | ||||||
Dimension(mm) | L233 * W300 * H45 | ||||||
Package | 5 sets/Carton(457*455*308) | ||||||
Weight | 1.46KG |
High Quality 4ch ahd dvr 1080p

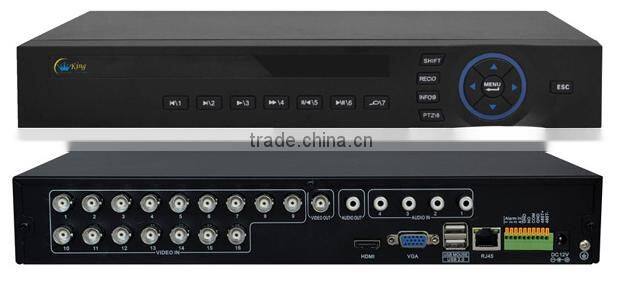

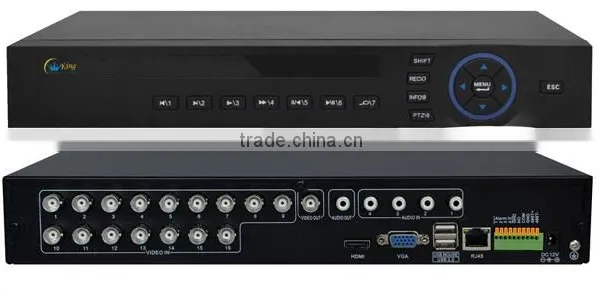

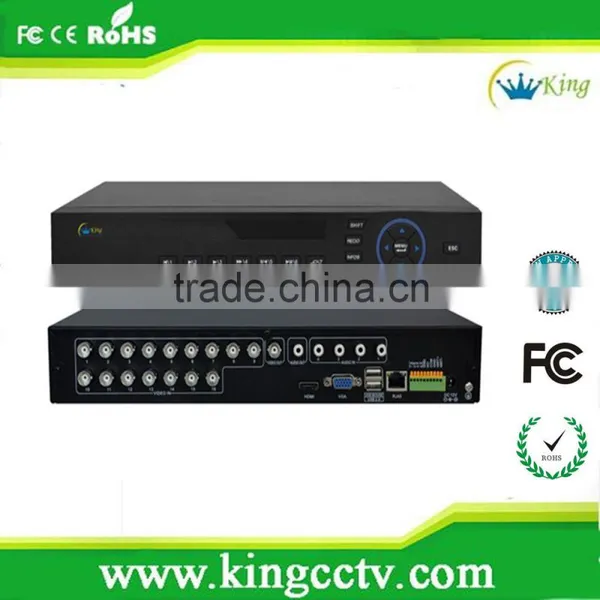

P Product Photos
W What is the Effect image of our Products?
KingCCTV VS TOP 10
Video Image comparision between KingCCTV with Top 10 XXhua
W What is the Applications of our products?
P Packaging &Shipping,Trade Terms
W Why choosing us?
1. More professional, better quality.
We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.
2. OEM/ ODM service available.
Any your idea on camera we can help you to design and put in solution.
3.Strong Tech support.
* Presale: product consultation and solution design can be provided.
* After sale: We offer a 2years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..
4. Strict Quality Control :
All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.
with CE, ROHS, FCC approval.
A ABOUT US
O Our Certifications
O Our Exhibitions & Customers visiting
outdoor poe 20x optical zoom pan tilt high speed ptz ip security camera
F FEEDBACK
C Customers from All over the World
F FAQ
Q1. Can I get samples?
A1. Sure. We will appreciate it if you’d like to purchase samples for tests first. For sample order, there is no limit on MOQ. And we will send samples as soon as possible after confirming your payment
Q2. Are you factory?
A2. Yes we are. We have our own factory, which can help you get factory direct selling products with competitive prices. We always monitor strictly the quality of products before they leave factory.
Q3. How about warranty period? If any problem, can I get enough support?
A3. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item to us to repair or you can keep it and we will send a total new one to you soon. With strong technical team, we can provide life-time and timely technical support whenever there is something wrong with our products.
Q4. Why the shipping cost is so much? How about delivery time?
A4. Before shipment, we will find the most reliable carrier for you to make sure of lowest freight cost and shortest lead time. As for the delivery time, it depends on the order quantity. Normally it would take 3-15 days for one order.
Q5. Can I become your sole distributor in my place?
A5. We appreciate that. And we will discuss about your market situation together and after confirmation we will send you a contract with detailed requirements about sales targets.
Q6. Can you give us enough brochures and ideas as promotion to our customers?
A6. Yes, we’d love to help you promote your business. Welcome to share your idea of your market status and we will give you valuable advice and detailed information you need.
Q7. Can you make OEM products for us?
Q7. Sure we can. Do not worry, we can print your logo both on the products and boxes. But we might ask for MOQ according to the real situation.
