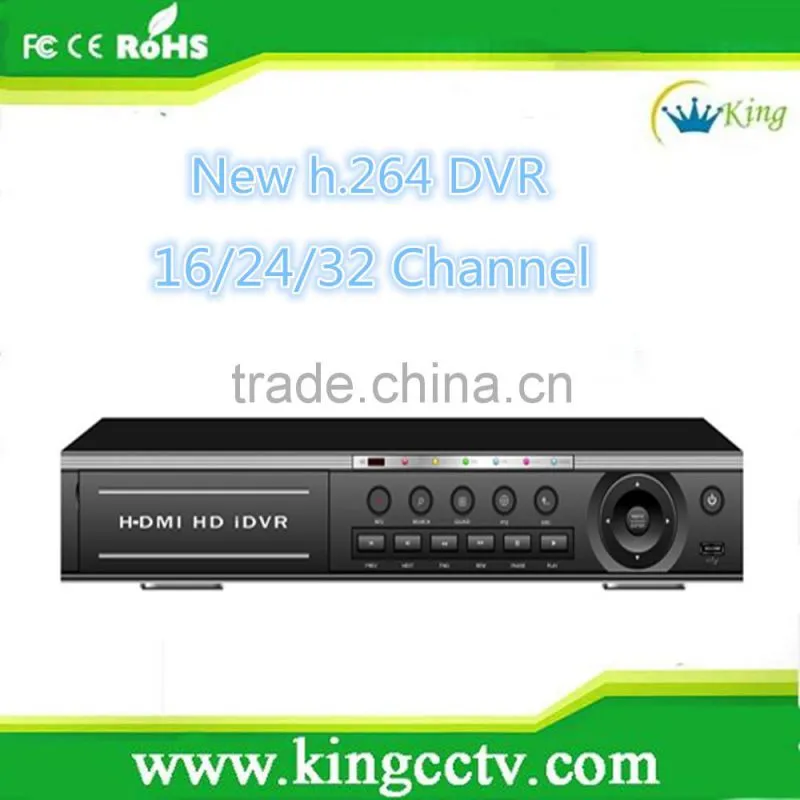

2015 new products standalone dvr 16 channel cctv dvr h 264
W What is the Feature of our Products?
Features
- H.264 standard compression format with efficient processing and clear image.
- Dual encoding streams flexible for network transmission and mobile phone monitoring.
- Support Multi-language: English,Chinese Simplified,Chinese Traditional,Italian,Spanish,Japanese,Russian,French, German,Portuguese,Turkish,Polish,Hungarian,Finnish,Persian,Thai,Greek,Vietnamese, Romanian,Brazilian,Swedish,Arabic,Bahasa Indonesia,Hebrew,Ukrainian etc 30 kinds of languages
- New standard for professional DVR with high performance and competitive price.
- Support 3G Mobilephone Surveillance with Window Mobile, iPhone,iPad, Android, Blackberry,Symbian.
- Manual,timing,motion detection,video blind and video loss recording
- Support P2P Cloud Vision function,One step to link internet
- Support VGA and CVBS(TV) simultaneous output.
- Support remote IE, Netview, CMS, OSD live preview, settings, backup or playback.
- Support Custom DDNS Domain name
- Support IE, Chrome, Firefox, Safari browsers
- Support TCP/IP,UDP,DHCP,IP Filter,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL,Alarm Server,ARSP
- Support backup & upgrade with USB flash disk.
- Powerful network software:built-in web server, multi-DVR client, XMEYE(mobile phone surveillance software) & CMS.
- Supports SATA HDD (2 or 4 SATA, Maximum 24TB)
- Graphical view of GUI,user-friendly,easy to understand and operation
W What is the Specifications of our products?
2015 new products standalone dvr 16 channel cctv dvr h 264
| Model No. | HK-S3416F |
HK-S3424F |
HK-S3432F |
| Compression Format | H.264 Standard compression | ||
| Operation System | Embedded LINUX | ||
| Main Processor | Hi3521 | Hi3520A | Hi3521 |
| Control Mode | Front panel, USB mouse, IR remote control, Keyboard, Network | ||
| System Resources | Pentaplex function: live, recording, playback, backup & remote access | ||
| Video Input | BNC x 16, 1.0VP-P,75O | BNC x 24, 1.0VP-P,75O | BNC x 32, 1.0VP-P,75O |
| Video Output | 1CH BNC TV-OUT, 1HDMI; Support VGA and BNC simultaneous output | ||
| Main Stream Record Speed | D1 400FPS@PAL; D1 480FPS@NTSC | CIF 320x240 600FPS@PAL; CIF 352x240 720FPS@NTSC | CIF 320x240 800FPS@PAL; CIF 352x240 960FPS@NTSC |
| Extra Stream Speed | QCIF(1~25/30fps) | ||
| Recording Mode | Manual,timing,motion detection,video blind and video loss recording | ||
| Playback | 4ch | 8ch | 16ch |
| Audio Input/Output | N/A | 8ch/1ch | |
| Hard Disk Storage | 2 or 4 SATA,Maximum 24TB | ||
| Alarm Input/Output | 4ch/1ch | 8ch/1ch | 16ch/1ch |
| Multiplex Operation | Live display / record / playback / backup / network operations | ||
| Playback mode | Multiple slow and rapid play speeds, manual and single-frame play modes,and support positioning the time by driving the sliding bar | ||
| Backup Device | U-disk/Hard disk/download | ||
| Pre-alarm Recording | recording for 5 seconds before alarming | ||
| Network Protocol | TCP/IP,UDP,DHCP,IP Filter,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL,Alarm Server,ARSP | ||
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet | ||
| Web Interface | Internet Explorer (5 users access simultaneously); Operating System: Windows Vista / XP / 2000 | ||
| VGA Interface | Built-in | ||
| IR Remote Control | YES (IR receiver built-in) | ||
| Mobile Phone Support | Symbian, Windows CE, iPhone, Google Android and BlackBerry | ||
| Language | English, Chinese Simplified, Chinese Traditional, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Polish, Hungarian, Finnish, Persian, Thai, Greek, Vietnamese, Romanian, Brazilian, Swedish, Arabic, Bahasa Indonesia, Hebrew, Ukrainian | ||
| PTZ Control | Yes | ||
| USB Mouse | Yes | ||
| Power Source | 12V/6A DC(±10%) | ||
| Key Lock | Yes(Password Protection) | ||
| System Recovery | System auto recovery after power failure | ||
| Dimension | 1.5U,390*320*50mm(DVR Size); 450mm X 430mm X 120mm(Pack Size) | ||
| Working Temperature | -10 ~ +55°C | ||
| Working Humidity | 10%- 90% | ||
| Weight | 6.3KG (No HDD) | 8.7KG (No HDD) | |
P Product Photos
W What is the Effect image of our Products?
W What is the Applications of our products?
P Packaging &Shipping,Trade Terms
W Why choosing us?
1. More professional, better quality.
We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.
2. OEM/ ODM service available.
Any your idea on camera we can help you to design and put in solution.
3.Strong Tech support.
* Presale: product consultation and solution design can be provided.
* After sale: We offer a 2years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..
4. Strict Quality Control :
All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.
with CE, ROHS, FCC approval.
A ABOUT US
O Our Certifications
O Our Exhibitions & Customers visiting
2015 new products standalone dvr 16 channel cctv dvr h 264
F FEEDBACK
C Customers from All over the World
F FAQ
Q1. Can I get samples?
A1. Sure. We will appreciate it if you’d like to purchase samples for tests first. For sample order, there is no limit on MOQ. And we will send samples as soon as possible after confirming your payment
Q2. Are you factory?
A2. Yes we are. We have our own factory, which can help you get factory direct selling products with competitive prices. We always monitor strictly the quality of products before they leave factory.
Q3. How about warranty period? If any problem, can I get enough support?
A3. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item to us to repair or you can keep it and we will send a total new one to you soon. With strong technical team, we can provide life-time and timely technical support whenever there is something wrong with our products.
Q4. Why the shipping cost is so much? How about delivery time?
A4. Before shipment, we will find the most reliable carrier for you to make sure of lowest freight cost and shortest lead time. As for the delivery time, it depends on the order quantity. Normally it would take 3-15 days for one order.
Q5. Can I become your sole distributor in my place?
A5. We appreciate that. And we will discuss about your market situation together and after confirmation we will send you a contract with detailed requirements about sales targets.
Q6. Can you give us enough brochures and ideas as promotion to our customers?
A6. Yes, we’d love to help you promote your business. Welcome to share your idea of your market status and we will give you valuable advice and detailed information you need.
Q7. Can you make OEM products for us?
Q7. Sure we can. Do not worry, we can print your logo both on the products and boxes. But we might ask for MOQ according to the real situation.
