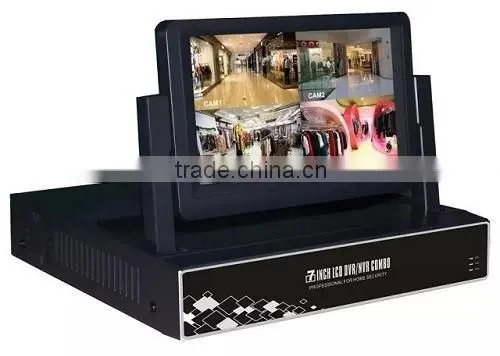

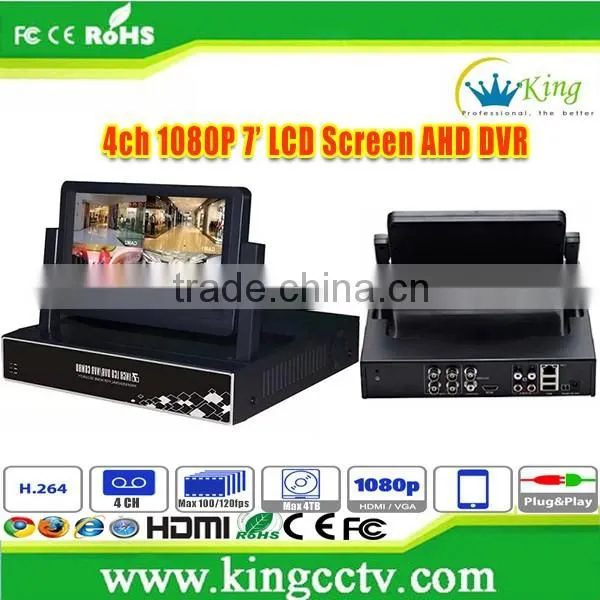

Help CenterHot Sell 4ch 7inch LCD Screen HD LCD DVR All in One Dvr With Built-in Lcd Monitor
Related Products
-
2015 Top 10 H.264 24ch HD DVR Ahd Dvr 1080pUS$ 200 - 240MOQ: 1 Set -
2015 Top 10 H.264 16ch HD DVR 1080p Ahd DvrUS$ 70 - 90MOQ: 1 Set
-
2015 Top 10 H.264 8ch HD DVR 1080p Ahd DvrUS$ 60 - 80MOQ: 1 Set
-
2015 New Products Standalone Dvr 16 Channel Cctv Dvr h 264US$ 95 - 245MOQ: 1 Set
-
8ch 7inch LCD Screen AHD NVR DVR Combo Dvr With Built-in Lcd MonitorUS$ 49 - 79MOQ: 1 Set
W What is the Specifications of our products?
Features
- 7inch LCD H.264 Network AHD/NVR/DVR
- DVR with built-in lcd monitor
- H.264 compression algorithm ideal for standalone DVR
- Support 1CH 960P/720P Real Time Playback or 2ch 1080P/ 960P/ 720P Real Time Playback
- Support 4/8CH 1080P at 25fps,4/8CH 960H at 25fps.Real Time Recording
- Supports SATA HDD (maximal value of each hard disk is up to 4TB)
- Support Multi-language: English, Italian, Turkish, Russian, French, Portuguese, Spanish, Polish, Hebrew, Thai, Traditional Chinese, Japanese.
- New standard for professional DVR with high performance and competitive price.
- Support Mobilephone Surveillance with Symbian , Windows CE,Iphone , Google Android
- Dual encoding streams flexible for network transmission and mobile phone monitoring.
- Multiple function: Live, Recording, Playback, Backup & Remote access.
- Smart video detection: motion detection, camera blank, video loss.
- Support 3G & WIFI USB Modem.
Specifications
| Model No. | HK-S0704M | HK-S0708M | HK-S0716M |
| Compression Format | H.264 / G.711 | ||
| Operation System | Embedded LINUX | ||
| Main Processor | Hi3515C | Hi3520D | Hi3520D |
| Display screen | 1/4 screen | 1/4/8/9ch screen | 1/4/8/9/16ch screen |
| Analog Video Input | BNC x 4, 1.0VP-P,75O | BNC x 8, 1.0VP-P,75O | BNC x 16, 1.0VP-P,75O |
| IP Input | 4CH IPC Input | 16CH IPC Input | 16CH IPC Input |
| Video Output | Monitor:D1;HDMI, VGA:(1280*1024, 1024*768, 1280*720) | ||
| Video Standards | PAL(100f/s); NTSC(120f/s) | PAL(200f/s); NTSC(240f/s) | PAL(400f/s); NTSC(480f/s) |
| Playback quality | 720P/960P/1080P | ||
| Encode capability | 4ch 720P AHD/960P Real Time Recording | 8ch 720P AHD/960P Real Time Recording | 16ch 720P AHD/960P Real Time Recording |
| Hybrid: 2ch D1 Analog + 1ch 1080P IP + 1ch 720P IP | |||
| Pure network: 2*1080P/4*720P/8*960H/1*1080P+1*720P+2*D1 | |||
| Record Quality | 4*720P at 25fps/4*AHD-L at 25fps | 8*960H at 25fps/8*D1 | 16*960H at 25fps/16*D1 |
| Playback quality | 1*720P at 25fps/4*AHD-L at 25fps | 8*D1 at 25fps/1*960H | 16*D1 at 25fps/1*960H |
| Decode capability | 1ch 960P/720P Real Time Playback | 2ch 1080P/ 960P/ 720P Real Time Playback | 2ch 1080P/ 960P/ 720P Real Time Playback |
| Recording Mode | Manual / Timer / Motion | ||
| Audio Input/Output | 1 audio input, 1 audio output (RCA) | ||
| Hard Disk Storage | 1 * SATA HDD (capacity up to 4TB) | ||
| Multiplex Operation | Live display / record / playback / backup / network operations | ||
| Backup Device | USB 2.0 flash drive / USB moving Hard disk / Network | ||
| Network Protocol | Onvif2.0 or above, DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, Alarm center | ||
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet | ||
| Web Interface | Internet Explorer (10 users access simultaneously) Operating System: Windows Vista / XP / 2000,Win 7 |
||
| VGA Interface | Built-in | ||
| Video Loss Detection | Yes | ||
| PTZ Control | 1*RS485 port, Support more than 20 kinds protocols. | ||
| USB Port | 2*USB 2.0 port | ||
| Power Source | 12V/3A DC(±10%) | ||
| Dimension | 1U, 250mm(L)* 240mm(W)* 46mm(H) | ||
| Working Temperature | -10 ~ +55°C | ||
| Working Humidity | 10%- 90% | ||
| Weight | 2.6KG(No HDD) | ||
W What is the Applications of our products?
P Packaging &Shipping,Trade Terms
W Why choosing us?
1. More professional, better quality.
We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.
2. OEM/ ODM service available.
Any your idea on camera we can help you to design and put in solution.
3.Strong Tech support.
* Presale: product consultation and solution design can be provided.
* After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..
3. Strict Quality Control :
All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.
with CE, ROHS, FCC approval.
A ABOUT US
O Our Certifications
O Our Exhibitions & Customers visiting
F FEEDBACK
C Customers from All over the World
F FAQ
Q1. Can I get samples?
A1. Sure. We will appreciate it if you’d like to purchase samples for tests first. For sample order, there is no limit on MOQ. And we will send samples as soon as possible after confirming your payment.
Q2. Are you factory?
A2. Yes we are. We have our own factory, which can help you get factory direct selling products with competitive prices. We always monitor strictly the quality of products before they leave factory.
Q3. How about warranty period? If any problem, can I get enough support?
A3. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item to us to repair or you can keep it and we will send a total new one to you soon. With strong technical team, we can provide life-time and timely technical support whenever there is something wrong with our products.
Q4. Why the shipping cost is so much? How about delivery time?
A4. Before shipment, we will find the most reliable carrier for you to make sure of lowest freight cost and shortest lead time. As for the delivery time, it depends on the order quantity. Normally it would take 3-15 days for one order.
Q5. Can I become your sole distributor in my place?
A6. We appreciate that. And we will discuss about your market situation together and after confirmation we will send you a contract with detailed requirements about sales targets.
Q6. Can you give us enough brochures and ideas as promotion to our customers?
A6. Yes, we’d love to help you promote your business. Welcome to share your idea of your market status and we will give you valuable advice and detailed information you need.
Q7. Can you make OEM products for us?
Q8. Sure we can. Do not worry, we can print your logo both on the products and boxes. But we might ask for MOQ according to the real situation.
