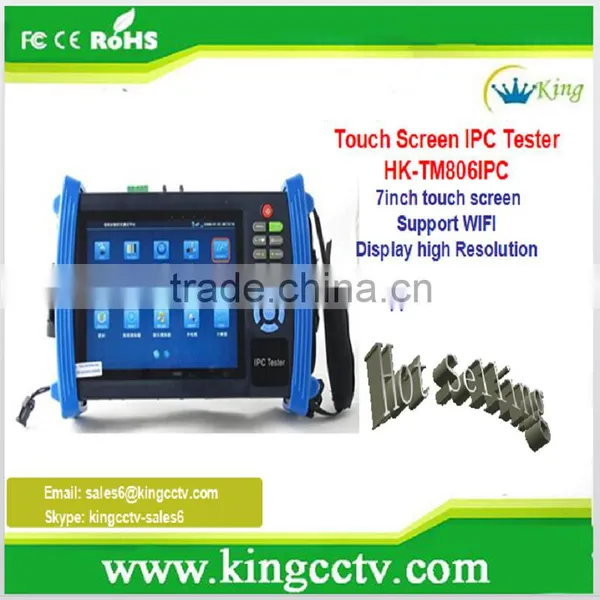

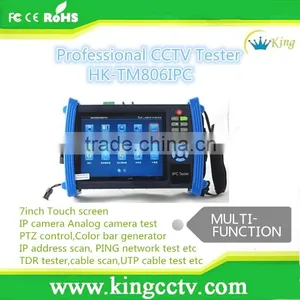

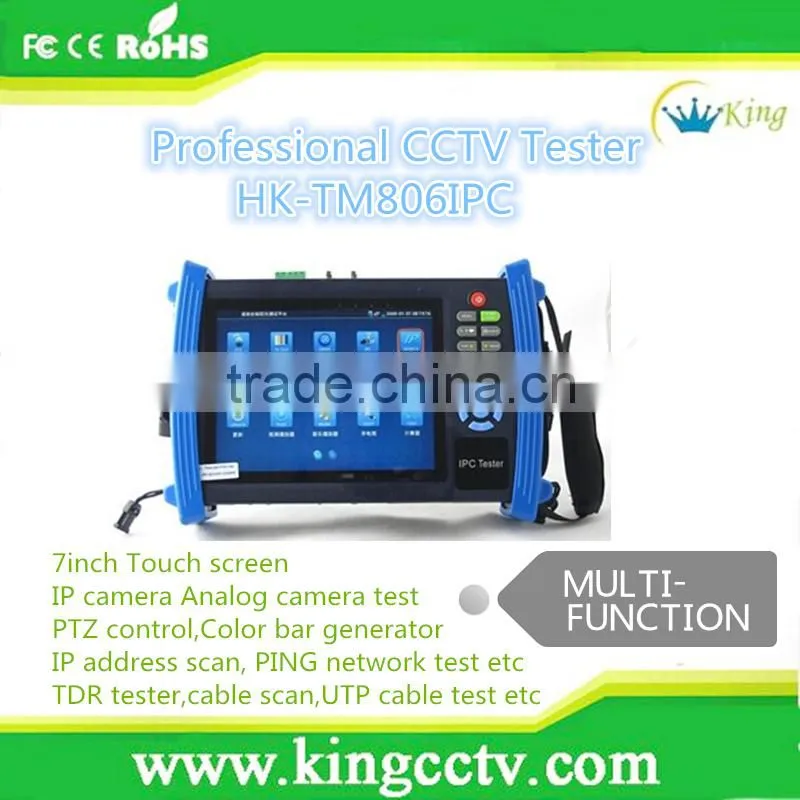

Onvif IP Camera and Analog Camera and PTZ Camera 7 Inch Touch Screen
Professional CCTV Tester
Professional CCTV Tester
Specification-- Professional CCTV Tester
Specifications
| Item | HK-TM806IPC |
| Video test | |
| Display | 7 inch touch screen, 800×600 resolution |
| Communication port | 10/100M adjustable |
| IP camera | Customized:KingCCTV,ONVIF,ACTi,DAHUA(IPC-HFW2100P),HIKVISON(DS-2CD864-E1),SAMSUNG,(SNZ-5200),TIANDY(TD-NC9200S2),Kada(IPC120l),HONEYWELL (HICC-2300T),AIPU(IP5000-BC-13MP/IRS06-13MP),FINE(IPC) etc. |
| Video IN/OUT | 1 channel BNC input&1 channel Output, support PAL /NTSC format |
| Video level meter | Video PEAK level, SYNC level, COLOR BURST measurement |
| DC12V power output | Output temporary 12V power for camera,the current is near 2A |
| Audio input | Test the pickup and other audio equipments on the front-end |
| PTZ Protocol | Support morethan 30 pritocols,such as PELCO-D/P,Samsung, Panasonic,Lilin,Yaan,etc Baud Rate:600-115200bps Support RS232/RS485 |
| Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or Video cable.(red,green,bule,white and black color) |
| UTP Cable tester | Test UTP cable connection status and display in the screen |
| Data Monitor | Captures and analyzes the command data from controlling device |
| Photograph, Video record, And playback | Snapshot,Vodeo record,view the storage file in the SD card |
| Network TESTING | IP address scan,Linkmonitor,PING test,Scan the ID of the PTZcamera quickly |
| Cable scan | Search the cable by the audio signal |
| PoE tester | Display the power supply voltage and capacitance measuring |
| Digital Multimeter* | Voltage,current,resistance and capacitance measuring, Continuity testing,diode testing |
| Optical power meter* | Wavelength(nm):850/1300/1310/1490/1550/1625nm; Measure rang(dBm):-70~+10dBm |
| Visual fault locator* | Test fiber’s bending and breakage(SM and MM fiber) |
| TDR Tester* | Breakpoint and short circuit measurement(BNC cable ,telephone cable) |
| Power Adapter | DC 5V(2.5~3.0A) |
| Battery | Built-in 3.7V Lithium polymer battery,15000mAh |
| Rechargeable | After charging 8-10 hours,working time lasts 16 hours |
| Operation setting | Capacitive touch screen.English/Chinese OSD menu |
| Auto off | 5~60(min) |
| Key tone | On/Off |
| Working Temperature | -10℃~+50℃ |
| Working Humidity | 30%~90% |
| Dimensions | 231mm×172mm×52mm/1.26Kg |
Features-- Professional CCTV Tester
Applications
1) IP Camera Tester 2) Find out the other end of the cable in security maintenance and network engineering 3) CCTV system installation and maintenance 4) Dome camera and All in one camera testing 5) The CCTV transmitting channel testing 6) PTZ controller
Features
- 7inch Touch screen
- IP camera Analog camera test
- PTZ control, Color bar generator
- IP address scan, PING network test etc.
- TDR tester, cable scan, UTP cable test etc.
Real shot of Professional CCTV Tester
Fastest Delivery-- Professional CCTV Tester
Considerate Service-- Professional CCTV Tester
OEM and ODM are both acceptable
Sample order is acceptable
Payment terms: Paypal, T/T, Western Union
Warranty: 2 YEARS
Certification: CE, FCC, RoHS
Lead time: 3-25 days since purchasing date
Note: In case of not stock, you can do 30% as deposit, and pay 70% when ready.
Adantage-- Professional CCTV Tester
1.Our product line includes CCTV Camera, IP Camera, PTZ Camera, Network Camera, AHD Camera, NVR, DVR and all kinds of accessories.
2. All of our products are factory direct selling. With our own factory, we strictly monitor the price and quality in order to meet customers's requirements.
3. We have accomplished the following big projects:
- CCTV Surveillance for Greece National Park
- CCTV Surveillance for Jewish Historical Museum Amsterdam
- CCTV Surveillance for Barranquilla Harbour in Colombia
- CCTV Surveillance for Shell in Japan
Expert--Provide Wireless Solution
Professional CCTV Tester
Shenzhen KingCCTV Technology Co., Ltd. is a high technology enterprise, engaged in software & hardware development, manufacturing and sales for security & safe products.
Our factory is in Yindafeng Industry Park of Longgang District of Shenzhen. As our business extended, in order to provide more products and better service, we established a Greece Branch on January of 2008, and established a USA Branch in Senoia GA on October of 2012. We mainly sell, develop and manufacture DVR, HDVR, NVR, CCTV Camera, IP Camera, PTZ camera, etc.
Due to the hard work of all staffs in KingCCTV, and the continuous supports from our extensive customers, we have already achieved outstanding accomplishments in the past years. Here we deeply appreciate that it's only the customer's success which makes KingCCTV successful. So we would like to cooperate with you in the long run and create a brilliant future for all of us.
Welcome to vist our factory anytime you like
Professional CCTV Tester
Shenzhen KingCCTV Technology Co.,Ltd
Overseas Marketing Sales
Edison Tang
Mail: sales6(at)
Skype:kingcctv-sales6
Whatsapp:18320821085
WeChat:281481464
Welcome to inquiry
Professional CCTV Tester
(1)What is your MOQ?
Edison: Dear, for sample order, there is no MOQ. From second order, at least 50 pcs per order.
(2)How about delivery time?
Edison: We always make the shipment by DHL,UPS,Fedex. About 3-25 business days after confirming your payment.
(3)Payment terms?
Edison: We accept T/T, Paypal, Western Union payment.
(4)Can I be your exclusive representative?
Edison: Sure, dear. You are welcome to be our agents in your market. We have official contract to sign. Till now, we have sold our products to more than 40 countries.
(5)How about warranty?
Edison: All of our products are of 2 YEAR warranty.
(6)Can you do OEM/ODM?
Edison: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your own packaging according to your requriements.
