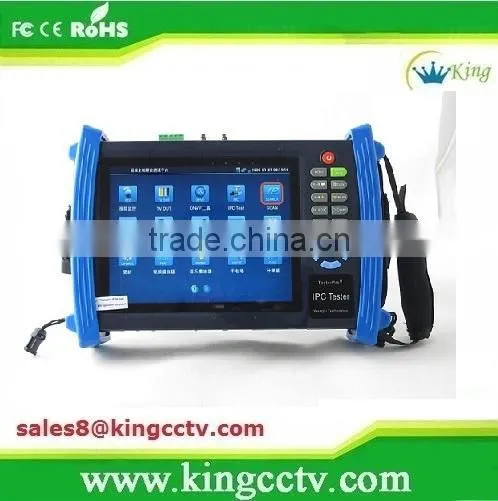

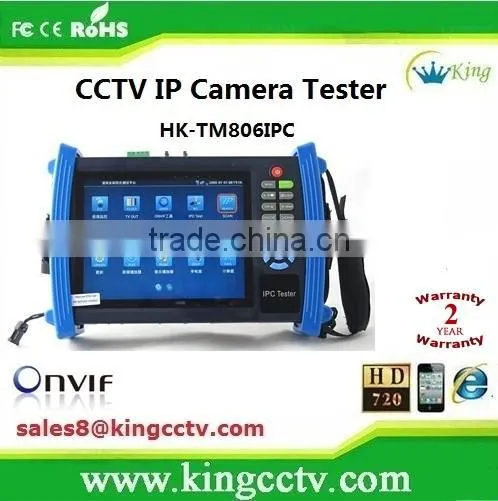

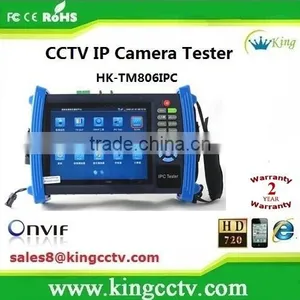

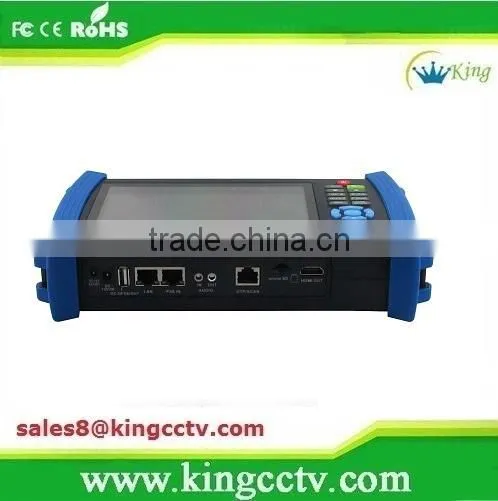

cctv video tester wifi ipc ptz tester cctv security tester IP ptz camera tester 7 inch touch screen HK-TM806IPC
HK-TM806IPC
* 7touch screen IP camera tester;
* IPC CCTV security tester,test HD network camera ,ONVIF HD camera;
* Video record storage and playback;
* Support Analog camera and PTZ control;
* DC12V 2A power output for camera, Audio testing;
* Built in network testing tools
* With WIFI function,Can test the Wifi IPC
* Built-in 3.7V Lithium Polymer Battery support 16 hours working time."
FEATURES
7inch Touch screen
IP camera Analog camera test
PTZ control,Color bar generator
IP address scan,PING network test etc.
TDR tester,cable scan,UTP cable test etc.
SPECIFICATIONS
Model |
HK-TM806IPC |
Display |
7 inch touch screen, 800x600 resolution |
Communication port |
10/100M adjustable |
IP camera |
Customized:KingCCTV,ONVIF,ACTi,DAHUA(IPC-HFW2100P),HIKVISON(DS-2CD864-E1),SAMSUNG,(SNZ-5200),TIANDY(TD-NC9200S2),Kada(IPC120l),HONEYWELL (HICC-2300T),AIPU(IP5000-BC-13MP/IRS06-13MP),FINE(IPC) etc. |
Video in/out |
1 channel BNC input&1 channel Output, support PAL /NTSC format |
Video level meter |
Video PEAK level, SYNC level, COLOR BURST measurement |
DC12V power output |
Output temporary 12V power for camera,the current is near 2A |
Audio input |
Test the pickup and other audio equipments on the front-end |
PTZ Protocol |
Support morethan 30 pritocols,such as PELCO-D/P,Samsung, Panasonic,Lilin,Yaan,etc Baud Rate:600-115200bps Support RS232/RS485 |
Color bar generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or Video cable.(red,green,bule,white and black color) |
UTP Cable tester |
Test UTP cable connection status and display in the screen |
Data Monitor |
Captures and analyzes the command data from controlling device |
|
Photograph, Video record, And playback |
Snapshot,Vodeo record,view the storage file in the SD card |
Network TESTING |
IP address scan,Linkmonitor,PING test,Scan the ID of the PTZcamera quickly |
Cable scan |
Search the cable by the audio signal |
PoE tester |
Display the power supply voltage and capacitance measuring |
Digital Multimeter* |
Voltage,current,resistance and capacitance measuring, Continuity testing,diode testing |
Optical power meter* |
Wavelength(nm):850/1300/1310/1490/1550/1625nm Measure rang(dBm):-70~+10dBm |
Visual fault locator* |
Test fiber’s bending and breakage(SM and MM fiber) |
TDR Tester* |
Breakpoint and short circuit measurement(BNC cable ,telephone cable) |
POWER | |
Power Adapter |
DC 5V(2.5~3.0A) |
Battery |
Built-in 3.7V Lithium polymer battery,15000mAh |
Rechargeable |
After charging 8-10 hours,working time lasts 16 hours |
Parameter | |
Operation setting |
Capacitive touch screen.English/Chinese OSD menu |
Auto off |
5~60(min) |
Key tone |
On/Off |
General | |
Working Temperature |
-10 ~+50 |
Working Humidity |
30%~90% |
Dimensions(mm) |
231mmx172mmx52/1.26kg |
Remark: * means the function is optional
Application:
1.IP Camera Tester
2.Find out the other end of the cable in security maintenance and network engineering
3.CCTV system installation and maintenance
4.Dome camera and All in one camera testing
5.The CCTV transmitting channel testing
6.PTZ controller
