Home > Computer Products > CPU > AMD M620 TMM620DBO23GQ Notebook CPU General M120 M320 M600 M640 M660

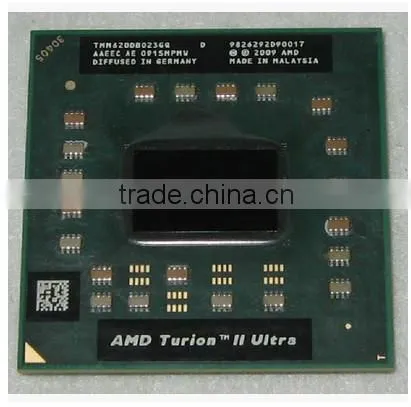

AMD M620 TMM620DBO23GQ Notebook CPU General M120 M320 M600 M640 M660
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Used
Application:
Laptop
Processor Brand:
AMD
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Original Top Ultimate I7-940 xm SLBSC Quad-core 2.1 G 8 m Laptop CPUUS$ 285 - 285MOQ: 1 -
New AMD Turion II Ultra M520 TMM520DB022GQ Notebook CPU 2.3 GNegotiableMOQ: 1
-
AMD CPU TMDTL56HAX5CT TL56 Laptop Original Version 638 NeedleNegotiableMOQ: 1
-
INTEL Notebook CPU PM730 1.6 2 m 533 SL86G Original Official Version Notebook CPUUS$ 1 - 195MOQ: 1 Piece
-
INTEL Original Spot I3 Three Generations of I3-3227 - u SR0XF BGA Ball Notebook CPUUS$ 50 - 55MOQ: 1 Piece
Products Status
Used
Application
Laptop
Processor Brand
AMD
Type
Dual-Core
Processor Type
Other
L2 Cache
Other
Socket Type
Other, LGA1166
Main Frequency
2.5GHz
Brand Name
AMD
Place of Origin
China
AMD Turion II Ultra Dual-Core Mobile M620 specifications
| General information | |
| Type | CPU / Microprocessor |
| Market segment | Mobile |
| Family | AMD Turion II Ultra Dual-Core Mobile |
| Model number ? | M620 |
| CPU part number |
|
| Stepping codes | AAEEC AE CAEEC AE NAEIC AE |
| Frequency ? | 2500 MHz |
| Bus speed ? | One 1800 MHz 16-bit HyperTransport link (3.6 GT/s) |
| Clock multiplier ? | 12.5 |
| Package | 638-pin lidless organic micro Pin Grid Array (UOL638) |
| AMD Package number | 30405 |
| Socket | Socket S1 (S1g3) |
| Size | 1.38" x 1.38" / 3.5cm x 3.5cm |
| Weight | 0.2oz / 6.5g (by specifications) |
| Introduction date | Sep 10, 2009 |
| End-of-Life date | Last order date is end of 1st quarter 2011 |
| Architecture / Microarchitecture | |
| Microarchitecture | K10 |
| Platform | Tigris |
| Processor core ? | Caspian |
| Core stepping ? | DA-C2 |
| CPUID | 100F62 |
| Manufacturing process | 0.045 micron silicon-on-insulator (SOI) technology |
| Data width | 64 bit |
| The number of cores | 2 |
| The number of threads | 2 |
| Floating Point Unit | Integrated, 128-bit wide |
| Level 1 cache size ? | 2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches |
| Level 2 cache size ? | 2 x 1 MB 16-way set associative caches |
| Level 3 cache size | None |
| Multiprocessing | Uniprocessor |
| Features |
|
| Low power features | PowerNow! 2.0 |
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller | The number of controllers: 1 Memory channels: 2 Channel width (bits): 64 Supported memory: DDR2-800 Maximum memory bandwidth (GB/s): 12.8 |
| Other peripherals | HyperTransport technology 3.0 |
| Electrical / Thermal parameters | |
| Thermal Design Power ? | 35 Watt |
FAQ
Q: I have an AMD M620 microprocessor. Is it possible to upgrade it?
A: Probably yes. Processor compatibility is determined by your motherboard. Please check website for CPU support list for your board.
Turion II Ultra Dual-Core Mobile M620 Overclocking
Sorry, we do not have overclocking data for this AMD Turion II Ultra Dual-Core Mobile processor at this time.
CPUs, related to AMD Turion II Ultra Dual-Core Mobile M620
| Model | Cores / Threads |
Frequency | L2 cache |
TDP | Features | |
|---|---|---|---|---|---|---|
| AMD Turion II Ultra Dual-Core Mobile family, Socket S1 (S1g3) | ||||||
| Turion II Ultra Dual-Core Mobile M600 | 2 / 2 | 2.4 GHz | 2 MB | 35W | > | |
| Turion II Ultra Dual-Core Mobile M620 | 2 / 2 | 2.5 GHz | 2 MB | 35W | ||
| Turion II Ultra Dual-Core Mobile M640 | 2 / 2 | 2.6 GHz | 2 MB | 35W | > | |
| Turion II Ultra Dual-Core Mobile M660 | 2 / 2 | 2.7 GHz | 2 MB | 35W | > | |
| Other families, K10 micro-architecture, Socket S1 (S1g3) | ||||||
| Sempron Mobile M100 | 1 / 1 | 2 GHz | 512 KB | 25W | > | |
| Sempron Mobile M120 | 1 / 1 | 2.1 GHz | 512 KB | 25W | > | |
| Sempron Mobile M140 | 1 / 1 | 2.2 GHz | 512 KB | 25W | > | |
| Athlon II M320 | 2 / 2 | 2.1 GHz | 1 MB | 35W | > | |
| Athlon II M340 | 2 / 2 | 2.2 GHz | 1 MB | 35W | > | |
| Turion II M500 | 2 / 2 | 2.2 GHz | 1 MB | 35W | > | |
| Athlon II M360 | 2 / 2 | 2.3 GHz | 1 MB | 35W | > | |
| Turion II M520 | 2 / 2 | 2.3 GHz | 1 MB | 35W | > | |
| Turion II M540 | 2 / 2 | 2.4 GHz | 1 MB | 35W | > | |
| Turion II M560 | 2 / 2 | 2.5 GHz | 1 MB | 35W | > | |
