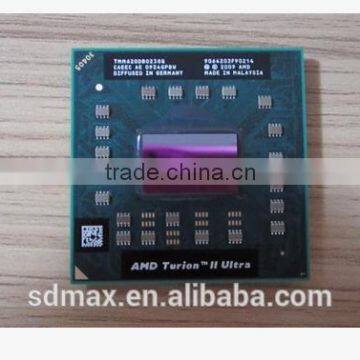

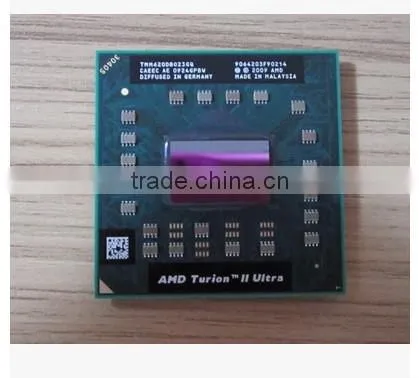

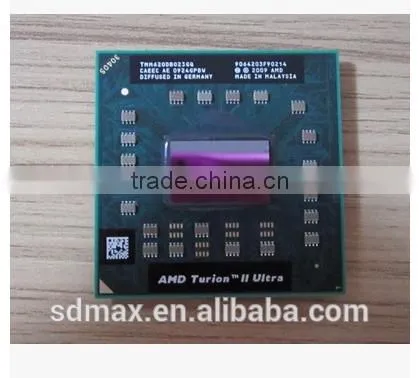

Help CenterNew AMD Turion II Ultra M520 TMM520DB022GQ Notebook CPU 2.3 G
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Used
Application:
Laptop
Processor Brand:
AMD
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AMD CPU TMDTL56HAX5CT TL56 Laptop Original Version 638 NeedleNegotiableMOQ: 1 -
INTEL Notebook CPU PM730 1.6 2 m 533 SL86G Original Official Version Notebook CPUUS$ 1 - 195MOQ: 1 Piece
-
INTEL Original Spot I3 Three Generations of I3-3227 - u SR0XF BGA Ball Notebook CPUUS$ 50 - 55MOQ: 1 Piece
-
Laptops I7 CPU - 720 qm 940 840 820 7400 xm 4 Nuclear HM55 PlatformUS$ 60 - 66MOQ: 1 Piece
-
Intel Core I5-4210u SR1EF Original BGA Notebook CPU SuperUS$ 152 - 160MOQ: 315 Cases
Products Status
Used
Application
Laptop
Processor Brand
AMD
Type
Dual-Core
Processor Type
Other
L2 Cache
Other
Socket Type
LGA 775
Main Frequency
2.3GHz
Brand Name
AMD
Place of Origin
China
AMD Turion II M520 specifications
| General information | |
| Type | CPU / Microprocessor |
| Market segment | Mobile |
| Family | AMD Turion II Dual-Core Mobile |
| Model number ? | M520 |
| CPU part number |
|
| Stepping codes | AAEEC AE NAEIC AE |
| Frequency ? | 2300 MHz |
| Bus speed ? | One 1800 MHz 16-bit HyperTransport link (3.6 GT/s) |
| Clock multiplier ? | 11.5 |
| Package | 638-pin lidless organic micro Pin Grid Array (UOL638) |
| AMD Package number | 30405 |
| Socket | Socket S1 (S1g3) |
| Size | 1.38" x 1.38" / 3.5cm x 3.5cm |
| Weight | 0.2oz / 6.5g (by specifications) |
| Introduction date | Sep 10, 2009 |
| End-of-Life date | Last order date is end of 1st quarter 2011 |
| Architecture / Microarchitecture | |
| Microarchitecture | K10 |
| Platform | Tigris |
| Processor core ? | Caspian |
| Core stepping ? | DA-C2 |
| CPUID | 100F62 |
| Manufacturing process | 0.045 micron silicon-on-insulator (SOI) technology |
| Data width | 64 bit |
| The number of cores | 2 |
| The number of threads | 2 |
| Floating Point Unit | Integrated, 128-bit wide |
| Level 1 cache size ? | 2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches |
| Level 2 cache size ? | 2 x 512 KB 16-way set associative caches |
| Level 3 cache size | None |
| Multiprocessing | Uniprocessor |
| Features |
|
| Low power features | PowerNow! 2.0 |
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller | The number of controllers: 1 Memory channels: 2 Channel width (bits): 64 Supported memory: DDR2-800 Maximum memory bandwidth (GB/s): 12.8 |
| Other peripherals | HyperTransport technology 3.0 |
| Electrical / Thermal parameters | |
| Thermal Design Power ? | 35 Watt |
FAQ
Q: Can I upgrade my M520 CPU?
A: Probably yes. Processor compatibility is determined by your motherboard. Please check website for CPU support list for your board.
Turion II M520 Overclocking
Sorry, we do not have overclocking data for this microprocessor at this time.
CPUs, related to AMD Turion II M520
| Model | Cores / Threads |
Frequency | L2 cache |
TDP | Features | |
|---|---|---|---|---|---|---|
| AMD Turion II Dual-Core Mobile family, Socket S1 (S1g3) | ||||||
| Turion II M500 | 2 / 2 | 2.2 GHz | 1 MB | 35W | > | |
| Turion II M520 | 2 / 2 | 2.3 GHz | 1 MB | 35W | ||
| Turion II M540 | 2 / 2 | 2.4 GHz | 1 MB | 35W | > | |
| Turion II M560 | 2 / 2 | 2.5 GHz | 1 MB | 35W | > | |
| AMD Turion II Dual-Core Mobile family, K10 micro-architecture, Other sockets | ||||||
| Turion II P520 | 2 / 2 | 2.3 GHz | 2 MB | 25W | > | |
| Turion II P540 | 2 / 2 | 2.4 GHz | 2 MB | 25W | > | |
| Turion II N530 | 2 / 2 | 2.5 GHz | 2 MB | 35W | > | |
| Turion II P560 | 2 / 2 | 2.5 GHz | 2 MB | 25W | > | |
| Turion II N550 | 2 / 2 | 2.6 GHz | 2 MB | 35W | > | |
| Turion II N570 | 2 / 2 | 2.7 GHz | 2 MB | 35W | > | |
| Other families, K10 micro-architecture, Socket S1 (S1g3) | ||||||
| Sempron Mobile M100 | 1 / 1 | 2 GHz | 512 KB | 25W | > | |
| Sempron Mobile M120 | 1 / 1 | 2.1 GHz | 512 KB | 25W | > | |
| Sempron Mobile M140 | 1 / 1 | 2.2 GHz | 512 KB | 25W | > | |
| Athlon II M300 | 2 / 2 | 2 GHz | 1 MB | 35W | > | |
| Athlon II M320 | 2 / 2 | 2.1 GHz | 1 MB | 35W | > | |
| Athlon II M340 | 2 / 2 | 2.2 GHz | 1 MB | 35W | > | |
| Athlon II M360 | 2 / 2 | 2.3 GHz | 1 MB | 35W | > | |
| Turion II Ultra Dual-Core Mobile M620 | 2 / 2 | 2.5 GHz | 2 MB | 35W | > | |
| Turion II Ultra Dual-Core Mobile M640 | 2 / 2 | 2.6 GHz | 2 MB | 35W | > | |
| Turion II Ultra Dual-Core Mobile M660 | 2 / 2 | 2.7 GHz | 2 MB | 35W | > | |
