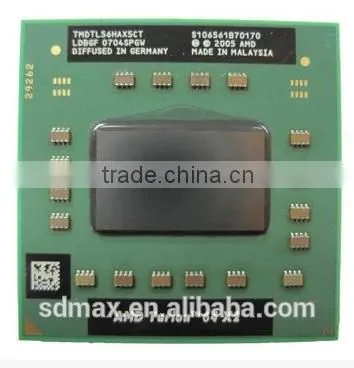

AMD CPU TMDTL56HAX5CT TL56 laptop original version 638 needle

Name: AMD CPU TMDTL56HAX5CT TL56 laptop original version 638 needle
Brand: AMD
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 0 per Month
Payment Terms:D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Products Status:	Used	Application:	Laptop	Type:	Dual-Core
Processor Type:	Other	L2 Cache:	Other, ≤ 1MB	Socket Type:	LGA 775
Main Frequency:	2.3GHz	Brand Name:	AMD	Model Number:	FX-8130P
Place of Origin:	China

Product Description

AMD Turion 64 X2 TL-56 specifications

General information

Type	CPU / Microprocessor
Market segment	Mobile
Family	AMD Turion 64 X2 Mobile technology
Model number ?	TL-56
CPU part numbers	TMDTL56HAX5CT is an OEM/tray microprocessor TMDTL56CTWOF is a boxed microprocessor
Stepping codes	ADB5F LDB5F LDBDF LDBGF LDBIF LEDFF NEDGF
Frequency ?	1800 MHz
Bus speed ?	One 800 MHz 16-bit HyperTransport link (1.6 GT/s)
Clock multiplier ?	9
Package	638-pin lidless micro-PGA
AMD Package number	29262
Socket	Socket S1 (S1g1)
Size	1.38" x 1.38" / 3.5cm x 3.5cm
Introduction date	May 17, 2006
Price at introduction	$263

Architecture / Microarchitecture

Microarchitecture	K8
Processor core ?	Trinidad
Core stepping ?	BH-F2
CPUID	40F82
Manufacturing process	0.09 micron silicon-on-insulator (SOI) technology 153.8 million transistors
Die size	172.1mm²
Data width	64 bit
The number of cores	2
The number of threads	2
Floating Point Unit	Integrated
Level 1 cache size ?	2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches
Level 2 cache size ?	2 x 512 KB 16-way set associative exclusive caches
Cache latency	3 (L1 cache)
Physical memory	1 TB
Virtual memory	256 TB
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 AMD64 / AMD 64-bit technology ? EVP / Enhanced Virus Protection ? AMD-V / AMD Virtualization technology
Low power features	PowerNow! Deeper Sleep state ?

Integrated peripherals / components

Integrated graphics	None
Memory controller	The number of controllers: 1 Memory channels: 2 Channel width (bits): 64 Supported memory: DDR2-400, DDR2-533, DDR2-667 Maximum memory bandwidth (GB/s): 10.7
Other peripherals	HyperTransport interface (1 link)

Electrical / Thermal parameters

V core ?	1.075V / 1.1V
Maximum operating temperature ?	95°C
Thermal Design Power ?	33 Watt

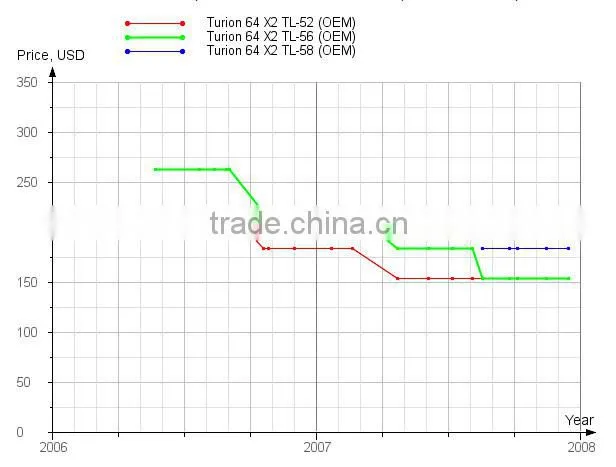

Historical price chart

The chart below shows official prices of AMD Turion 64 X2 TL-52, TL-56 and TL-58 processors:

FAQ

Q: Can I upgrade my AMD TL-56 microprocessor?

A: Probably yes. CPU compatibility is determined by your motherboard. Please see resource for CPU support list for your board.

Turion 64 X2 TL-56 Overclocking

Sorry, we do not have overclocking data for this AMD Turion 64 X2 Mobile technology processor at this time.

CPUs, related to AMD Turion 64 X2 TL-56 (rev. F2)

Model	Cores / Threads	Frequency	L2 cache	TDP	Features
AMD Turion 64 X2 Mobile technology family, Socket S1 (S1g1)
Turion 64 X2 TL-56 (rev. F2)	2 / 2	1.8 GHz	1 MB	33W	VT
Turion 64 X2 TL-58 (rev. G1)	2 / 2	1.9 GHz	1 MB	31W	VT	>
Turion 64 X2 TL-58 (rev. F2)	2 / 2	1.9 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-58 (rev. G2)	2 / 2	1.9 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-60 (rev. F2)	2 / 2	2 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-60 (rev. G2)	2 / 2	2 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-60 (rev. G1)	2 / 2	2 GHz	1 MB	31W	VT	>
Turion 64 X2 TL-62 (rev. F2)	2 / 2	2.1 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-62 (rev. G2)	2 / 2	2.1 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-64 (rev. G2)	2 / 2	2.2 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-64 (rev. G1)	2 / 2	2.2 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-64 (rev. F2)	2 / 2	2.2 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-66 (rev. G2)	2 / 2	2.3 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-66 (rev. G1)	2 / 2	2.3 GHz	1 MB	35W	VT	>
Turion 64 X2 TL-68	2 / 2	2.4 GHz	1 MB	35W	VT	>
AMD Turion 64 X2 Mobile technology family, K8 micro-architecture, Other sockets
Turion 64 X2 RM-75	2 / 2	2.2 GHz	1 MB	35W	VT	>
Turion 64 X2 RM-76	2 / 2	2.3 GHz	1 MB	35W	VT	>
Turion 64 X2 RM-77	2 / 2	2.3 GHz	1 MB	35W	VT	>
Other families, K8 micro-architecture, Socket S1 (S1g1)
Athlon 64 TF-38	1 / 1	2.2 GHz	256 KB	31W	VT	>
Mobile Sempron 3800+ (rev. G2)	1 / 1	2.2 GHz	256 KB	31W	VT	>
Mobile Sempron 4000+	1 / 1	2.2 GHz	512 KB	31W	VT	>
Turion 64 MK-38	1 / 1	2.2 GHz	512 KB	31W	VT	>
Athlon 64 X2 TK-55 (rev. G1)	2 / 2	1.8 GHz	512 KB	31W	VT	>
Athlon 64 X2 TK-57	2 / 2	1.9 GHz	512 KB	31W	VT	>
