Home > Computer Products > CPU > Official Version AMD Athlon X2 Athlon TK - S1 Laptop CPU AMDTK57HAX4DM 57 638 Needle

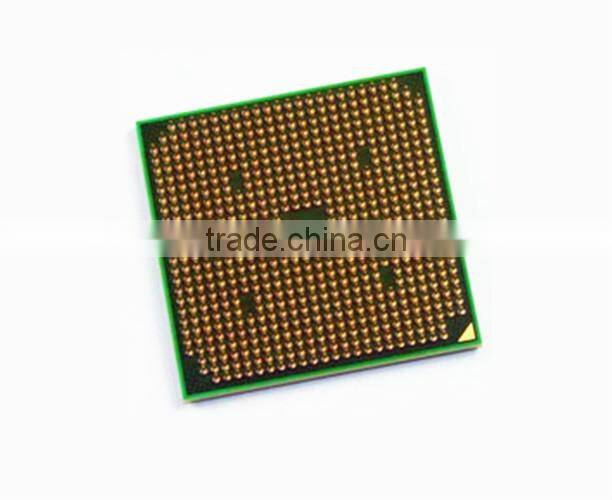

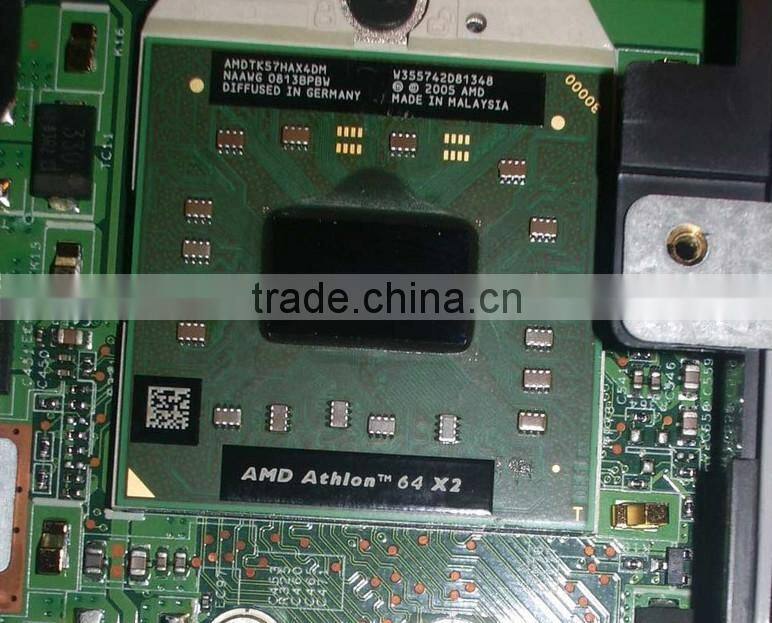

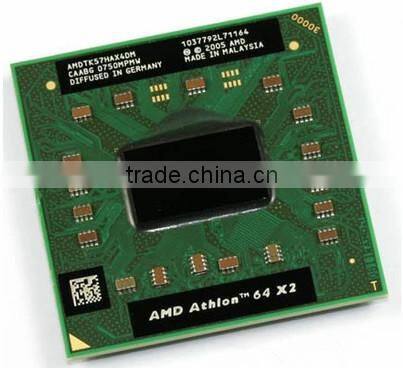

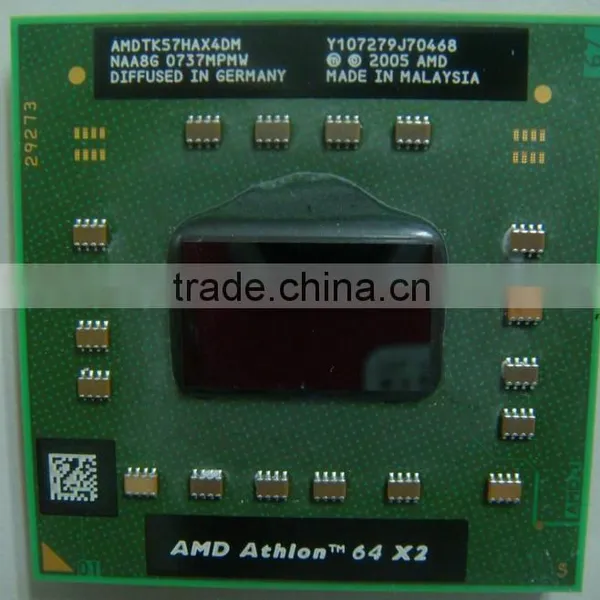

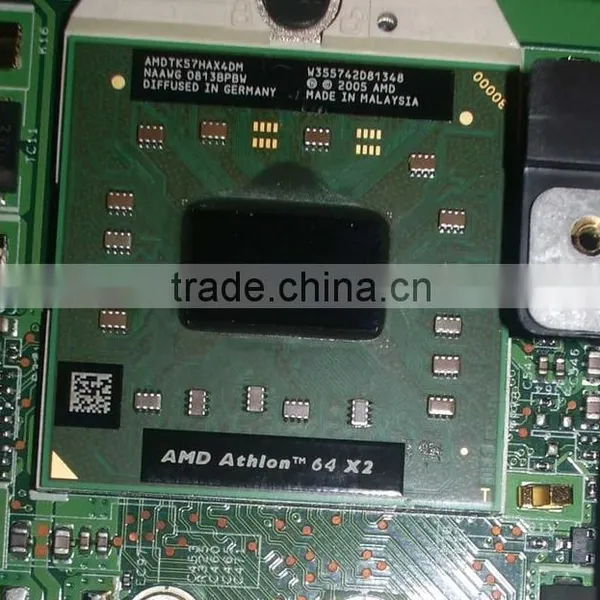

Official Version AMD Athlon X2 Athlon TK - S1 Laptop CPU AMDTK57HAX4DM 57 638 Needle
US$ 3.2 - 3.2
MOQ: 1 set
Key Specifications
Get Latest Price
Products Status:
Used
Application:
Desktop
Processor Brand:
AMD
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EME350GBB22GT EM300GBB22GV New and Original AMD BGA CPUUS$ 13 - 13MOQ: 10 Pieces -
Beta ZM14E038X4342 AMD CPU ZM14E038X4342 1.4 G 125NegotiableMOQ: 1 Piece
-
AMD M620 TMM620DBO23GQ Notebook CPU General M120 M320 M600 M640 M660NegotiableMOQ: 1
-
New Original Top Ultimate I7-940 xm SLBSC Quad-core 2.1 G 8 m Laptop CPUUS$ 285 - 285MOQ: 1
-
New AMD Turion II Ultra M520 TMM520DB022GQ Notebook CPU 2.3 GNegotiableMOQ: 1
Products Status
Used
Application
Desktop
Processor Brand
AMD
Processor Type
Other
L2 Cache
Other, ≤ 1MB
Socket Type
Socket AM3
Main Frequency
1.9GHz
Model Number
Opteron 852
AMD Athlon 64 X2 TK-57 specifications
| General information | |
| Type | CPU / Microprocessor |
| Market segment | Mobile |
| Family | AMD Athlon 64 X2 for Notebooks |
| Model number ? | TK-57 |
| CPU part number |
|
| Stepping codes | AAA8G CAABG NAA8G NAABG NAAWG |
| Frequency ? | 1900 MHz |
| Clock multiplier ? | 9.5 |
| Package | 638-pin lidless micro-PGA |
| AMD Package numbers | 29273, 30000 |
| Socket | Socket S1 (S1g1) |
| Size | 1.38" x 1.38" / 3.5cm x 3.5cm |
| Architecture / Microarchitecture | |
| Microarchitecture | K8 |
| Processor core ? | Tyler |
| Core stepping ? | BH-G2 |
| CPUID | 60F82 |
| Manufacturing process | 0.065 micron silicon-on-insulator (SOI) technology |
| Data width | 64 bit |
| The number of cores | 2 |
| The number of threads | 2 |
| Floating Point Unit | Integrated |
| Level 1 cache size ? | 2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches |
| Level 2 cache size ? | 2 x 256 KB 16-way set associative exclusive caches |
| Physical memory | 1 TB |
| Virtual memory | 256 TB |
| Multiprocessing | Uniprocessor |
| Features |
|
| Low power features |
|
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller | The number of controllers: 1 Memory channels: 2 Supported memory: DDR2 |
| Other peripherals | One 16-bit HyperTransport link with speeds up to 800 MHz |
| Electrical / Thermal parameters | |
| Maximum operating temperature ? | 95°C |
| Thermal Design Power ? | 31 Watt |
Historical price chart
The chart below shows official prices of AMD Athlon 64 X2 TK-55 and TK-57 processors:
FAQ
Q: I have an AMD TK-57 processor. Can I upgrade it?
A: Probably yes. CPU compatibility is determined by your motherboard. Please see resource for CPU support list for your board.
Integer performance
| Part number | Result | |
|---|---|---|
Intel Pentium T2330 ? | 108.6% | |
Intel Core 2 Duo T5200 ? | 106.5% | |
AMD Turion 64 X2 2GHz 1MD2000HUX508 ? | 105.3% | |
AMD Turion 64 X2 TL-60 (rev. G2) ? | 105.3% | |
Intel Core 2 Duo T5250 ? | 101.8% | |
AMD Athlon 64 X2 TK-57 ? | 100% | |
AMD Turion 64 X2 TL-58 (rev. G1) ? | 100% | |
Intel Pentium T2310 ? | 99.5% | |
Intel Core 2 Duo T5270 ? | 95% | |
Intel Pentium T2130 ? | 94.8% | |
AMD Athlon 64 X2 TK-55 (rev. G1) ? | 94.7% | |
AMD Turion 64 X2 TL-56 (rev. G1) ? | 94.7% |
Floating Point performance
| Part number | Result | |
|---|---|---|
Intel Core 2 Duo T6400 ? | 107.1% | |
AMD Turion 64 X2 2GHz ZMD2000HAX559 ? | 105.4% | |
AMD Turion 64 X2 2GHz 1MD2000HUX508 ? | 105.3% | |
AMD Turion 64 X2 TL-60 (rev. G2) ? | 105.3% | |
Intel Pentium P6000 ? | 105.3% | |
AMD Athlon 64 X2 TK-57 ? | 100% | |
AMD Turion 64 X2 TL-58 (rev. G1) ? | 100% | |
Intel Core 2 Duo T7200 (Socket M) ? | 99.4% | |
Intel Core 2 Duo T5750 ? | 99.4% | |
Intel Pentium T3200 ? | 99.1% | |
Intel Core 2 Duo T5800 ? | 99.1% | |
Intel Core 2 Duo T7300 (Socket P) ? | 99% |
CPUs, related to AMD Athlon 64 X2 TK-57
| Model | Cores / Threads | Frequency | L2 cache | TDP | Features | |
|---|---|---|---|---|---|---|
| AMD Athlon 64 X2 for Notebooks family, Socket S1 (S1g1) | ||||||
| Athlon 64 X2 L310 | 2 / 2 | 1.2 GHz | 1 MB | 13W | VT | > |
| Athlon 64 X2 TK-42 | 2 / 2 | 1.6 GHz | 1 MB | 20W | VT | > |
| Athlon 64 X2 TK-53 | 2 / 2 | 1.7 GHz | 512 KB | 31W | VT | > |
| Athlon 64 X2 TK-55 (rev. F2) | 2 / 2 | 1.8 GHz | 512 KB | 35W | VT | > |
| Athlon 64 X2 TK-55 (rev. G1) | 2 / 2 | 1.8 GHz | 512 KB | 31W | VT | > |
| Athlon 64 X2 TK-57 | 2 / 2 | 1.9 GHz | 512 KB | 31W | VT | |
| AMD Athlon 64 X2 for Notebooks family, K8 micro-architecture, Other sockets | ||||||
| Athlon 64 X2 QL-60 | 2 / 2 | 1.9 GHz | 1 MB | 35W | VT | > |
| Athlon 64 X2 QL-62 | 2 / 2 | 2 GHz | 1 MB | 35W | VT | > |
| Athlon 64 X2 QL-64 | 2 / 2 | 2.1 GHz | 1 MB | 35W | VT | > |
| Athlon 64 X2 QL-65 | 2 / 2 | 2.1 GHz | 1 MB | 35W | VT | > |
| Athlon 64 X2 QL-66 | 2 / 2 | 2.2 GHz | 1 MB | 35W | VT | > |
| Athlon 64 X2 QL-67 | 2 / 2 | 2.2 GHz | 1 MB | 35W | VT | > |
| Other families, K8 micro-architecture, Socket S1 (S1g1) | ||||||
| Athlon 64 TF-36 | 1 / 1 | 2 GHz | 256 KB | 25W | VT | > |
| Turion 64 MK-36 | 1 / 1 | 2 GHz | 512 KB | 31W | VT | > |
| Athlon 64 TF-38 | 1 / 1 | 2.2 GHz | 256 KB | 31W | VT | > |
| Mobile Sempron 3800+ (rev. G2) | 1 / 1 | 2.2 GHz | 256 KB | 31W | VT | > |
| Mobile Sempron 3800+ (rev. F2) | 1 / 1 | 2.2 GHz | 256 KB | 31W | VT | > |
| Mobile Sempron 4000+ | 1 / 1 | 2.2 GHz | 512 KB | 31W | VT | > |
| Turion 64 MK-38 | 1 / 1 | 2.2 GHz | 512 KB | 31W | VT | > |
| Turion 64 X2 TL-66 (rev. G1) | 2 / 2 | 2.3 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-66 (rev. G2) | 2 / 2 | 2.3 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-68 | 2 / 2 | 2.4 GHz | 1 MB | 35W | VT | > |
