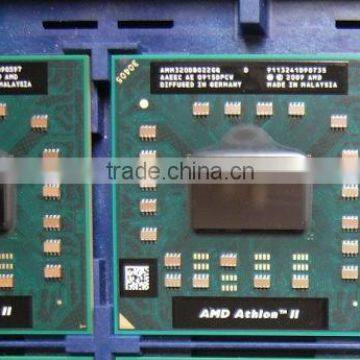

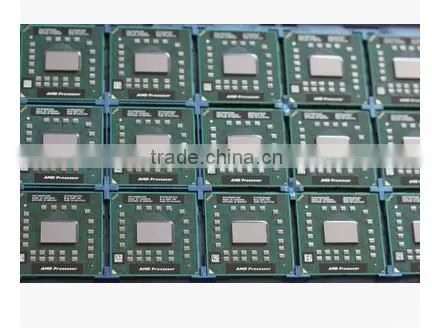

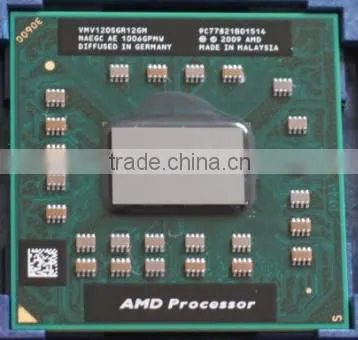

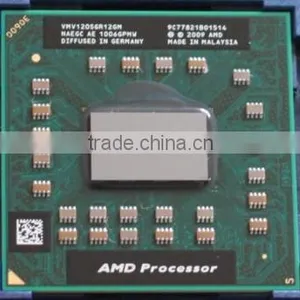

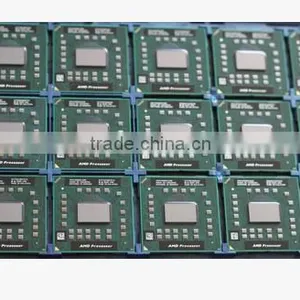

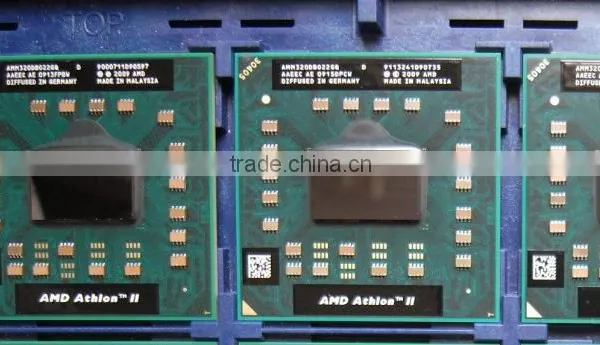

AMD AMM300DB022GQ M300 notebook CPU original official version

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 0 per Month
Payment TermsD/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Laptop
Processor Brand	Intel	Type	Dual-Core
Processor Type	Intel Core	L2 Cache	Other
Socket Type	Other	Main Frequency	2.0GHz
Brand Name	Intel	Model Number	A4-3300
Place of Origin	China

Product Description

AMD A4-3300M specifications

General information

Type	CPU / Microprocessor
Market segment	Mobile
Family	AMD A4-Series for Notebooks
Model number ?	A4-3300M
CPU part number	AM3300DDX23GX is an OEM/tray microprocessor
Frequency ?	1900 MHz
Turbo frequency	2500 MHz
Package	722-pin organic lidless micro Pin Grid Array (UOL722)
AMD Package number	31013
Socket	Socket FS1
Weight	0.2oz / 6g
Introduction date	June 14, 2011

Architecture / Microarchitecture

Microarchitecture	K10
Platform	Sabine
Processor core ?	Llano
Core stepping ?	LN-B0
CPUID	300F10
Manufacturing process	0.032 micron
Data width	64 bit
The number of cores	2
The number of threads	2
Floating Point Unit	Integrated
Level 1 cache size ?	2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches
Level 2 cache size ?	2 x 1 MB 16-way set associative caches
Level 3 cache size	None
Multiprocessing	Uniprocessor
Features	MMX instructions Extensions to MMX 3DNow! technology Extensions to 3DNow! SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSE4a ? AMD64 / AMD 64-bit technology ? EVP / Enhanced Virus Protection ? AMD-V / AMD Virtualization technology Turbo Core technology
Low power features	PowerNow!

Integrated peripherals / components

Integrated graphics	GPU Type: Radeon HD 6480G Shader cores: 240 Base frequency (MHz): 444
Memory controller	The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1333, DDR3L-1333 Maximum memory bandwidth (GB/s): 21.3
Other peripherals	PCI Express 2.0 interface Unified Video Decoder 3.0 ?

Electrical / Thermal parameters

V core ?	0.9125V - 1.4125V
Maximum operating temperature ?	100°C
Thermal Design Power ?	35 Watt

FAQ

Q: Does this processor support the dual graphics feature?

A: Yes.

Q: Do you have a list of compatible GPUs for dual-graphics?

A: Radeon HD 6430M, HD 6450M, HD 6470M and HD 6490M graphics cards are officially recommended.

Q: I have an AMD A4-3300M microprocessor. Can I upgrade it?

A: Probably yes. CPU compatibility is determined by your motherboard. Please see website for CPU support list for your board.

CPUs, related to AMD A4-3300M

Model	Cores / Threads	Frequency	Turbo frequency	L2 cache	TDP
AMD A4-Series for Notebooks family, Socket FS1
A4-3305M	2 / 2	1.9 GHz	2.5 GHz	1 MB	35W	>
A4-3300M	2 / 2	1.9 GHz	2.5 GHz	2 MB	35W
A4-3310MX	2 / 2	2.1 GHz	2.5 GHz	2 MB	45W	>
A4-3320M	2 / 2	2 GHz	2.6 GHz	2 MB	35W	>
A4-3330MX (L2 1MB)	2 / 2	2.3 GHz	2.6 GHz	1 MB	45W	>
A4-3330MX	2 / 2	2.2 GHz	2.6 GHz	2 MB	45W	>
Other families, K10 micro-architecture, Socket FS1
E2-3000M (HX)	2 / 2	1.8 GHz	2.4 GHz	1 MB	35W	>
E2-3000M	2 / 2	1.8 GHz	2.4 GHz	1 MB	35W	>
A6-3400M	4 / 4	1.4 GHz	2.3 GHz	4 MB	35W	>
A6-3410MX	4 / 4	1.6 GHz	2.3 GHz	4 MB	45W	>
A6-3420M	4 / 4	1.5 GHz	2.4 GHz	4 MB	35W	>
A6-3430MX	4 / 4	1.7 GHz	2.4 GHz	4 MB	45W	>
A8-3520M	4 / 4	1.6 GHz	2.5 GHz	4 MB	35W	>
A8-3510MX	4 / 4	1.8 GHz	2.5 GHz	4 MB	45W	>
A8-3530MX	4 / 4	1.9 GHz	2.6 GHz	4 MB	45W	>
A8-3550MX	4 / 4	2 GHz	2.7 GHz	4 MB	45W	>
