Overlay Welding Machine for Hardfacing
- Qingdao Overlay welding machine for hardfacing
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | HUAFEI | |
| Model Number | Overlay welding machine for hardfacing | Voltage | 380v | |
| Current | 500a | Rated Capacity | 3kva | |
| Rated Duty Cycle | 60% | Dimensions | 2200* 3800*2200 | |
| Weight | 3t | Usage | Overlay welding machine for hardfacing | |
| Certification | ISO 9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Overlay welding machine for hardfacing
Application wear plate hard facing overlay welding machine

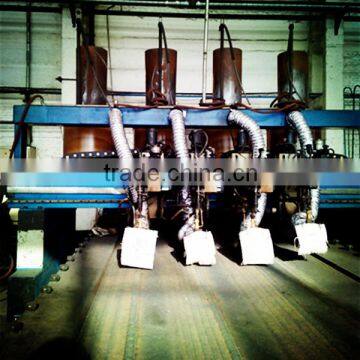

Wear resistant steel plate is using special high hardness open arc wire to overlay uniformly resistant alloy cladding layer processing, to protect the surface from ordinary carbon steel plate. Its working principle is the work piece is placed on the work piece carrier; welding arm with open arc welding torches on gantry frame move horizontally, up and down; so that the welding nozzle head aligning on the welding seam, and then by the gantry shelf moving on the rail as straight line, weld automatically. This machine can weld four welding seam at the same time.
Feature wear plate hard facing overlay welding machine
A high degree of automation, one button start and stop, simple operation, greatly simplifies the operation process
Barreled welding wire located above the beam, to ensure smooth wire feeding
Water cooling effect is good; ensure welding 4+2 wear-resistant plate, plate deformation after welding is very small
PLC is used to control the operation of the machine, AC variable frequency speed regulation, improve equipment reliability
IPC control the stability of the platform, in order to ensure the long time stable operation of welding system
Machine parameters can be set to make any combination of the welding torch welding
The integration of multi welding torch swing, driven by AC servo motor, stable swinging, weld forming beautiful
Breakpoint welding function
Water-cooled torch improve consumable life
Parameters wear plate hard facing overlay welding machine
Item | Parameters |
Effective transverse welding stroke: | 1500mm; Can be customized |
Effective longitudinal welding stroke: | 3000mm; Can be customized |
Welding speed: | 150 -1500mm /min |
Gantry gauge: | 3000mm |
Cross slide trim trip (Electric) | 60mm |
Welding torch up and down stroke (Electric) | 260mm |
Swing speed: | 0-2400mm/min |
Video Link wear plate hard facing overlay welding machine
/video.php?v=1534631233444011&set=vb.100006914478186&type=3&theater
ISO9001:2008 & CE certification
After-sale Service
♥ Warranty : one year
♥ Engineers available to serve machine overseas
♥ Strict factory inspection
♥ Complete equipment manual
♥ Online instruction
♥ Provide all components, spare parts and consumptive material
Jinan GT Machinery Co.,Ltd the sales branch company of Jinan HuaFei CNC Machine is a professional CNC machine manufacturer, which specializes in designing, producing and trading together. Our products have been exported to
many countries including United States, Canada,Australia, Indonesia, India, Sri Lanka, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, Kazakhstan, Uzbekistan etc.

Service Purpose:
Our professional sale and after-sale service give you a faithful feel.
Thanks for your inquiry and welcome to visit our company. Any question, please feel free to contact us!
