Automatic Welding Machine H Beam Submerged Arc Welding Machine

 Introduction                                variable cross-section beam welding machine

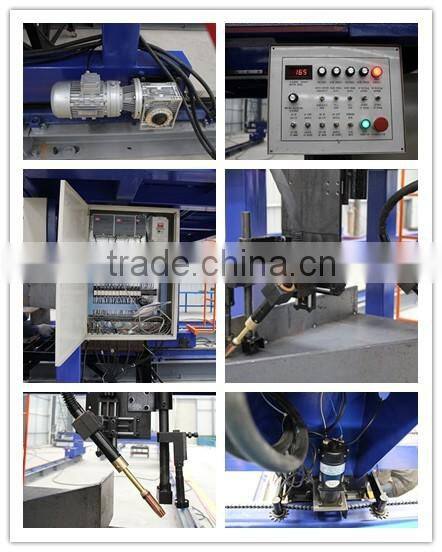

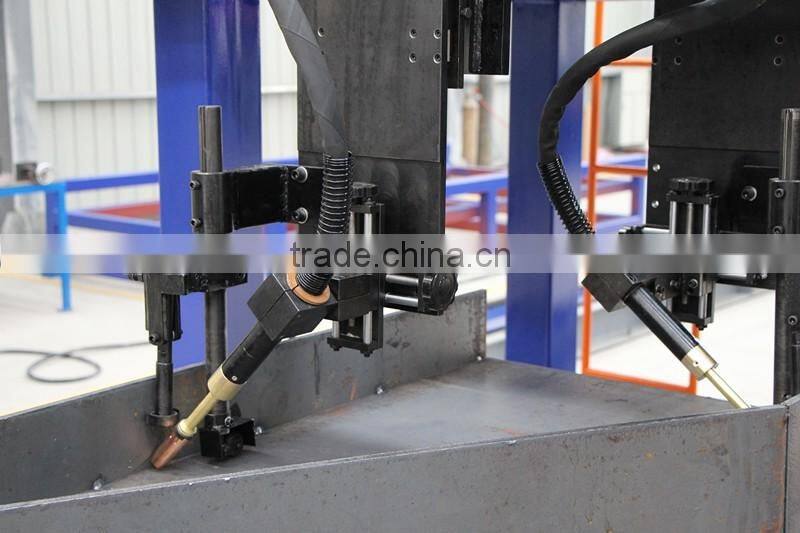

    The equipment is special for automobile beam welding, widely used in building steel structure, the crossbeam of the automobile and engineering machinery “ H/I “ beam welding production, adopts centralized control system. Main composed of Gantry frame, two sets of MZ-1000 submerged arc welding power supply, two sets of horizontal electric mobile slider, two sets of electric hanging head, two sets of automatic tracking mechanism, two sets of flux recovery machine and control system etc.. With high efficiency, good welding quality is the ideal equipment for H type and “I “beam welding.

 Parameter                    variable cross-section beam welding machine

Height of gantry frame (distance between beam and ground)          1.2m

Torch lifting stroke (Up Down)                                                             200mm

Torch longitudinal travel                                                                        700mm

Gantry frame travel motor power                                                    0.75KW×2

Gantry frame travel welding speed                                   250-1200mm/min

Fast return speed                                                                         2880mm/min

Gantry frame Guide rail center distance:                         3m (user prepare)

Length of guide rail                                                                      Customizable

Beam web plate height                                                                  150-800mm

Beam pterygoid lamina width                                                       120-800mm

 Video link                    variable cross-section beam welding machine

/AKZ250/videos/vb.100006914478186/1701278056779327/?type=3&theater

/AKZ250/videos/vb.100006914478186/1701279470112519/?type=3&theater

 ISO9001:2008 & CE certification

 After-sale Service

♥ Warranty : one year

♥ Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components, spare parts and consumptive material
