Column Boom Automatic Pipe Welding Machine

Column Boom Automatic Pipe Welding Machine

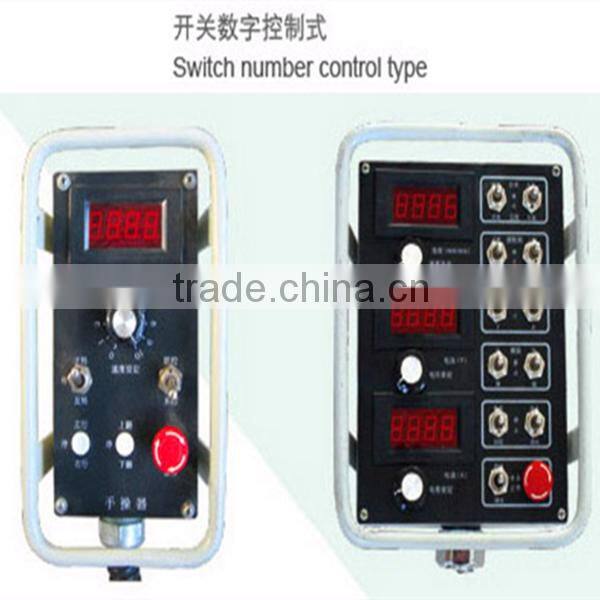

    Automatic welding manipulator for metal containers/ welded metal structure and a variety of welding ways. Widely used in wind power equipment, pressure vessel, petrochemical, pipeline, steel structure, boiler, shipbuilding, welding repair and many other industries. According to the user's requirements can install electric pallet, the telescopic arm, manned equipment and maintenance ladder, also supporting a variety of tracking and monitoring devices, oscillator , welding flux recovery delivery device. Welding manipulator adopts digital control systems, so it is easy operation, precise control and can conveniently linkage control with other equipment  .

    Automatic welding manipulator have three differernt type: small, medium, heavy.Accoding to structures,  have four type: fixed, fixed rotary, fixed-mobile and mobile rotary .

Features:

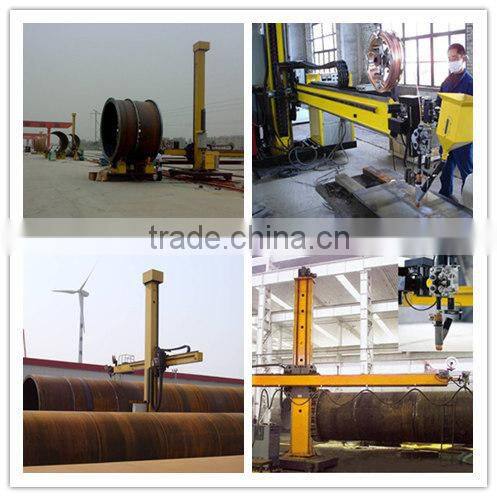

 1) Welding manipulator is the automatic welding equipment work with welding power. It can be used together with welding rotator or welding positioner, and widely used in industries as boiler, ship-building, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams.

2) Our welding manipulator features in advanced structure, multi-function, and easy to operate, and other equipment to facilitate linkage control, which increased the production capacity and assured the quality.

3) The automatic welding manipulator consist of light, standard, and heavy type according to weight-bearing, effectively stretching and up/down stroke.

4) The automatic welding manipulator is design for four different structure type: Fixed type, fixed rotation type, fixed movable type and movable rotation type.

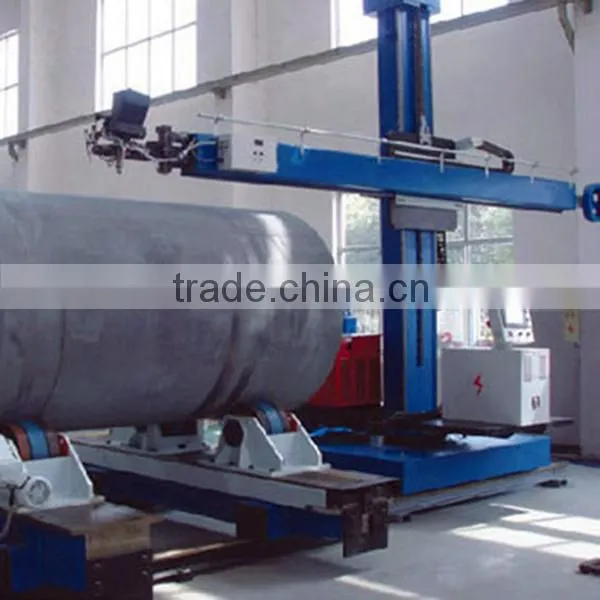

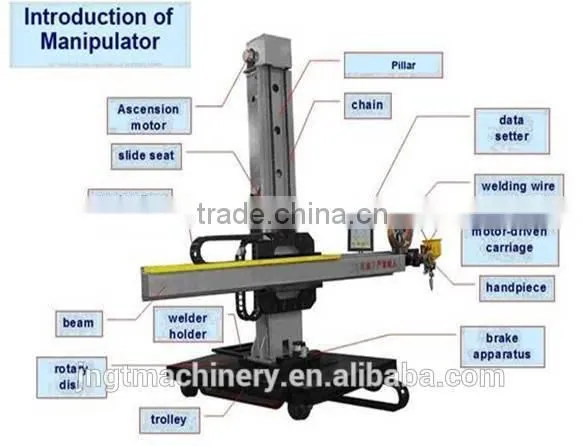

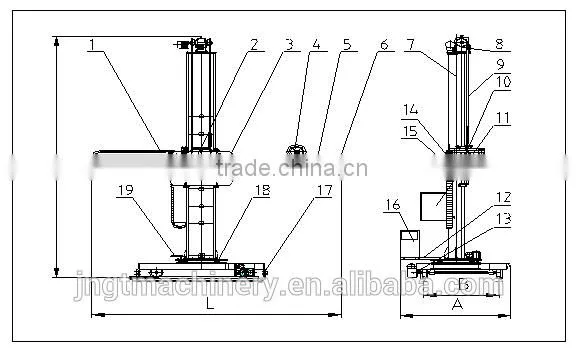

5) Welding head mounted on one end of the beam, the beam can be moved up and down and left and right telescopic column by turntable mounted slewing ring back on, so that the column can be ± 180 ° manual rotation. Telescopic beams for frequency control, speed and stability without crawling, after extending a small deflection. Compatible with a variety of welding equipment, can be carried out in vivo outer rotary joints, longitudinal seam spiral seam welding, and welding and other internal and external surfaces. Widely used in boilers, pressure vessels, piping, shipbuilding and other manufacturing industries.

Parametes

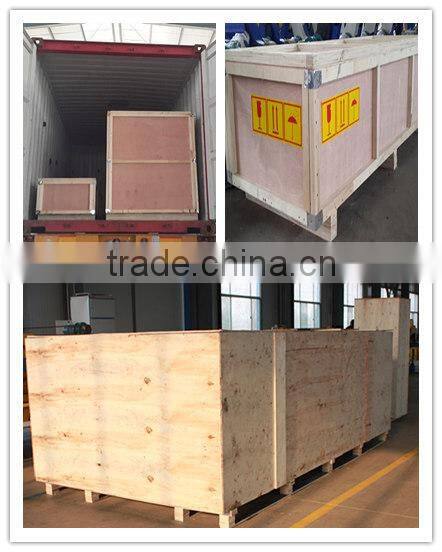

Standard plywood packing

Certification

CE and ISO9001:2008

After-sale service

♥ Warranty : one year

♥ Engineers available to serve machine overseas

♥ Strict factory inspection

♥ Complete equipment manual

♥ Online instruction

♥ Provide all components on equipment

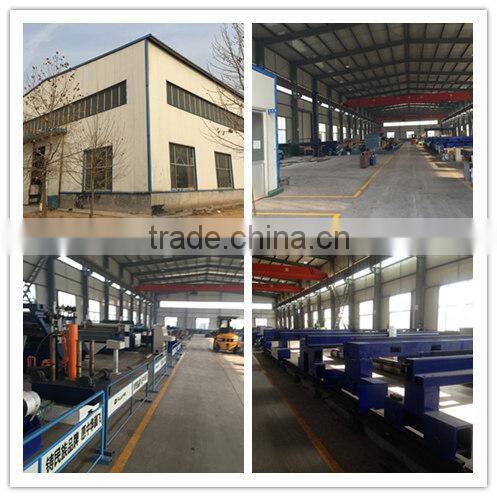

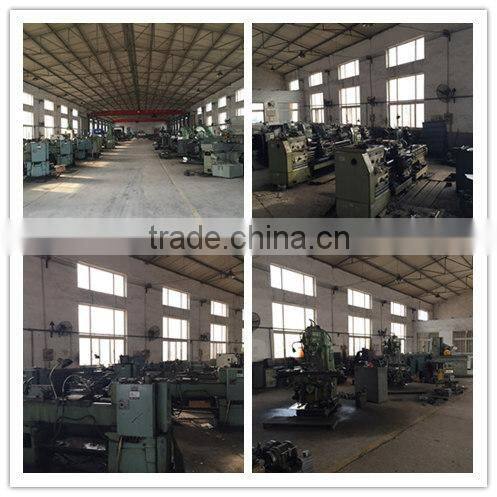

Jinan GT Machinery Co.,Ltd ,the trading department of Jinan Huafei CNC Machine Co, Ltd is a professional CNC machine manufacturer, which  specializes in designing, producing and trading together. The company mainly produce and sell automatic welding equipment, cnc cutting machine, and uncoiling production line. Since establishment, the company has built long-term good cooperation with plenty of customers home and abroad, the products have been exported to many countries including United States, Canada,Australia, Indonesia, India, Sri Lanka, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, Kazakhstan, Uzbekistan etc.

Leading-edge R&D team, strict modern enterprise management, professional sales and timely after-sale service make our brand popular. We supply better service when quality is the same, more competitive price when service is the same. Whenever and wherever, we will offer you the most cost-effective products.

From strangers to business partners, it takes just one step. Let us break the ice, establish business from your calling or email. Our one-stop full service will satisfy you from beginning to end.

Service purpose:

Our professional sale and after-sale service give you a faithful feel.

Thanks for your inquiry and welcome to visit our company. Any question, please feel free to contact us!
