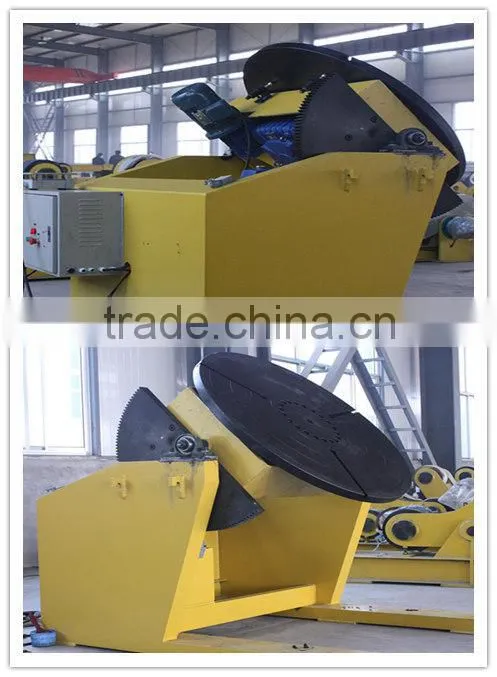

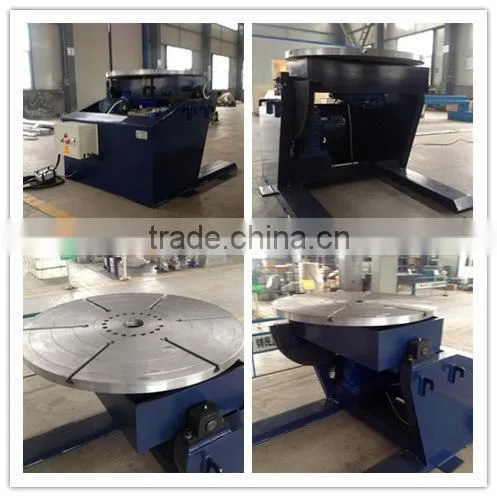

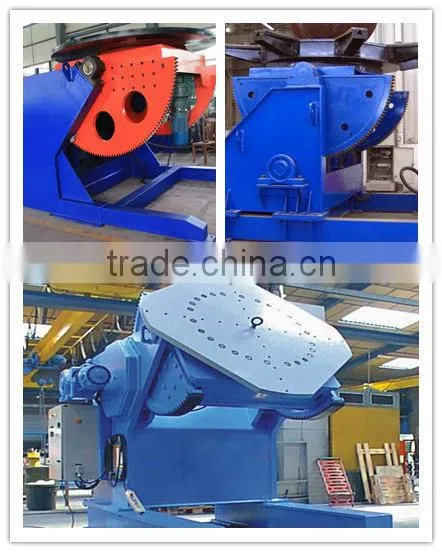

Rotating and Flipping Welding Positioner with Chuck
Rotating and Flipping Welding Positioner with Chuck
Seat-type positioner is by working table turning or tilting, let the welding seam at level or boat type position’s welding device.Table rotation with frequency variable speed, table tilting driven by sector gear or hydraulic cylinder,table rotating angle 0 ° - 120 °.It can achieved linkage control with welding manipulator or welding machine. Control system have 3 option:Button digital control,switch digital control and switching relays control.This machine can widely used in various parts of the shaft,disk, cylinder etc.
Specifications
1. With professional anti-electromagnet funtion.
2. Have self-locking function.
3. Giving you the competitive price.
4. Tilting from 0 to 120°, rotating 360°.
5. Provide you the excellent service.
6. Supply you the reliable products.
Technical data
| Model No. | BW2-6 | BW2-12 | BW2-20 | BW2-40 | BW2-50 | BW2-80 | BW2-150 | BW2-200 | |
| Basic loading(kg) | 600 | 1200 | 2000 | 4000 | 5000 | 8000 | 15000 | 20000 | |
| Rotating speed r/min | 0.05-0.5 | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 | 0.02-0.2 | |
| Turning speed r/min | 0.75 | 0.37 | 0.37 | 0.37 | 0.25 | 0.25 | 0.15 | 0.15 | |
| Turning angle (° ) | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-120 | 0-90 | 0-90 | |
| Work table diameter(mm) | 800 | 1100 | 1100 | 1400 | 1600 | 1800 | 2200 | 2500 | |
| Height of work table(mm) | 1000 | 1250 | 1250 | 1600 | 1800 | 1800 | 2300 | 2600 | |
| Allow workpieceoff-center(mm) | Eccentricity | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Centroidal distance | 200 | 250 | 300 | 300 | 300 | 350 | 500 | 600 | |
| Rotating motor power(kW) | 0.37 | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 4 | 5.5 | |
| Turning motor power(kW) | 0.75 | 0.75 | 1.1 | 3 | 3 | 4 | 7.5 | 11 |
|
Machine video link
/video.php?v=1527359967504471&set=vb.100006914478186&type=3&theater
Standard plywood case and plastic film
Certification: ISO9001:2008 and CE
After-sale service
♥ Warranty : one year
♥ Engineers available to serve machine overseas
♥ Strict factory inspection
♥ Complete equipment manual
♥ Online instruction
♥ Provide all components, spare parts and consumptive material
