The feces water treatment centrifuge could deal with the material whose range of concentration is large, small size which is widely distributed. Solid particles are less than 0.5mm as rigid particles, and less than 10mm as non-rigid particles, the machine can treat effectively.
LW series decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity.

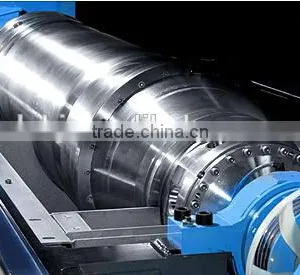

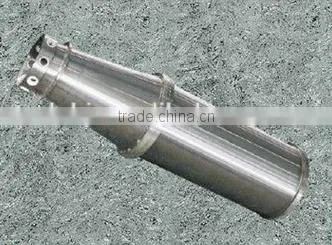

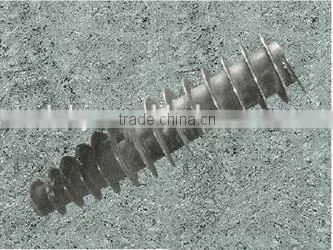

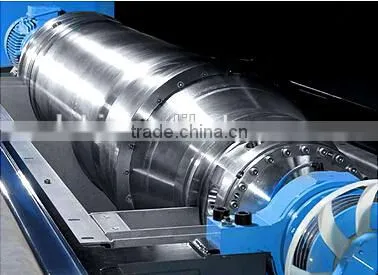

Screw Conveyor Drum
Feature
♦ Main parts such as the bowl and conveyor are made of corrosion-resistant stainless steel or duplex steel, offering high maximum bowl speed and high centrifugal force.
Tungsten Carbide Tiles

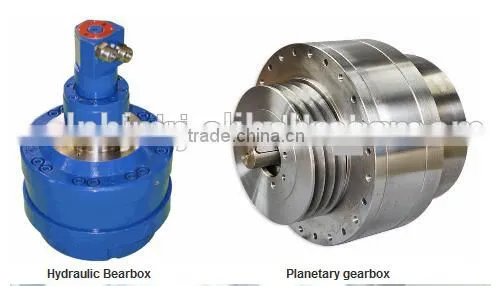

♦ Optional planetary gearbox and hydraulic gearbox, offering wide range of differential speed adjustment
Multiple safety protection: bowl speed and differential speed detection, over-vibration protection, motor overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.
Technical Parameters
Model |
Bowl Dia (mm) |
L/R Ratio |
Bowl Speed (r/min) |
G-force |
Main Motor power (kw) |
Weight (kg) |
Dimension(mm) (L*W*H) |
LW220x880 |
220 |
4 |
4800 |
2840 |
7.5-11 |
1000 |
1850*1200*750 |
LW355x1460 |
355 |
4 |
4000 |
3100 |
22 |
2020 |
3365*920*1060 |
LW450x1800 |
450 |
4 |
3500 |
3083 |
30-37 |
3500 |
4200*1090*1250 |
LW450X2050 |
450 |
4.5 |
3600 |
3260 |
30-37 |
37800 |
4200*1090*1250 |
LW530x2120 |
530 |
4 |
3200 |
3040 |
45-55 |
4200 |
4885*1230*1350 |
LW630x2300 |
630 |
3.65 |
2500 |
2205 |
75 |
8000 |
5110*1440*1750 |
LW720x2665 |
720 |
3.7 |
2000 |
1600 |
110 |
12000 |
5365*3160*1510 |

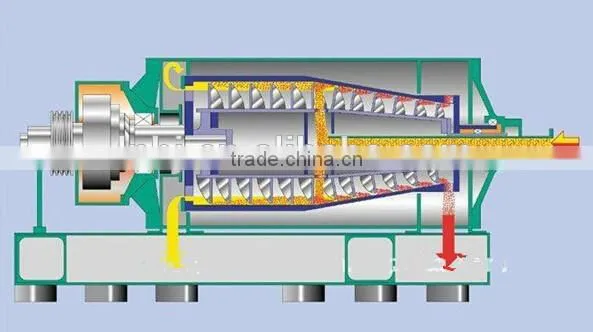

Structure drawing:
Separation Principle
1. Gravity Separation
On account of difference in density, the mixed liquid in the container, after a period of time, is gradually divided into 2 layers. The heavy phase particle of the mixed liquid deposits to the bottom of the container, while the light phase suspends to the upper surface. A rather distinctive dividing plane forms between the light phase and heavy phase. The separation speed is affected by the difference of density between the light phase and heavy phase that make up the mixed liquid. The larger the difference in density is, the faster the separation speed will be.
2. Centrifugal Separation
When the container filled with mixed liquid rotates at high speed around its own axis, due to the difference in density between the two phases making up the mixed liquid, they bear different centrifugal force. Under the action of a larger centrifugal force, the heavy phase in the mixed liquid quickly subsides on the inner wall of the drum, while the light phase slowly adhere close to the surface of heavy phase. The faster the container rotates, the larger the difference in centrifugal force borne by the light and heavy phases that make up the mixed liquid, and the faster the separation speed. When the container is equipped with such parts as feeding mainly comprised of such parts as drum, helical propeller, planet gear differential mechanism, pedestal, hood and lubricating system.
