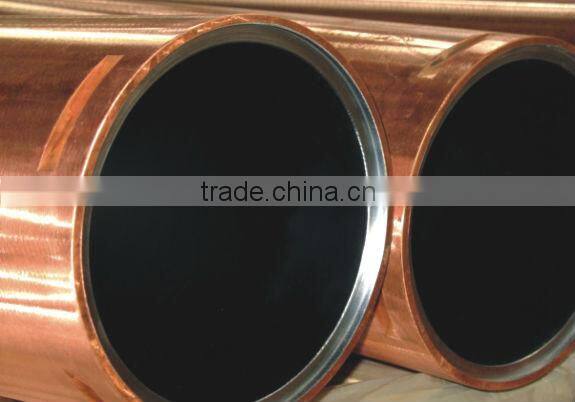

round copper tubes

FOB Price

USD $1,400 - $1,500 / Ton

2 Tons(Min.Order)

Supply Ability 10 Ton / Tons per Month
Port SHANGHAI
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	CCM
Model Number	round copper tubes	Shaping Mode	Other
Product Material	Metal	Product	Other, tubular moulds

Product Description

,We have two electro-plating workshops for mould plates plating separately

and each of them covers an area of 1800 square meters.

There are 22 tanks for Cr plating of mould tubes and 7 tanks for plating of mould plates .

The maximum size of round tubes that can be plated is Dia .1200mm

and the widest broad face mould plates can be plated is 3800mm .

Our company posses the certificate of ISO 9001:2000

and environmental management certificate ISO 14001.

name	Item/size	Camber radius	Thickness	Length	Remarks
round copper tubes	Φ110-Φ1200	5000-17000Also straight	10-50	602-900	With slotdouble taper,quadruplicate taper,parabolic taper and varius kinds of continuous taper high efficiency copper mould tubes

Mould Materials :

Choose high quality copperrod.

1.TP2
This kind of material is selected by most of the steel plants .It shows excellent heat-proof and snit-fatigue property under high temperature and it has good processing property.

2.CuAg0.1
Adding 0.08%-0.12% silver during copper ingots melting will increase the re-crystallization temperature of copper by 100°C which will increase the heat stress and anti-abrasive property of copper mould tube interior surface ,showing better heat-resistant property than Tp2.

3.Cu-Cr-Zr

Cu-Cr-Zr is a kind of copper alloys which can be normalized by time .It has excellent mechanical property under both room temperature and high temperature .It has high heat conductivity ,melting point anti-fatigue and anti heat stress properties.These outstanding features make it different from the previous copper alloys , Cu-Cr-Zr is difficult to be formed with higher products costs.
