6 Digit Small Digital Electric Counter Meter with Timing Function
Counters & timers are the basic tools widely used in automation process of various industries. Sommy offers wide range of industrial counters and timers, designed, manufactured and tested to meet the most demanding worldwide standards and ratings. They are high accuracy in the meter counting, digital display, soft-contact key operating, permanent data retention when power cut, strong anti-disturbance capability, pretty appearance, etc.Sommy digital counter can be used widely in the industries of packing, printing, textile, papermaking, petroleum, chemical engineering, metallurgy, etc.
Features
1.Multi-function, counting/ length/ timing
2. Dual line 6 digit display
3. With counting up/ down, timing function, 8 kinds of output modes
4. Selectable input signal pulse width
5. Thickness only 64mm, sae installation sapce
6. Panel mounting size: 4: 48WX48HX68Dmm 7: 72WX72HX68Dmm
7. With power failure memory function , password protect function
8. With reset function , both automatic reset and reset by manual
9. Working environment: -10℃-+55℃, humidity≤85%
Connection Example Show

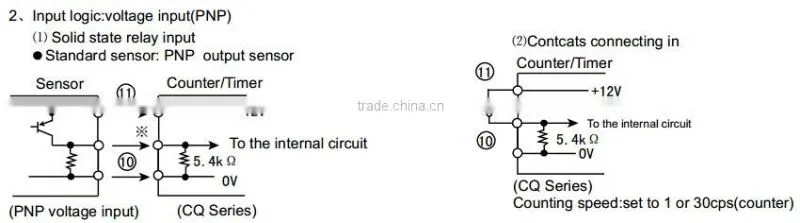

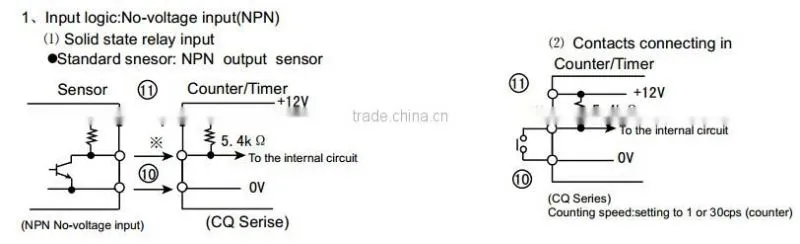

Wire Connection Drawing
