Textile Counter Meter
CN series Textile Counter Meter display with 6 digits LED, widely apply for food machine,packing machine,textile machine ,and other industrial field, supporting rotary encoderproximity sensorphotoelectrical sensor. Counting lengthquantitybatch through pulse signal, for rotary encoder signal input, no need to connect pull-up resistor.
Features:
1.Counting speed 1CPS/30CPS/1KCPS/10KCPS
2. Power fail memory function, 3 alarm outputs, 9 kinds of timing range selectable
3. 6 digit product counting/timing/batch counting
4. Bach counting function, batch alarm output
5. For rotary encoder signal input, no need to connect pull-up resistor. With Mobdbus 485 communication interface
6. Applied to light industry, machinery, packing, food industry etc for counting length, product quality etc.
7. Panel mounting size: 3: 36HX72WX80L 4: 48HX48WX90L 7: 72HX72WX90L 8: 96HX48WX90L

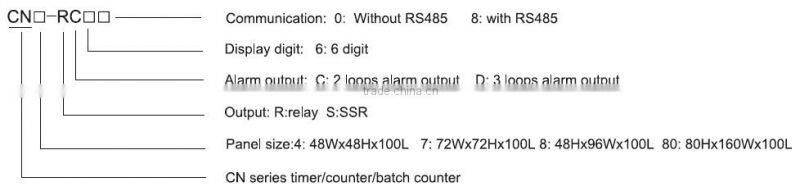

Model Illustration
Panel Specification
Technical Specification
Power supply |
100~240V AC/DC |
| INA,INB input frequency | 1Hz, 30Hz,1KHZ,5KHZ,10KHZ is selectable |
| One-short output | INA,INHIBIT,RESET,BATCH RESET,1ms or 20ms is optional |
| Relay output capacity | 10/50/100/500/1000/2000/5000ms |
| Coefficient setting | No: 250VAC 3A impedance NC:250V AC 2A impedance |
| work temperature | 0.00001-999999 can be set freely |
| Dielectric strength | -10'C~ 50'C (non-freezing) |
| Interference(AC Power) | 2000V AC 50/60Hz 1minute |
| Auxilary Power | 12V DC |
| Data storage | 10 years |
| Display | Dual line 6 digit LED |
Cofficient Function
Wire Connection
1. We offer 3 years warrany period for all of our products.
2. We offer free pre-sales and after-sales service , please call to our technical support line :400-8866-986 or 86-760-88722603 if have any quesiton.
3. We offer OEM and ODM service for you , also offer design and reasearch new product for you .
4. We offer price , promotion and technical support , if you want to be our distributor in your country or region
