Home > Products > Temperature controller > AN708-8 series intelligent temperature controller

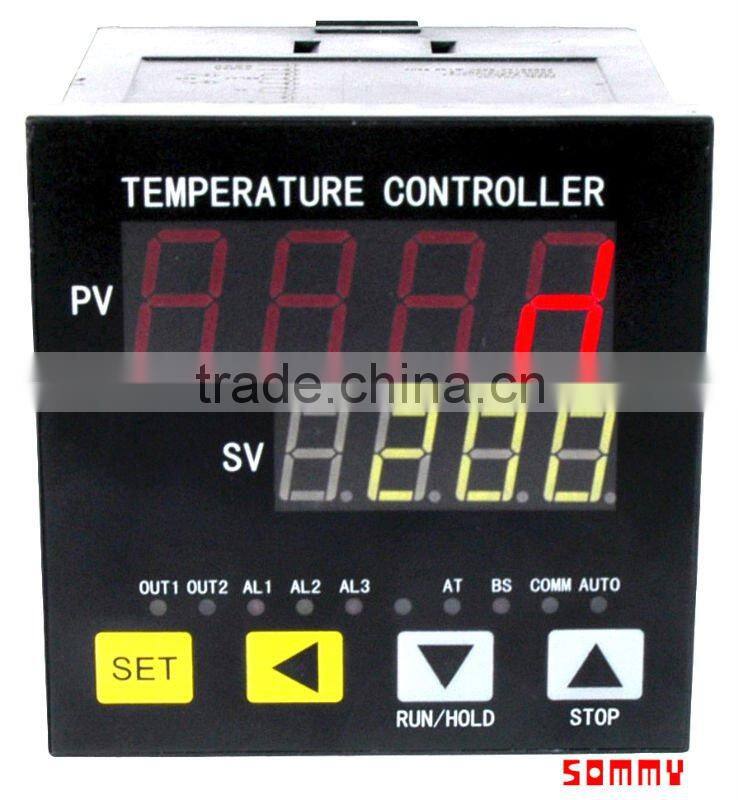

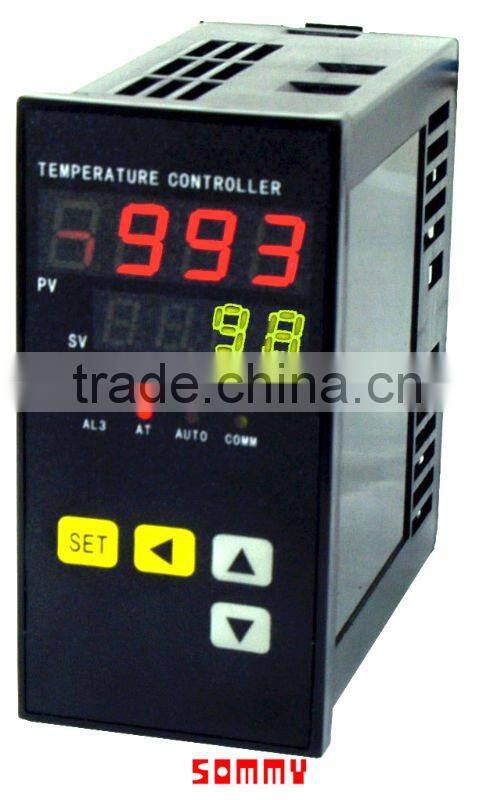

AN708-8 series intelligent temperature controller
- Zhongshan
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SOMMY | |
| Model Number | AN708 | Usage | Industrial | |
| Theory | Temperature Controller |
Product Description
AN708 series intelligent PID digital temperature controller
Features:
*Universal signal input,suitable for most sensors.
*With digital LED display,control & multi alarms function
*Two freedom degree PID
* RS485 Communication function, Modbus Protocol
*Modularization output design, easy to change
* Panel size: 4: 48HX48W 6:48WX96H 7: 72HX72W 8:48HX96W 9:96WX96H 12:120WX120H (to be ordered 16: 160WX80H(to be ordered)
Ordering Code
Model | Alarm | Control Output | Input | Communication |
AN708-♦-Q20 | 2 alarms 1cooling control
| SSR | K, J, E, T, PT100, CU50, CU100 | No |
AN708-♦-R20 | Relay | No | ||
AN708-♦-C20 | 4-20mA current | No | ||
AN708-♦-Q28 | SSR | RS485 | ||
AN708-♦-R28 | Relay | RS485 | ||
AN708-♦-C28 | 4-20mA current | RS485 |
Note: For 48Hx48W panel size, it is 2 alarms without communication only. Please consult with us before order.
Technical Specification
Power Supply | AC/DC 100-240VAC | Power consumption | 5W |
Accuracy | ±0.3%FS3 | Sampling cycle | 250ms |
Ambient Temperature | 0~50°C≤85%RH | Response time | ≤0.3s |
Insulation Impedance | 100MΩ | Dielectric strength | 1500V AC 1 minute |
Power interference | Anti burst of pulses electromagnetism interference, for power supply input connector,≥2KV | Measured&display resolution | RTD0.1°C, TC 1°C, FOR other input, it is selectable |
Output specification | Relay capacity 250V AC/3A 24V DC/5A Voltage output:24VDC/30mA. For driving SSR 420mA current ouptu: drive load≤600Ω | Input signal | TC:K, S, R, J, E, T, B, N,JP100,PT100, CU50, CU100 Linear voltage:0-10V, 0-50mV Linear curret:4-20Ma Linear resistance:0-400Ω |
