4-20mA DC Solid State Relay (SSR)

Name: 4-20mA DC Solid State Relay (SSR)
Brand: SOMMY
SKU: 127940671

US$ 2 - 5 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SOMMY

Model Number:

RMH-PC40A230

Zhongshan Sommy Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhongshan/Guangzhou/Ningbo/Shanghai/HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SOMMY

Model Number RMH-PC40A230

Theory Solid State Relay

Usage General Purpose

Size Miniature

Protect Feature Epoxy

Contact Load Low Power

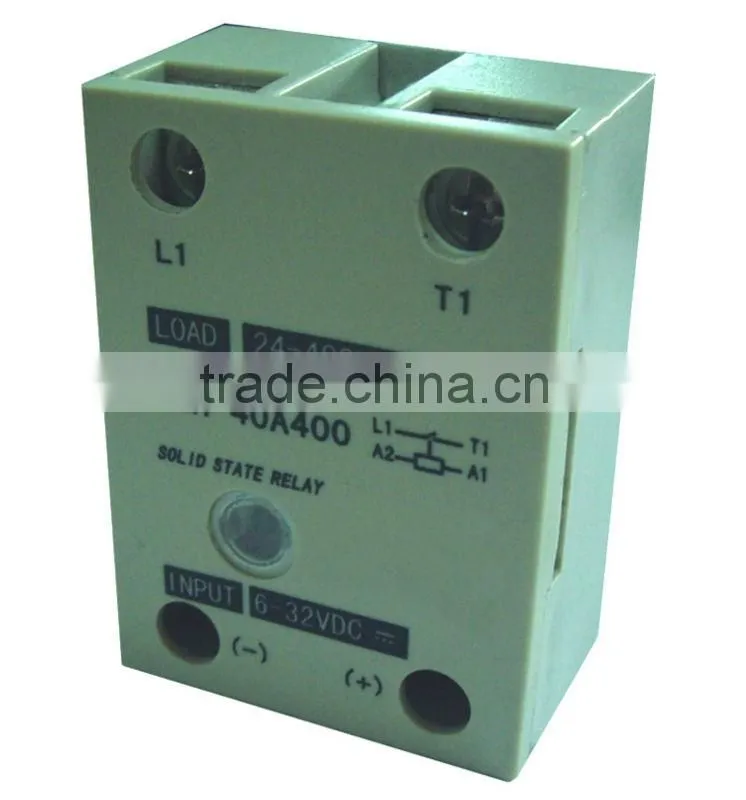

Single phase solid state relay SSR

Features:

1.High bright LED for input indication

2.With inrush current absorb circuit inside the SSR

3.Control block applying constant current circuit

And it is not necessary to connect a current-limit resistance in serial within 5-32V

Ordering Code

Model	Rated current	Control voltage	Rated voltage	Activation type	Disconnect critical voltage rising rate
RMH-15A400	15A	5~300V DC	400V	Zero-cross ( or random )	500V / μs
RMH-25A400	25A
RMH-40A400	40A
RMH-60A400	60A
RMH-80A400	80A

Technical Specification

Applicable load type	AC1	Zero-corss area of SSR	±15V
Inrush current (1 cycle)	700%
DVS/DT	500V /	Insulation voltage	≥15V
DVC/DT	100V /
Voltage drop when active	<2V	Ambient temperature	-30°C to 75°C
Power net frequency	50HZ/60HZ	Max.active delay for zero-cross type SSR	10ms
Max. inactive delay	100ms	Max.active delay for zero-cross type SSR	10ms
