Zero cross control 25A SSR solid state relay
Soomy Zero cross control 25A SSR solid state relay is widely used in various automatic feilds like chemical fibre machinery, temperature controller, electric cooker, rubber machinery, fountain control, numerical control machinery etc.
Features:
♦ Bright LED as input indication
♦ With inrush current absorb circuit inside the SSR
♦ Control connection applied constant circuit, it is not neccersary to connect a current-limit resistance in serial within 5-32V
♦ Input signal: Optional 5-32V DC, 4-20mA, 0-500KΩ
Technical Specification
◊ Applicable load type: AC1
◊ Inrush current(1 cycle): 700%
◊ DVS/DT: 500V/µs
◊ DVC/DT: 100V/µs
◊ Voltage Drop when active: <2V
◊ Power net frequency: 50/60HZ
◊ Max. Inactive delay: 10ms
◊ Zero-cross area of SSR: ±15V
◊ Ambient temperature: -30°c - +75°c
◊ Insulation voltage: ≥2000VAC
◊ Max. active delay for zero-cross type SSR: 10ms

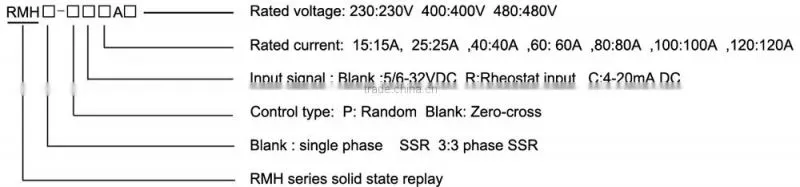

Model Illusrtation
Connection Drawing
RMH-25A400 Zero cross control 25A SSR solid state relay
1. We offer 2 years warranty period for the Zero cross control 25A SSR solid state relay.
2. We offer free pre-sale and after-sale service . Any question , just feel free to dial our service line: 400-8866-986 or 86-760-88722603 at any time.
3. We offer OEM and ODM service based on your requriement.
4. We offer price , technical , promotion support if you want to distributing our products in your market.
Sommy Automation Group Shares Co., Ltd is a professional manufacturer of various electrical and industrial instruments since 1988, which located in both Hongkong and mainland of China. SOMMY have six automatic production line with 15,000 square meters manufacture center. It integrates research and development, production and sales into a whole system. SOMMY enjoy good reputation both in domestic and foreigh automation and electric field for many years.
Sommy products mainly include: electricity transmitter, power recorder, flow totalizer, temperature controller, digital counter and timer, frequency/RPM meter, solid state relay and various sensors etc.
With principle of " Quality fist, technology guidance", we have made great success in designing various new products. We focus on quality and after-sales service of our products all the time.
Welcome enquiry and cooperation ! We will be always at your service!
