SR series LED weight sensor indicator
*** Infomation of Sensor Indicator
Intelligent sensor indicator / indicating & controlling meter Features:
- TC/RTD/Logic signal universal input,adapting to kinds of sensors
- RS485 communication, modbus protocol
- 2 alarm output
- 4-20mA analog output
- Dimensions(mm) 48HX48W, 48HX96W, 72HX72W, 86HX48W, 96HX96W
Ordering code
Model |
Input signal |
Accuracy |
Alarm |
Analog output |
RS485 Communication |
SR-R20B |
TC,RTD 0-10V, 4-20mA, 0-50mV, 0-400Ω |
±0.5%F.S |
2 |
No |
No |
SR-C20B |
2 |
Yes |
No |
||
SR-R28B |
2 |
No |
Yes |
||
SR-C28B |
2 |
Yes |
Yes |
Technical Specification
Testing function |
Testing with most kinds of sensors |
Ambient temperature |
0-50°C |
Accuracy |
±0.5%F.S |
Power supply |
50/60Hz 110/220V AC/DC |
Ouput /Relay capacity |
250VAC 3A, or 30VDC 5A |
Sampling rate |
4 times/s |
Anti-jamming |
>2KV |
Dielectrical strength |
≥2000VDC 60S |
Power consumption |
5W |
4-20mA transmit current with load |
<600Ω |
Input signal |
K,J,E,T,R,S,B,N,CU50,CU100,PT100,JPT100,0-10V,4-20mV, 0-400Ω |
||
Resolution |
TC 1°C; RTD 0.1°C; Others 0.01% |
||
***Packing & shipment

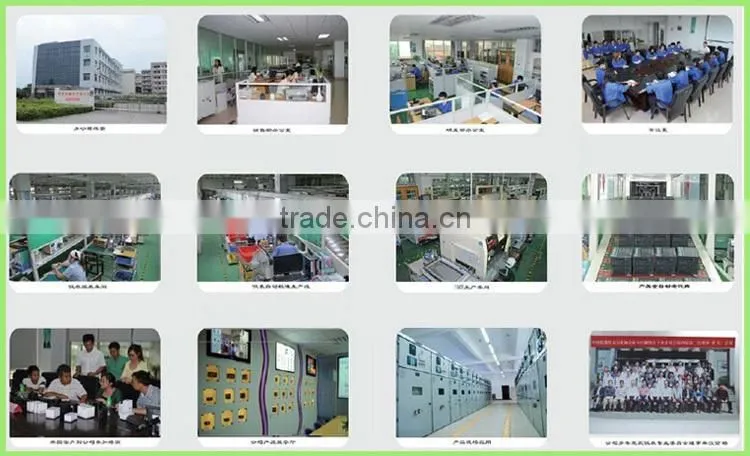

***Our company and Certifications
