Help CenterHollow Type Incremental Rotary Encoder
US$ 25 - 40
MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hong Kong, China
Brand Name:
SOMMY
Model Number:
E38T-6 / E38H-6
Payment & Shipping
Payment Methods:
Port of Shipment:
ZhongShan/ShenZhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
R38T-6mm Shaft Small Through Hollow Shaft Rotary Encoder / Incremental Shaft Encoder 24vUS$ 30 - 50MOQ: 1 Piece -
R50H 6/8/10mm Line Driver Encoder/End Hollow Shaft EncoderUS$ 30 - 50MOQ: 1 Piece
-
R38H-10mm Blind Hole Industrial Motion Control Incremental Encoder / Rotary Optical EncoderUS$ 30 - 40MOQ: 1 Piece
-
Intelligent Online Conductivity ControllerUS$ 40 - 53MOQ: 2 Pieces
-
CM-230 Economic Conductivity ControllerNegotiableMOQ: 2 Pieces
Place of Origin
Hong Kong, China
Brand Name
SOMMY
Model Number
E38T-6 / E38H-6
Usage
Position Sensor
Theory
Optical Sensor
Output
Other, sqaure wave signal
Product Description
1. External diameter :38mm
2. Hollow shaft diameter: 6mm/8mm
3. Rotational Speed: 6000r/min maximum
4. Shaft load≤15N
5.Protection Class: IP54
6. Studay and durable, easy to install , optional output mode

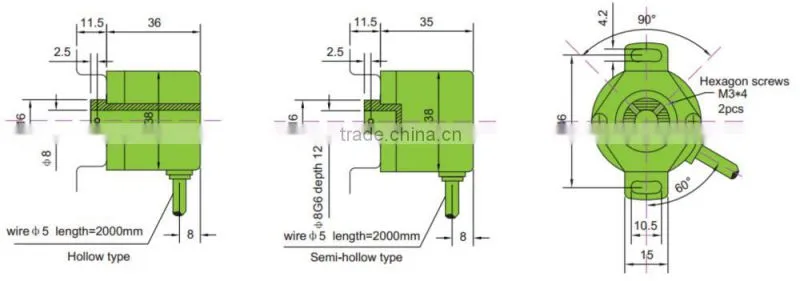

MECHANICAL SPECIFICATIONS | |
External Diameter |
38mm |
Shaft Diamet |
6mm/8mm |
Slew Speed |
6000r/min |
Shaft Load |
≤15N |
Operating Temperature |
-20 °C(-40 °C)- +85°C |
Protection Class |
IP54 |
Outlet type |
side entry cable / rear entry cable |
ELECTRICAL SPECIFICATIONS | |
Supply Voltage |
DC5V-DC26V/10V-30V |

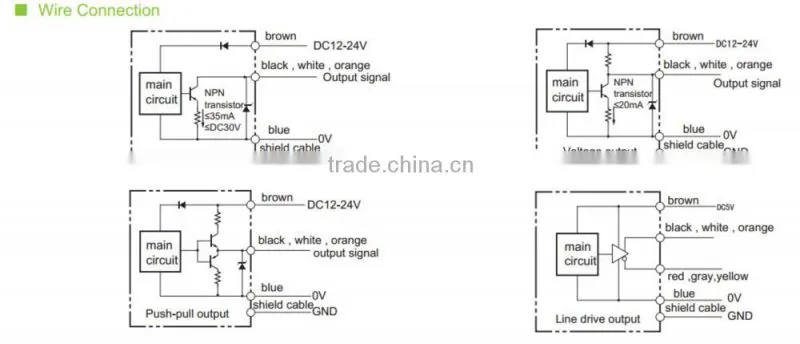

Output Model |
voltage output/NPN collector open output/Push and Pull output/Line drive output |
Frequency Response |
0-100kHz |
Current Requirement |
≤60mA |
Output Pulse No. |
10-6000 |
Index Length |
1T |
Output Phase |
A, B, Z phase |
