Help CenterR50H 6/8/10mm Line Driver Encoder/End Hollow Shaft Encoder
Related Products
-
R38H-10mm Blind Hole Industrial Motion Control Incremental Encoder / Rotary Optical EncoderUS$ 30 - 40MOQ: 1 Piece -
Hollow Type Incremental Rotary EncoderUS$ 25 - 40MOQ: 2 Sets
-
R38T-6mm Shaft Small Through Hollow Shaft Rotary Encoder / Incremental Shaft Encoder 24vUS$ 30 - 50MOQ: 1 Piece
-
Intelligent Online Conductivity ControllerUS$ 40 - 53MOQ: 2 Pieces
-
CM-230 Economic Conductivity ControllerNegotiableMOQ: 2 Pieces
Specifications
1.External DIA:50mm
2.Hole DIA:6/8/10mm
3.Output Model:Voltage /Open Collector/Complementary/Line Driver
4.Pulse No:10-5000
Principle of Incremental Rotary Optical Encoder
An incremental rotary encoder provides cyclical outputs (only) when the encoder is rotated. The incremental rotary encoder is the most widely used of all rotary encoders due to its low cost and ability to provide signals that can be easily interpreted to provide motion related information such as position and velocity.
Optical encoders use light (optics) to identify unique positions for the encoder. Optical encoder engines can be amazingly precise, with some designs hitting 4 million counts per revolution. This makes an optical encoder a desirable choice where resolution matters, from office equipment like computer mice and copiers to medical equipment. With phased-array technology, an optical encoder is increasingly able to perform in much tougher environments which require a combination of durability and resolution, like crane operations and automated vehicle guidance.
Features and Applications of Industrial Serise
The most common class of encoders is the industrial encoder. An industrial encoder can take punishing operating environments almost as well as heavy duty encoders – rough factories with contamination from dust, particulates, and moisture, in addition to moderate shock and temperature. An industrial encoder offers excellent speed and positioning performance. The class of industrial encoders is versatile.
Product Description
1.Encoder R50H Series are widely applied in industrial control.
2.Compact design.
3.High radial and axial load.
4.Standard flange, clamp flange and synchronous flange are used together.
5.Compatible with various receivers and counters.
6. Multiple output formats.
7.Hollow Shaft Optical Rotary Encoder
MECHANICAL SPECIFICATIONS | |
External Diameter |
50mm |
Shaft Diameter |
6/8/10mm |
Slew Speed |
6000r/min |
Shaft Load |
≤30N |
Operating Temperature |
-20 °C(-40 °C)- +85°C |
Protection Class |
IP54 |
Termination |
G/E |
ELECTRICAL SPECIFICATIONS | |
Supply Voltage |
DC5V-DC26V/10V-30V |
Output Model |
E/C/F/L |
Frequency Response |
0-100kHz |
Current Requirement |
≤60mA |
Output Pulse No. |
10-5000 |
Index Length |
1T |
Output Phase |
A,B,Z/A,-A,B,-B,Z,-Z |
TERMINATION | |||
G Side Entry Cable |
E Rear Entry Cable |
C Side Entry Plug |
R Rear Entry Plug |
OUTPUT MODEL | |||
E Voltage |
F Complementary |
C Open Collector |
L Line driver or according to user requirement |

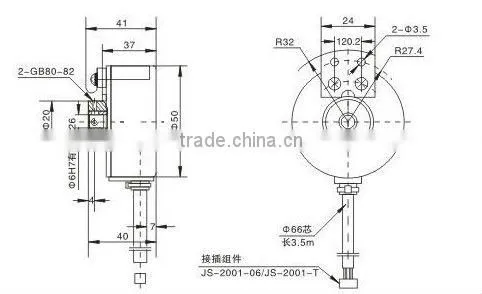

Mechanical Dimensions
