Digital Meter Counter
CT series digtal length coutner meter has function of countinglengthquantitybatchtiming through pulse input signal, widely applying for the food machinepacking machinetextile machine and other industrial field. The length counter meter can be used
together with various sensors to realise counting function, with same functions as Autonics
Features
* Multi-function, counting/ length counting/batch counting/ timing
* Dual line 6 digit display
* With counting up/ down, timing function, 8 kinds of output modes
* Selectable input signal pulse width
* Thickness only 64mm, sae installation sapce
* Panel size: 4: 48WX48HX90L 7: 72WX72HX90L
* The same function as Autonics counter

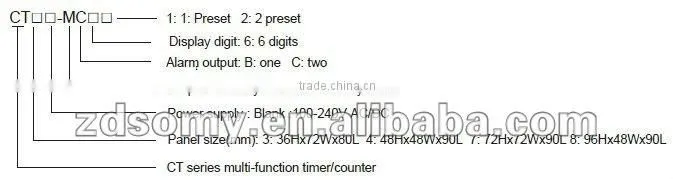

Code Inllustration
Ordering code
Model |
Panel size |
Display digit |
Batch output |
Alarm |
CT3-MB61(CT6Y) |
3: 36HX72W |
6 |
NO |
1 |
CT4-MB62(CT6Y-2P) |
4:48HX48W |
6 |
NO |
2 |
CT7-MB61(CT6S) |
7:72HX72W |
6 |
YES |
1 |
CT7-MB62(CT6S-2P) |
6 |
YES |
2 |
|
CT8-RC62(CT8-2P) |
8:48HX96W |
6 |
YES |
1 |
CT8RB61(CT8) |
6 |
YES |
2 |
Technical Specification
Power supply |
AC100-240VAC 50/60Hz 24V power supply can be ordered |
Data storage |
10 years |
CPS of INA, INB |
1cps, 30cps, 1kcps, 5kcps, 10kcps selectable |
Sensor power |
Below 12VDC±10% 100mA |
Input pulse width |
Reset input: 1ms or 20ms selectable |
Temperature |
-10°C~50°C |
INA, INHIBIT, RESET, BATCH RESET, 1ms or 20ms selectable |
Relay capacity |
NO: 250VAC 3A Impedance |
|
|
Input |
To select voltage input or non-voltage input. Voltage Input: input impedance is 5.4 KΩ, H is 5-30VDC, L is 0-2VD Non-voltage input: short circuit impedance is max. 1 KΩ, residual voltage is max.2VDC, open impedance is min.100 KΩ |
NC: 250VAC 2A Impedance |
|
One-shot output |
10/20/100/200/500/1000/2000/5000ms |
SSR capacity |
Max.30VDC, 100mA |

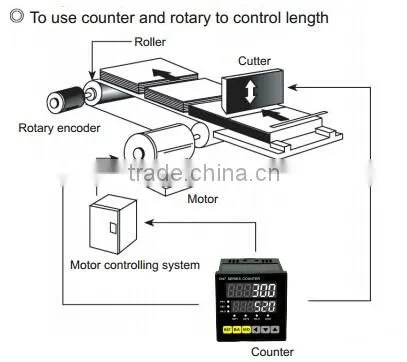

Application

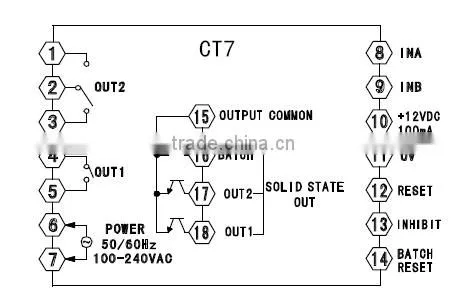

Wire Connection
1. We offer 3 years warrany period for all of our products.
2. We offer free pre-sales and after-sales service , please call to our technical support line :400-8866-986 or 86-760-88722603 if have any quesiton.
3. We offer OEM and ODM service for you , also offer design and reasearch new product for you .
4. We offer price , promotion and technical support , if you want to be our distributor in your country or region
