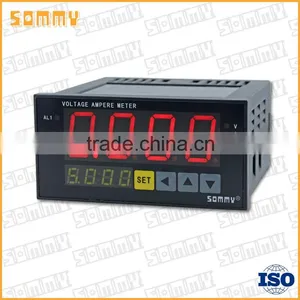

Digital Ampere Meter with RS485 and Alarm Relay Output
1. Can the digital ampere meter display both AC and DC current ?
Yes , it can be used to display AC and DC current , two input channels.
2. Does the ampere meter support current transformer or current divider ?
Yes , it support CT and current divider. And can set the CT ratio freely on the menu of the meter.
3. What is the power supply of the ampere meter ?
Our standard product power supply is 100-240V AC/DC . 24V DC is available.
4. What is your warranty period for the product ?
We offer 3 years warranty period for all of our products.
Feature
1. Accuracy:0.5%F.S
2. AC/DC universal signal input , can be used to measure the voltage or ampere
3. Different input channel has different range
4. With 2 alarms relay output
5. With one 4-20mA transmition output
6. RS485 communication interface, Modbus RTU protocol

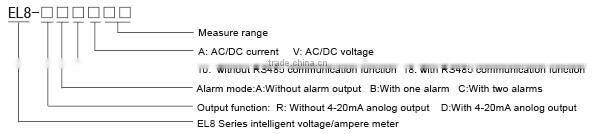

Model Illustration
| Model | Input channel and range | Alarms | 4-20mA Analog output | Communication | Default input channel and range |
| EL8-RC18V600 | IN1:0~10V;IN2:0~100V;IN3:0~600V | 2 | No | RS485 | IN3 600V |
| EL8-DC18A1 | IN1:0~10mA,0~100mA;IN2:0~1000mA | 2 | Yes | RS485 | IN2:1000mA |
| EL8-RC10A1000 | IN1:AC 0~5A IN2:DC 0~75mV | 2 | No | No | IN1:5A |
| EL8-RC18A1000 | IN1:AC 0~5A IN2:DC 0~75mV | 2 | No | No | IN1: 5A |

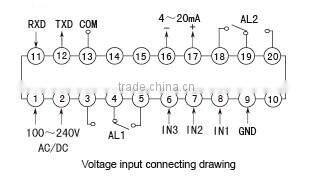

Wire Connections
