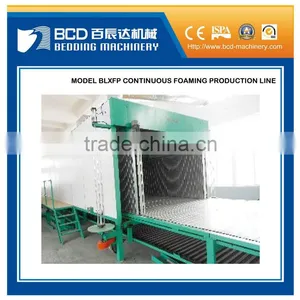

Continuous Foaming Production Line For Foaming Machinery
- 100 Set / Sets per Month
- NANJING SHANGHAI SHENZHEN
- T/T L/C D/P D/A Credit Card
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | BCD |
Model Number: | BLXFP | Voltage: | 380 | Power(W): | 130KW |
Dimension(L*W*H): | L3400*W4550*H4200mm | Weight: | 1 | Certification: | CE |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
This machine is specialized for raw material mixing and foamingContinuous Foaming Production Line For Foaming Machine

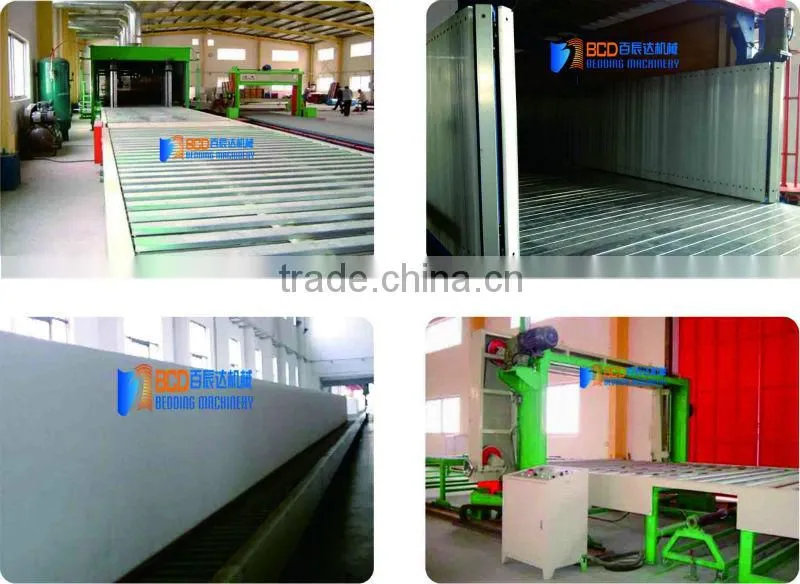

Continuous foaming production line main application and performance:
This production line is mainly used for foaming density at 10-50kg/m3,soft PU( polyurethane ) foam produce ,it adopts high automatic , more flexible human-computer interface controlling system, user may have 7 different storage foaming formulas ,formula can be changed or adjusted anytime freely ,even if accomplish remote monitor and control by internet, it makes production cost control more scientific and explicit . It can produce various ideal furniture foam , shoes foam , bra foam ,electronics foam ,used for package , garments and automobile industry .(2 options as: auto manually controlling system and auto human-computer controlling interface ).
Continuous foaming production line technical Data:
Oven length | 16.9M |
Foaming height | 1000~1300mm |
Foaming width | 1.15~2.3M |
Foaming density | 10~50Kg/m3 |
Total power | 130KW |
Link conveyor belt length | 16.9M |
Side plate adjust width | 0.98~2.4M |
Conveyor belt linear speed | 2.0~7.0M/min |
Mixer power | 37KW |
Total output | 200~350Kg/min |
Main machine external size | L3400*W4550*H4200mm |
Details:
Basic info:
Description:
1. The primary source, short production cycle, product quality guaranteed.
2. We will provide a complete after-sales service, the machine packed in wooden cases.
