YHS Adhesive Automatic Woven Bag Sealing Machine

YHS Adhesive Automatic Woven Bag Sealing Machine photo-1

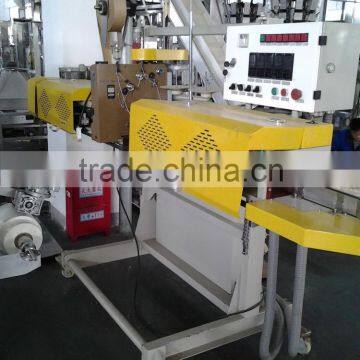

YHS Adhesive Automatic Woven Bag Sealing Machine photo-2
YHS Adhesive Automatic Woven Bag Sealing Machine photo-3
YHS Adhesive Automatic Woven Bag Sealing Machine photo-4
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Film, Foil, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port for woven bag sealing machine
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type Bags, Film, Foil, Pouch, Stand-up Pouch
Packaging Material Paper, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage AC 380v/220v/110v 50hz/60hz
Power 0.4w
Place of Origin Anhui, China
Brand Name yuanhong
Model Number YHS
Dimension(L*W*H) 2100 * 7500 * 1700 (mm)
Weight 145kg
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas

YHS Adhesive automatic woven bag sealing machine

Company Information

YHS Adhesive automatic woven bag sealing machine

1- Anhui Yuanhong Machinery Automation Co.,Ltd is a high and new technology enterprise

    which specialized in R&D and manufacture automatic packaging machine with CE and                    ISO9001 certificate since 1995.

2- Main products are vertical packing machineweighing machinesecondary automatic

     packing machine(small bags into big bag)vacuum packing machinefruit and vegetable      packing machine1kg-50kg powder and granule bag packing machine, filling machine,            detection machineelevator conveyorrobot palletizer for bags,cases, drumsautomatic        packing linebag-sewing machine and so on.

3- Especially the heavy bag (25kg-50kg) and woven bag sealing machine stay at advanced  level in the world.

Product Description

Specification---woven bag sealing machine
1. the series models use optical, mechanical, electrical integration of advanced technologies, automated and efficient.
2. the series has a variety of sealing methods, to provide users with a wide range of choices.



Equipment profile---woven bag sealing machine

YHS series stitched bag sealing machine for packing bags, paper bags or paper (PE) composite bag packaging machine can be programmed to automatically complete the removal of the packaging bag openings, trim, stitching, trimming braid, wrap tape, Paper-cut tape, sealing, lamination and counting processes. After sealing, stitching, wrap tape, excellent sealing performance hot bags can be dust, decay, pollution prevention, to make the packaging are properly protected.

Technical Parameters--- woven bag sealing machine

Namewoven bag sealing machine
Power supply (V / Hz): AC 380/220/110v  50/60hz
Drive power (W): 0.4
Sealing speed: CVT 7-12
Film material: composite film, polyethylene, polypropylene,
Film layer thickness (mm): ≤ 0.4
Sealing width: (mm): 810
Temperature range (°C) :0-400
Sealing center to ground height (mm) :950-1450
Heat capacity (W): 500 × 4
Cooling method: air cooling
Dimensions (L × W × H) (mm): 2100 × 7500 × 1700
Weight (Kg): 145



Details Images

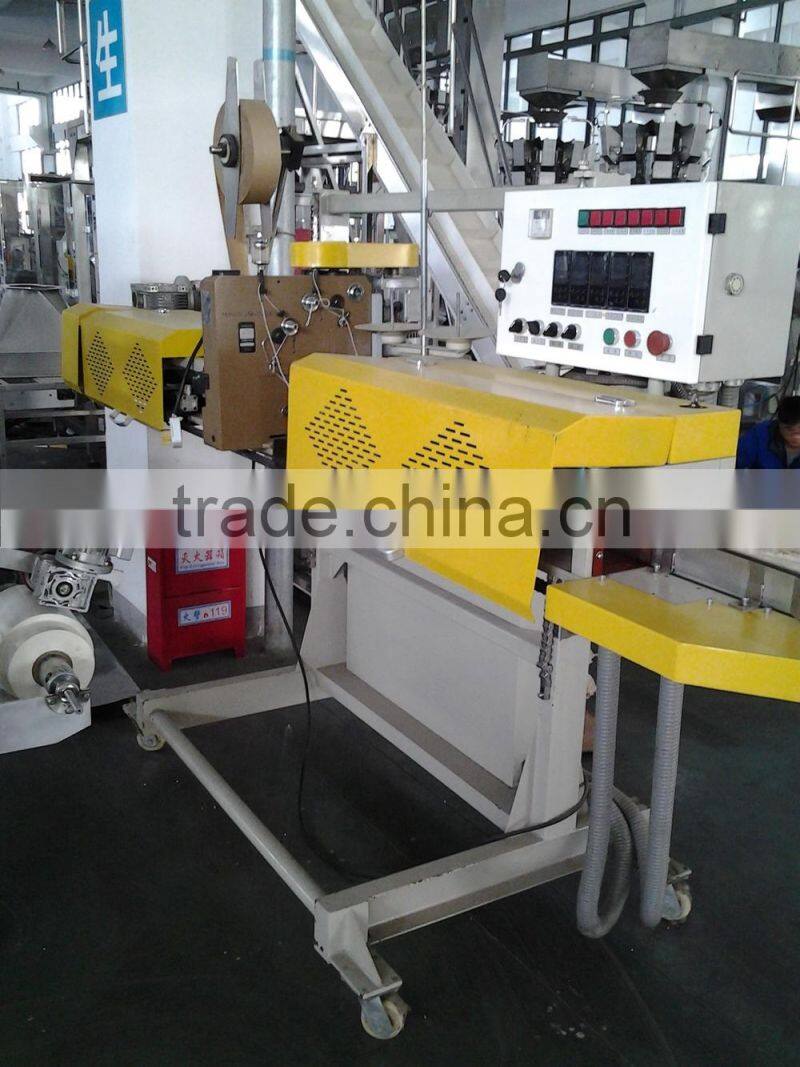

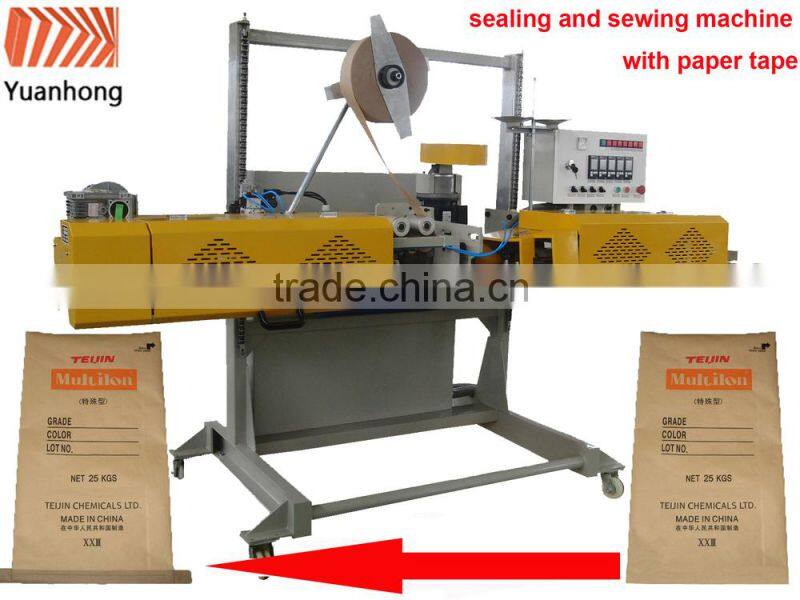

YHS Adhesive automatic woven bag sealing machine

YHS Adhesive automatic woven bag sealing machine

YHS Adhesive automatic woven bag sealing machine

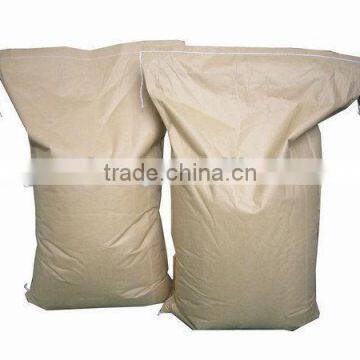

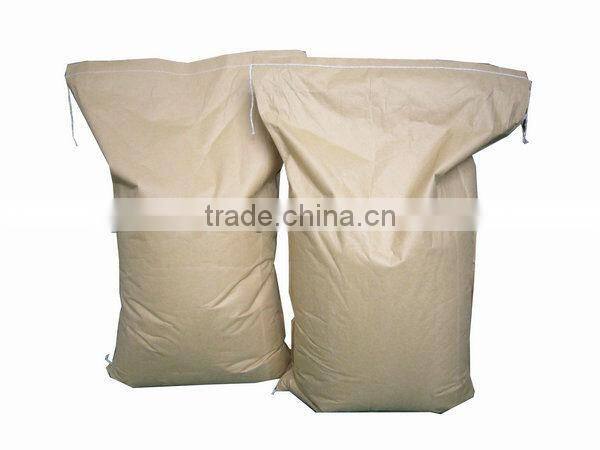

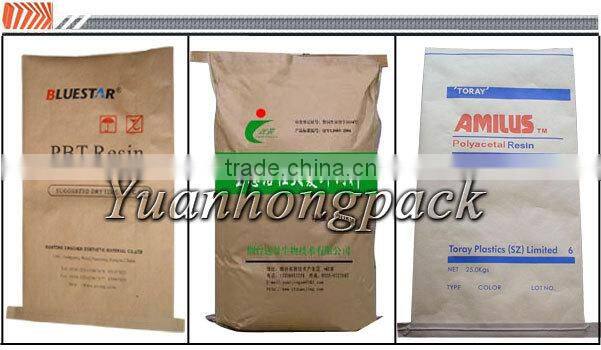

Bag samples---woven bag sealing machine

YHS Adhesive automatic woven bag sealing machine

workshop

YHS Adhesive automatic woven bag sealing machineYHS Adhesive automatic woven bag sealing machine

Packaging & Shipping

YHS Adhesive automatic woven bag sealing machine



YHS Adhesive automatic woven bag sealing machine YHS Adhesive automatic woven bag sealing machine YHS Adhesive automatic woven bag sealing machine

FAQ

1. How about engineers service oversea?

Engineers available to service machinery overseas;

2. How to use the machine?

We will supply customer the installation manual or video online;

3. Minimum order quantity and maximum order quantity?

We dont have limit for the MOQ.

4. How about the guarantee period?

One year.

5. Will you accept L/C, D/A, D/P, Western Union, MoneyGram as payment terms?

Yes, T/T, L/C, D/A, D/P, Western Union, MoneyGram is accepted.

After-Sales Service

.Find our products through http://cnyuanhong.en.china.cn,  /en etc.

.One year warranty for the whole system.

.Can arrange technician for equipment installation and debugging in your factory.

.After one year, we can help you to maintain the machine and the accessories provided only for the cost price.

.We can provide the internship service and help you train the operator and mechanic.

.Free production technology and process configuration.

.We can help you to design the product line, workshop, and provide turn-key project.
