Jinan Shun Long Machinery Co., Ltd. is one professional manufacture and supplier of Beer brewing equipment mini brewery equipment 50L-100L per batch in China.
We specialize in personally manufacturing small, medium and big sized brewery plants.
Our breweries can be designed according to the specific wishes of our customers.
We also can offer you a wide variety of technical solutions.
Email or inquiry online. Contact us.
our advantage:
1. The unite can meet the wort production requirements of self- made beer bar and can complete the whole process from grinding of raw material, material feeding, saccharification, wort filtration, boiling, settling and cooling to the final oxygenation.
2. The whole equipment are made of high quality stainless steel which meets the international and national hygiene and safety standards.
3. There are two heating methods: steam heating and electrical heating
4. Saccharification filtration tank is equipped with variable frequency mixer which can achieve the exchange of rotating speed from 50r/min and meet the requirements of rotating speed for saccharification mixing and filtration tank mixing.
5. Operation and control are achieved by automatic control or semiautomatic control with computer industrial control system.
6. Input and output of material and self- circulation are connected by sanitation material pump and hose and the cleaning adopts CIP cleaning tanker and hose connection to achieve self-circulation cleaning.
7. Connection type of pipelines for requirements is quick assembly which is convenient for cleaning, maintenance and repair during production.
8. Reasonable design, delicate, process,nice appearance,durable service, easy for operation, repair and maintenance.

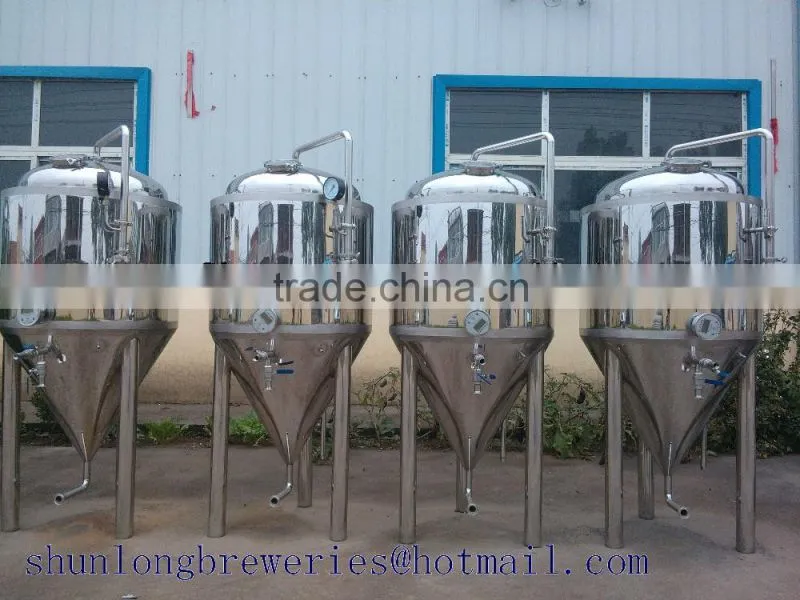

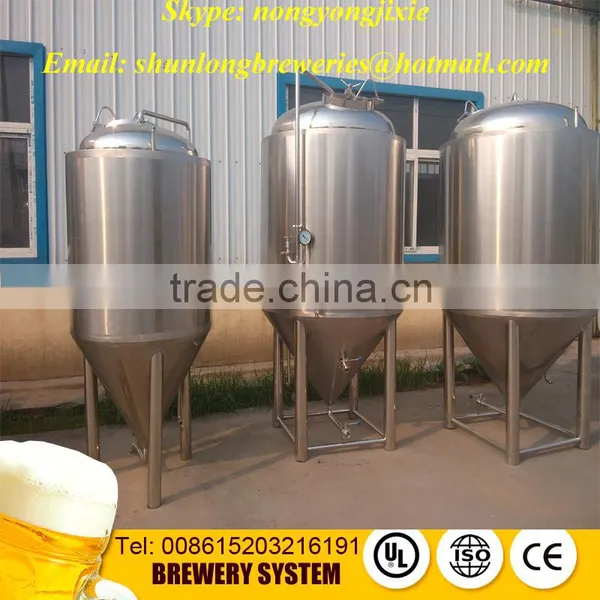

Standard features of the fermenters/unitanks/CCVs:
Conical bottom, cylindrical top, stainless steel 304 double walled jacket tanks
Bottom cone 60 degree, allow the yeast to flow towards the cone's apex
Compression resistance design, design pressure 0.3Mpa, working pressure 0.15Mpa
Stainless steel cooling jacket
Both the tank and the jacket will have 48 hours pressure test&inspection
Stainless steel legs(3 or 4), with screw assembly to adjust leg height
Dry hops adding port, racking arms optional
Stainless steel ladders for large tanks
All relative valves: pressure regulating valve, safety valve, sampling valve, drainage valve food and sanitary grade stainless steel 304 material
Single tank, single control
*Mash/Lauter tank:
Double walled with insulation layer
Equip with agitator
Grist case for large capacity tank(optional)
Milled false bottom
Side door for spent grains (automatic device for large capacity optional)
Raker with variable speep drive
Recirculation with sight glass
Ring of sparging
Buffer/grant&Wort collection outlets (optional)
*Kettle/whirlpool tank:
Double walled with insulation layer
Equip with agitator
Heating elements/heating jacket, depend on heating method adopt
Optional:
3-vessel: mash tun-lauter tank-kettle/whirlpool tank
mash/kettle tank-lauter tank-whirlpool tank(combination type optional)
4-vessel: mash tun-lauter tank-kettle-whirlpool tank
Hot water tank, Screw conveyer, Grist case optional
Process: mirro polishing, pure argon gas protecting welding, double face forming
Panel: Mirro/wire-drawing/2B optional
Shunlong Hot Sale Model Specification | |||||||
Brewery |
Fermenter |
Number of |
Beer Output |
Whole |
Cellar |
Power |
Beer Fermentation |
100L |
200L |
6 |
100L |
20 m2 |
1.6M |
15KW |
7-12days |
300L |
600L |
6 |
300L |
40 m2 |
2.2M |
25KW |
7-12days |
500L |
1000L |
6 |
500L |
70 m2 |
2.5M |
35KW |
7-12days |
1000L |
2000L |
6 |
1000L |
100 m2 |
3.1M |
40KW |
7-12days |
2000L |
4000L |
6 |
2000L |
140 m2 |
4.0M |
45-50KW |
8-14 days |
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
1. Q: Do your products could be customized?
A: Yes, the beer equipment could be customized.
2. Q: Do you supply after-sales service?
A: Yes, we could supply after-sales service. We have 6 full-time engineers and other 4 part-time engineers available to go abroad to train installing and brewing.
3. Q: How long will the full set of equipment be guaranteed?
A: Three years warranty for main machine, one year warranty for the accessories.
4. Q: Are you trading company or manufacture?
A: We are a professional manufacture of beer equipment in this field.
5. Q: How is the proportion of your domestic market and foreign market?
A: 40% for domestic market, and 60% for foreign market.
6. Q: How long will the full set of equipment be shipped to us if we order it?
A: It will take 30-40 days to produce the full set of equipment.
7. Q: What should we do if there are problems during the process of using the equipment?
A: Firstly, we will communicate through email, skype or telephone, but if any accessory parts lead to problem, the accessory parts will be posted to you. If problems cannot be solved by all above mentioned method, our engineer will go abroad to solve for you.
8. Q: Do you also sell raw materials of brewing beer?
A: Yes, we do. We sell different kinds of raw materials including hops, yeast and malt.
1. Main tanks, vessels and machines will be packaged with painted steel frames.
2. All spare parts, accessories and fittings will be packaged with painted steel box.
3. All items wrapped with soft package for protection.
4. Standard shipping containers will be used for general purpose.
5. All equipments will be loaded into containers according to exact container layout drawings.
6. After loaded into containers, all equipments will be well fixed to the containers.
Professional Pre-service:
- We can supply design service free according to customers’ request.
- We can supply budget assessment service upon our many years’ experience.
- Customers are welcome to come to our plant base to visit and inspect, and we would like to give a warm reception.
Sound After-service:
- Our brewmasters or engineers are available to supply service at buyers’ appointed places.
- We will give timely effective instruction about application of equipment as best as we can.
- We supply turn-key project.
