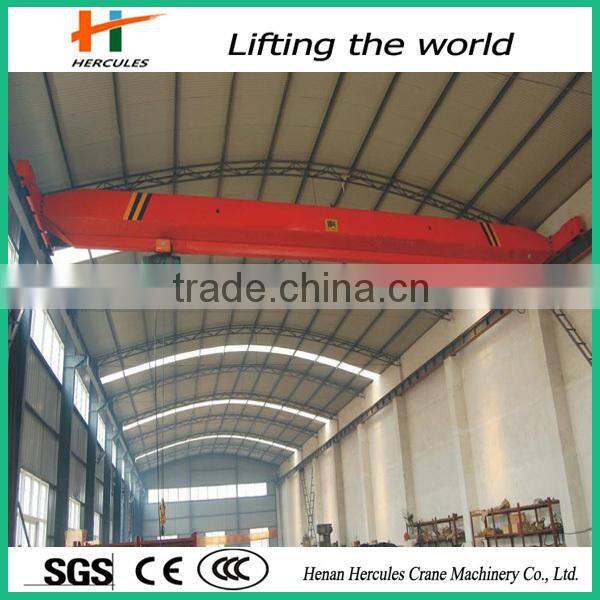

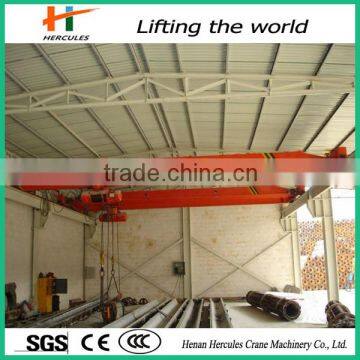

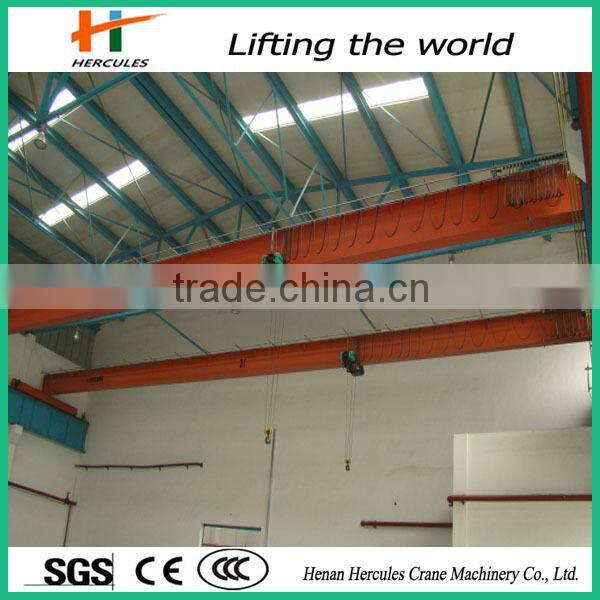

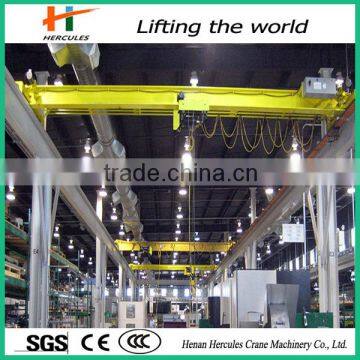

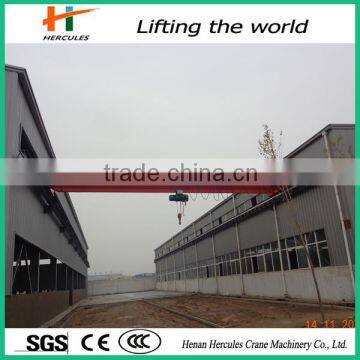

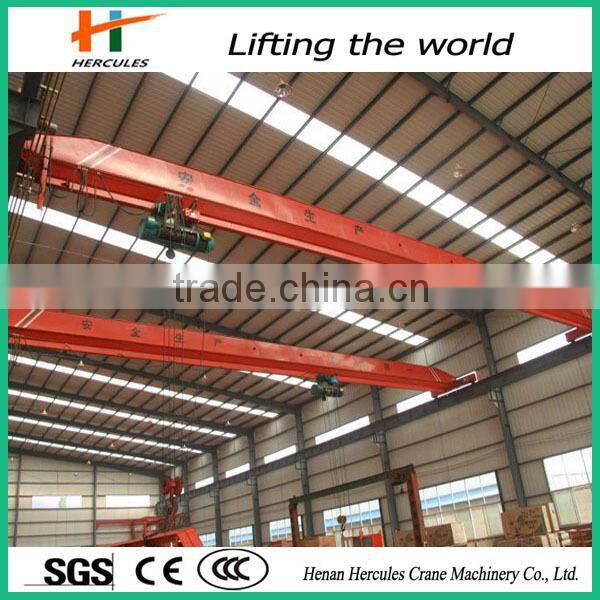

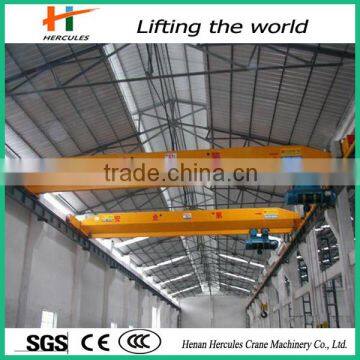

LDP Type Single Girder Bridge Crane
LDP electric single-girder crane is a small –size low headroom crane. The electric hoist is at
one side of the girder, which increases the work space of the hook and reduces the workshop height and cost. It is applicable to the places where the workshop's headroom is low.

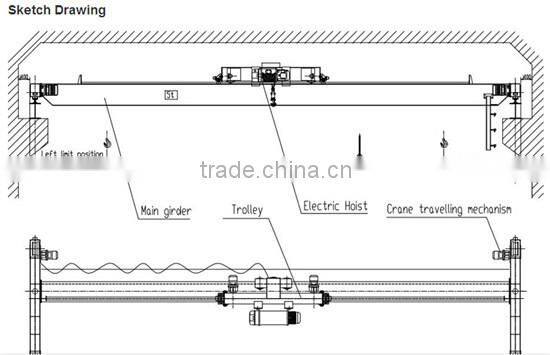

The crane is composed of box-shaped girder weld by steel plates, end girder, crab and traveling
mechanism. The crab consists of traveling end girder, cram frame and fixed electric block. The crab is partially hung and runs at one side of the girder. The electric hoist is raised to the upside of the girder from under the girder, which effectively increasing the lifting altitude.
Technical Specification
|
Lifting capacity (T) |
1,2,3,5,10T |
16,20T |
|||||||||||
Span(M) |
7.5-31.5M |
||||||||||||
|
Overhead Crane travelling mechanism |
Travelling speed (m/min) |
20 |
30 |
45 |
60 |
75 |
20 |
30 |
45 |
60 |
75 |
||
Reducer ratio |
58.78 |
39.38 |
26.36 |
19.37 |
15.88 |
58.78 |
39.38 |
26.36 |
19.37 |
15.88 |
|||
Motor |
Model |
ZDY21-4 |
ZDY21-4 |
ZDY 122-4 |
ZDY 131S-4 |
ZDY 112L1-4 |
|||||||
|
Power (kw) |
2×0.8 |
2×1.5 |
1.5×2 |
2.2×2 |
2.2×2 |
||||||||
|
Rotation (m/min) |
1380 |
1380 |
|||||||||||
|
Lifting mechanism &electric hoist travelling mechanism |
Electric hoist model |
CD1/MD1 |
MD1/HC |
||||||||||
|
Lifting speed (m/min) |
8,8/0.8 7,7/0.7 |
3.5 3.5/0.35 |
|||||||||||
|
Lifting height (m) |
6 ,9 ,12, 18, 24, 30 |
12,18,24,30 |
|||||||||||
|
Travelling speed (m/min) |
20(30) |
20(30) |
|||||||||||
Motor |
Taper Squirrel-cage type |
Taper Squirrel-cage type |
|||||||||||
Work duty |
A3-A5 |
||||||||||||
Power supply |
380V 50HZ three phase or according to your requirements |
||||||||||||
Other Type Products
Factory View
Buying Guides
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Our company is a professional manufacturer who specializes in producing and selling cranes
and components. The factory covers an area of 38000 square meters. As professional engineering machinery accessories supplier, we provide high quality products and excellent services for a variety of dock, subway construction, river cleaned, building dismantlement, municipal engineering and other large projects. Our products are exporting to more than 40 countries and regions.
Certifications
(1).What is the lifting capacity?
(2).What is the lifting height?
(3).What is the power supply in your country?
(4).Is there any other special requirements?
