High Duty Electric Double Girder EOT Bridge Crane Manufacturer In China
Production Description of Electric Double Girder EOT Bridge Crane

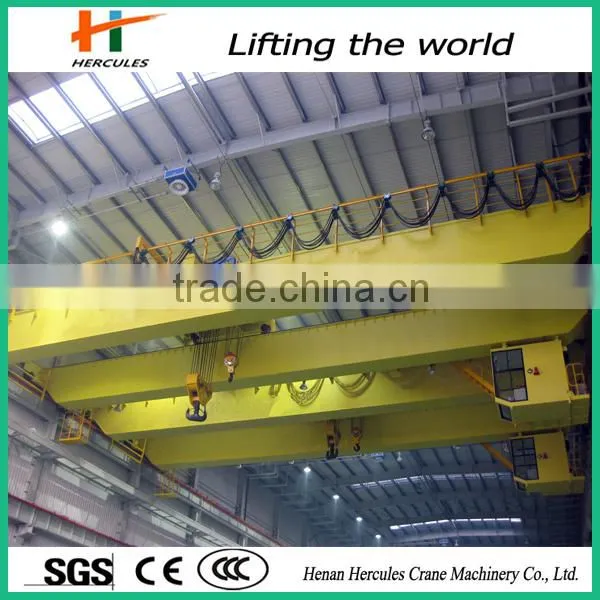

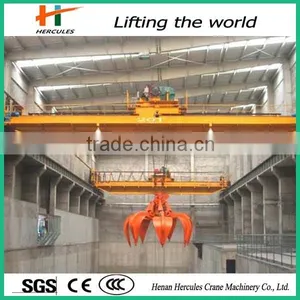

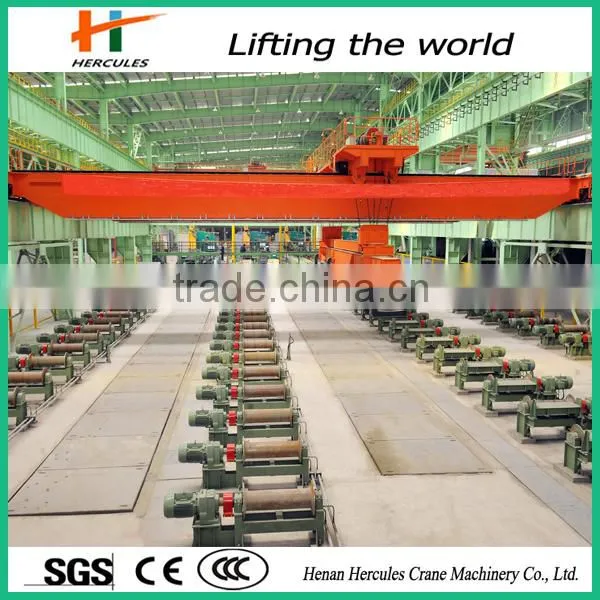

The Double Girder Overhead Crane are widely used for Hydro Power Station, Power Plant, Steel Mills, Paper Mill, Storge and Each kinds Factory Workshop. The Double Girder Overhead Crane are consists of Main Girder, End Carriage, Lifting Trolley and Electrical Parts.
Following demands as optional for the QD type Double Girder Overhead Crane:
1. Capacity: 5t-500t
2. Span: 5-40m
3. Working Class: A5-A8 (FEM 2m-5m)
4. Speed
5. Control Method: Pendent, Remote and Cabin Control
5. Power Source and Painting Color as your demands
6. According to your specific usage, specific model and design will offer.
Following features for the QD type Double Girder Overhead Crane:
1. Heavy Duty and High Efficient
2. Suitable for any environment ( High Temperature, Explosion Proof and so on)
3. Long Life Span: 30-50years.
4. Easy for Installation and maintenance.

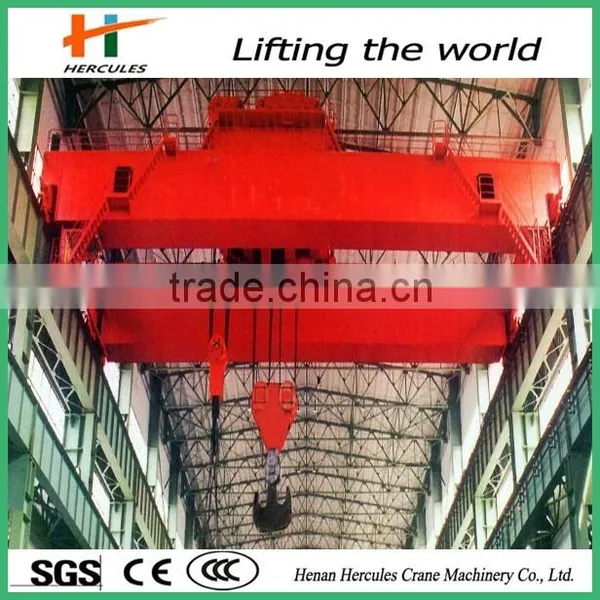

Lifting Trolley is the most important mechanism of Crane, with one hook or two hooks, even three hooks. The trolley are assembled with motor, reducer, brake, trolley frame, drum, hook, pulley, rain cover and other parts. It includes lifting mechanism and cross traveling mechanism.
Electric Parts are consists by Control Box, Control Panel and Power Supply System. The electric parts we use Chinese top brand: Chint, and the Siemens, Schneider, ABB and Yaskawa are optional brand.
Technology of Electric Double Girder EOT Bridge Crane
| Lifting and Travelling Mechanism | ||||||
| Capacity/ Lifting Weight | T | 32/5,50/10 | ||||
| Span | m | 18~35 | ||||
| Lifting height | Max.hook | m | Max.12 | |||
| Aux.hook | m | Max.12.918 | ||||
| Operation method | Cabin control,wireless control | |||||
| Speed | Lifting | m/min | 10/11 10/12 | |||
| Handcart travel | m/min | 37 36 | ||||
| Cart travel | m/min | 39.4 38.5 | ||||
| Lifting mechanism | type | Electric winch trolley | ||||
| Steel track | 43kg/m QU70 | |||||
| Working class | A5 | |||||
| Power supply | AC | 3-PhaseA.C.50HZ 380V | ||||
| Electric Parts | ||||||
| Main electric parts | Siemens brand | |||||
| Weight overload protection device | Included | |||||
| Crane traveling limited switch | Included | |||||
| Voltage lower protection function | Included | |||||
| Motor | Heavy duty slide ring type, top quality in China | |||||
| Gear and wheel | Manufacture by our own group, so the high quality could be controlled. | |||||
| Wire rope | Steel core | |||||
| Hook and pulley | Close type | |||||
| Buffer | Polyurethane material | |||||
| Anti-collision system | Included | |||||
| Brake | Electric hydraulic | |||||
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe | |||||
| Place of Origin: | Shandong in China | |||||
| Serial / Model No.: | A Model | |||||
| Trademark / Brand: | JNDO | |||||
| Packing: | Packing by woven plastic cloth, electrical parts and other parts packaged in high quality plywood cr | |||||
| Unit Price: | ||||||
| Minimum Order: | 1 Set/Sets | |||||
| Remark | Above information just for reference, detail parameter based on different lifting weight. | |||||
Packaging & Shipping of Electric Double Girder EOT Bridge Crane
Our Services
Sale Service: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Certifications

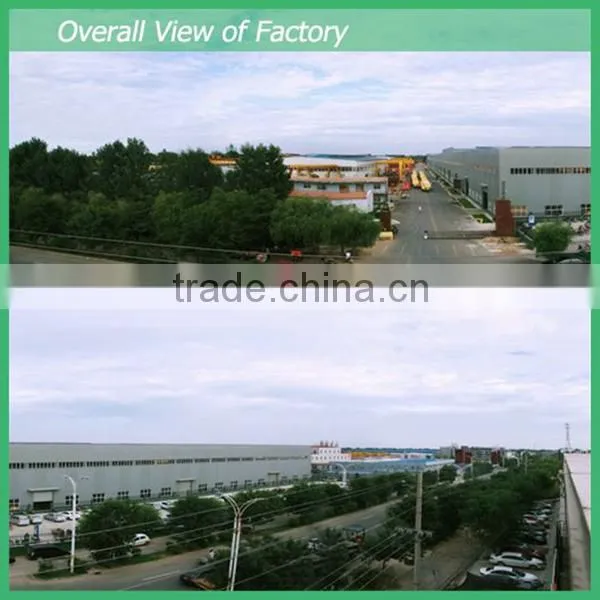

Company Information
FAQ
1.Q: Do your products can be customized?
A: Yes,all kinds of our products can be customized design according to client's demands.
2.Q: What kinds of certificates about your products?
A: We have CE,BV,SGS,GOST certificates,of course our products can make some other certificates according to our clients' specific requirements.
3.Q: What information do I need to provide?
A: Normally,we need our customer to provide below information:
> Lifting capacity and height
> Span (rail center to rail center )
> Working condition and voltage ( V,HZ,Phase)
