50L Small Brewery Equipment Home Conical Fermentation Tanks

50L small brewery equipment home conical fermentation tanks

The Introduction of the home brewery equipment :

The size:2000x660x1800mm

The weight:30kg

The total power:4kw

The production capacity:50L per batch.

The control:square tables control

The temperature:automatic control fermenting

The worling pressure:≤0.2MPA

Home brewery equipment technology specifications:

1.Outside surface:stainless steel 304/red copper material/copper plating.

2.Tanks thickness:Inner tank 3.0mm.outer tank 2.0mm

3.Top shape:seal head or conical head

4.Heating way:electric heating/direct fire heating

5.Insulation layer:Protected by rockwool,thickness 80-100mm

6.Polishing precision:≤0.4μm

7.Manhole:top manhole or flange.

8.Spray ball:in the center of the inside tank

9.Chimney:On the top of the tank

50L home brewery conical fermentation tanks:

The 50L small brewery equipment use the wooden case packaging,then for LCL shipping.

The details pictures for the home brewery:

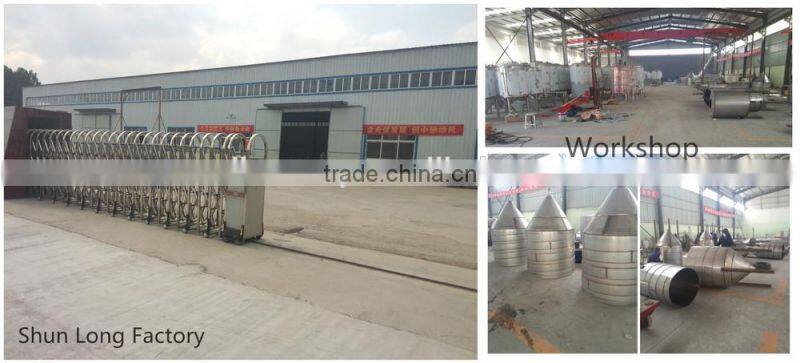

Our company introduction:

Shunlong offers its customers a complete brewing solution ranging from customized equipment design, planning, structural compliance requirements, process control management systems, brewing training, maintenance support, and Effluent treatment systems meeting Environmental Pollution control norms. Whether you are setting up a microbrewery from scratch, or looking to upgrade your existing Micro Brewery equipment, Shunlong has the solution for you.

We mainly have the following kinds of equipment:50L/D,100L/D, 200L/D, 300L/D, 400l/D,500L/D,600L/D,800L/D, 1000L/D, 1200L/D,1500L/D,1800L/D,2000L/D, 2300L/D,2500L/D,3000L/D,5000L/Detc. We can produce the equipment according to clients’ requirments. Our equipment is mainly applied in hotels, bars, barbecue, small and medium sized breweries and so on. As for the price, different products and specifications means various prices

If you don’t have experience in this field, you can choose our standard solution as below:

If you are interested in our beer equipment,please don't hesitate to contact me any time.

Welcme you to china to visit our factory !
