Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller

Name: Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller
Brand: Holley / Hisolar
SKU: 127898545
Availability: InStock

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller thumbnail-1

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller thumbnail-2

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller thumbnail-3

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller thumbnail-4

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller thumbnail-5

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller thumbnail-6

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller photo-1

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller photo-2

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller photo-3

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller photo-4

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller photo-5

Trending Hot Products 2016 40 A Waterproof Mini Solar Charge Controller photo-6

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Holley / Hisolar

Model Number:

ENS12/24-40

Contact Supplier Request Quote Chat Now

Zhejiang Holley International Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Holley / Hisolar

Model Number ENS12/24-40

Application Collector Controller

Rated Voltage Other, 12/24V

Maximum Current 40A

Product Description

Trending hot products 2016 40 A waterproof mini solar charge controller.

Features:
Overcharge protection.
Short circuit protection (automatic restoration).
Easy to install and use.
Save energy and electricity consumption.
Environment friendly, lower-cost.
Suitable for polytype battery.
Thunder protection.
Reverse polarity connection protection.

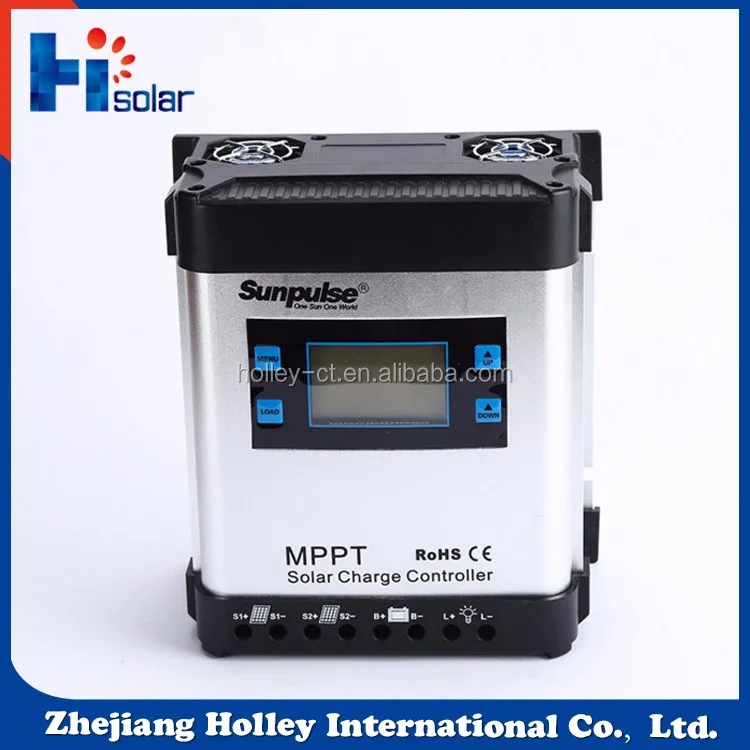

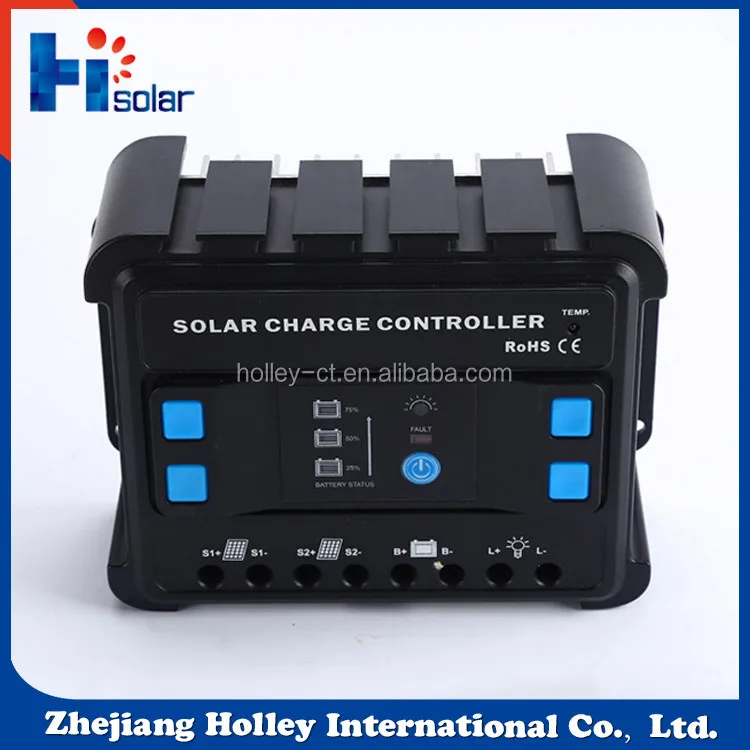

Detailed Images

Technical data

Model	ENS12/24-20	ENS12/24-30	ENS12/24-40	ENS12/24-50	ENS12/24-60
Normal Voltage	12/24V, automatic recognition
Nominal Battery Charge Current	20A	30A	40A	50A	60A
Max. PV Input Power	300W@12V 600W@24V	450W@12V 900W@24V	600W@12V 1200W@24V	750W@12V 1500W@24V	900W@12V 1800W@24V
Max. Solar Input Voltage Voc	>30V/48V
Min. Solar Input Voltage Vmp	>16V/32V
Power Conversion Efficiency	Max. 90%
Standby Power Consumption	<15mA	<15mA	<20mA	<20mA	<20mA
Length≤1m Charge Loop Drop	<0.25V
Length≤1m Discharge Loop Drop	<0.05V
Temperature Compensation	-3 mv/cell *K
Dimensions	172126.373mm(LWH)
Weight	0.35kg	0.36kg	0.38kg	0.4kg	0.4kg
Ambient Temperature Range	-40 to +50ºC
Case Protection	IP22
Float Charge	13.8V/27.6V
Constant Voltage Charge	14.6V( 14~15V settable )29.2V (28~30V settable)
Low Disconnect Voltage	11V( 10.4~11.4V settable)/ 22V( 20.8~22.8V settable)
Low Reconnect Voltage	12.8V( 12.2~13.2V settable)/ 25.6V( 24.4~26.4V settable)
Grounding	Positive grounding
Battery Type	GEL, AGM, Solar battery etc.

Packing & Delivery

Certifications

GEL, AGM, Solar battery 20A industrial solar charge controller.

Rated Voltage: 12/24V
Maximum Current: 20A

14.5V / 29V Boost charge 15A best solar charge controller.

Rated Voltage: 12/24V
Maximum Current: 15A

2016 New products 50A 12 / 24V led display solar charge controller ENS12/24-50.

Rated Voltage: 12/24V
Maximum Current: 50A
