Help CenterKerb Brick Machine QT9-15 Not Clay Machine
Related Products
-
Highly Welcome Fully Automatic Fly Ash Block Making MachineUS$ 18,000 - 60,000MOQ: 1 Set -
ZS10-15Automatic Concrete BRICK MAKING MACHINEUS$ 18,000 - 62,000MOQ: 1 Set
-
Cement Block Machines QT10-15US$ 12,000 - 50,000MOQ: 1 Set
-
Concrete Block Machine Production LineUS$ 12,000 - 60,000MOQ: 1 Set
-
China QT6-15 Automatic Concrete Block MachineUS$ 18,000 - 55,000MOQ: 1 Set
Specifications

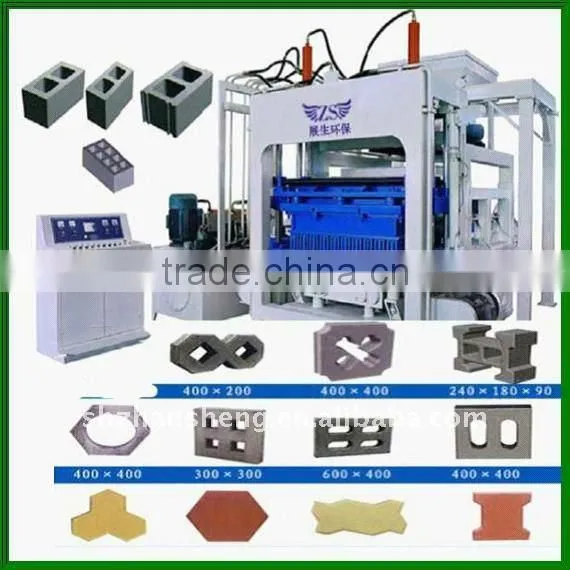

kerb brick machine QT9-15 not clay machine1.Multifunction
2.Mitsubishi PLC
3.ISO9001 certificate
4.12 months guarantee
Machine Specifications
Main Technical Parameter |
||||||
Overall Size (mm) |
3250x2690x2720mm |
|||||
Molding Cycle |
15-18s |
|||||
Power(KM) |
46KW |
|||||
Pallet size |
1100x680x25mm |
|||||
Host weight |
App.10T |
|||||
Master Frequency |
3000-4500 R/Min |
|||||
Rated pressure |
32Mpa |
|||||
Exciting force |
70-80KN |
|||||
|

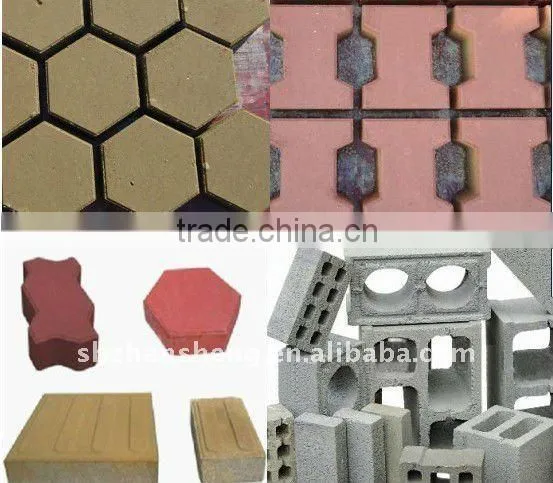

List of Theoretical Production Capacity |
||||||
Products |
Specifications |
Pc/Mould |
Pc/Day |
Pc/Year |
||
Standard Brick |
240x115x53mm |
40 |
76,800 |
23,040,000 |
||
Hollow Block |
390x190x190mm |
8 |
15,360 |
4,608,000 |
||
Multi-hole Brick |
240x115x90mm |
20 |
38,400 |
11,520,000 |
||
Pathway Brick |
200x100x60mm |
26 |
34,112 |
10,233,600 |
||
Product Description
1) Uses MITSUBISHI PLC control system and Touch Screen.
A. Visualization screen with easy operation;
B. Is able to set up, update and amend the production perimeters, to maximize the production output;
C. Dynamic display of the system’s status, automatic trouble shooting and warning notice;
D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes;
E. Is able to troubleshoot the machinery via teleservice.
2) Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated high-pressure and soft oil pipes, with easy installation;
3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;
4) Integrated structure of vibrating and molding platforms, which reduces the weight of the machine, and improves the vibrating efficiency;
5) Uses one single motor to drive the vibrator via transmission shaft, avoiding the inconsistency of double motors, so as to save the power;
6) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise;
7) Maintenance-free hinge bearings on the hydraulic cylinders and driving rods, screw able straps on lever arms for easy exchange of blots, extension of guide bearings for absolutely parallel and tilt lift movement of mould and tamper head;
8) Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant.
