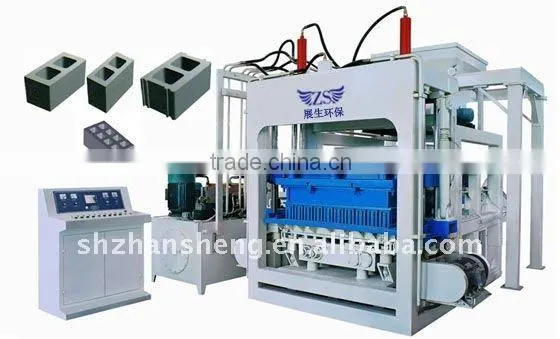

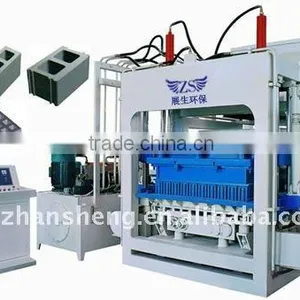

Fully Automatic Brick MachineQT9-15

Name: Fully Automatic Brick MachineQT9-15
Brand: ZHANSHENG
SKU: 127874403

US$ 18,000 - 55,000 MOQ: 1 Set

Key Specifications

Type:

Hollow Block Making Machine

Brick Raw Material:

Concrete

Processing:

Brick Production Line

Shanghai Zhansheng Environmental Protection Equipment Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Hollow Block Making Machine

Brick Raw Material Concrete

Processing Brick Production Line

Method Hydraulic Pressure

Automatic Yes

Place of Origin Shanghai, China

Brand Name ZHANSHENG

Model Number ZS-QT9-15

Specifications

1Multifuction
2PLC control system
3Huge output
4Complete service and nice price
5Little investment

Main Technical Specifications
Production per Mould:	9pcs/mould (Standard Block: 400x200x200mm)
	50pcs/mould (Solid Block: 240x115x53mm)
	25pcs/mould (Porous: 240x115x90mm)
	25pcs/mould (Holland Brick: 200x100x60-80mm)
Cycle Time:	15-17 seconds
Production per Shift (8 Working Hours):	Hollow Block (400x200x200mm): 15192-17280pcs
	Solid Block (240x115x53mm): 84400-96000pcs
	Porous (240x115x90mm): 42200-48000pcs
	Holland Brick (200x100x60-80mm): 32600-36000pcs
Max. Vibrating Frequency:	3000-4500rolls/minute
Vibrating Force:	80-120 KN
Motors Power:	49.2 KW
Machine Dimensions:	6550X2500x2680mm (excluding electrical control box)
Pallet Size:	1340X680X23mm
Gross Weight:	About12.5T
Raw Materials:	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products:	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:	widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

Main Technical Parameter

Overall Size (mm)		3250x2690x2720mm
Molding Cycle		15-18s
Power(KM)		46KW
Pallet size		1100x680x25mm
Host weight		App.10T
Master Frequency		3000-4500 R/Min
Rated pressure		32Mpa
Exciting force		70-80KN
List of Theoretical Production Capacity

Products	Specifications		Pc/Mould	Pc/Day	Pc/Year
Standard Brick	240x115x53mm		40	76,800	23,040,000
Hollow Block	390x190x190mm		8	15,360	4,608,000
Multi-hole Brick	240x115x90mm		20	38,400	11,520,000
Pathway Brick	200x100x60mm		26	34,112	10,233,600
