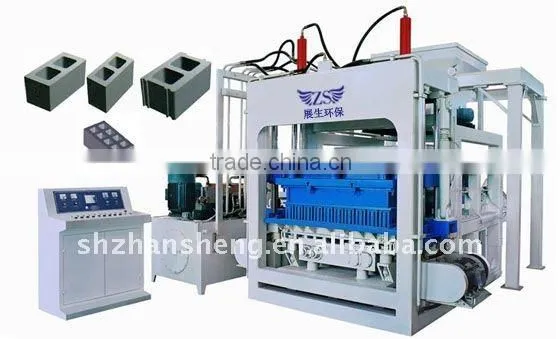

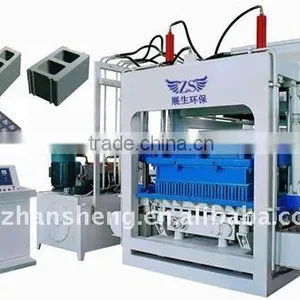

Help CenterFully Automatic Block Making MachineZS-QT10-15
Related Products
-
Automatic Concrete Brick Making Machine ZS-QT8-15US$ 20,000 - 55,000MOQ: 1 Set -
QT8-15 Hollow Block Making MachineUS$ 12,000 - 55,000MOQ: 1 Set
-
China Shanghai Automatic Hollow Block Making MachineUS$ 12,000 - 55,000MOQ: 1 Set
-
Fly Ash Bricks Making MachineUS$ 15,000 - 55,000MOQ: 1 Set
-
QT8-15 Full Auto Block Machine Production LineUS$ 12,000 - 55,000MOQ: 1 Set
Specifications
1 Multifuction2 PLC control system
3 Convenient to operate and maintain
4 Huge output
5 Long operate life
Main Technical Specifications | |
|
Production per Mould: |
10pcs/mould (Standard Block: 400x200x200mm) |
52pcs/mould (Solid Block: 240x115x53mm) | |
36pcs/mould (Porous: 240x115x90mm) | |
36pcs/mould (Holland Brick: 200x100x60-80mm) | |
Cycle Time: |
15-17 seconds |
Production per Shift (8 Working Hours): |
Hollow Block (400x200x200mm): 16880-19200pcs |
Solid Block (240x115x53mm): 87776-99840pcs | |
Porous (240x115x90mm): 60768-69120pcs | |
Holland Brick (200x100x60-80mm): 46944-51840pcs | |
Max. Vibrating Frequency: |
3000-4500rolls/minute |
Vibrating Force: |
60-80 KN |
Motors Power: |
43 KW |
Machine Dimensions: |
7250X2500x2680mm (excluding electrical control box) |
Pallet Size: |
1080X860X23mm |
Gross Weight: |
about 13.5T |
Raw Materials: |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |

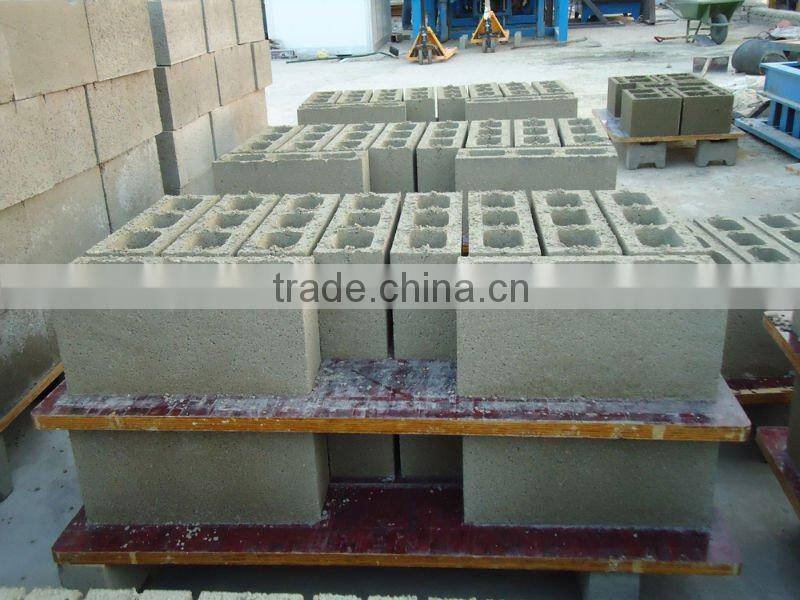

Applied Products: |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields: |
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
