Specifications
1.Manufacturer2.Factory(in Shanghai China)
3.power saving 30%
4.Mitsubishi PLC control
5.CE, ISO9001, ISO14000, BV, CTC
QT 4-15 Block Making Machine
Main Technical Specifications of QT 4-15 Block Making Machine | |
|
Production per Mould: |
4pcs/mould (Standard Block: 400x200x200mm) |
26pcs/mould (Solid Block: 240x115x53mm) | |
14pcs/mould (Porous: 240x115x90mm) | |
16pcs/mould (Holland Brick: 200x100x60-80mm) | |
Cycle Time: |
15-17 seconds |
|
Production per Shift (8 Working Hours): |
Hollow Block (400x200x200mm): 6752-7680pcs |
Solid Block (240x115x53mm): 43888-49920pcs | |
Porous (240x115x90mm): 23632-26880pcs | |
Holland Brick (200x100x60-80mm): 20864-23040pcs | |
Max. Vibrating Frequency: |
3000-4500rolls/minute |
Vibrating Force: |
80-100 KN |
Motors Power: |
35KW |
Machine Dimensions: |
4950X3500X2580mm (excluding electrical control box) |
Pallet Size: |
850X540X17mm |
Gross Weight: |
about 5.5T |
Raw Materials: |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products: |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields: |
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc. |
Main Features of Block Making Machine
|
1) Uses Japan Mitsubishi PLC control system and Delta Touch Screen. A. Visualization screen with easy operation; B. Is able to set up, update and amend the production perimeters, to maximize the production output; C. Dynamic display of the system’s status, automatic trouble shooting and warning notice; D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes; |
|
2)Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated highpressure and soft oil pipes, with easy installation; |
|
3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well; |
|
4) Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency; |
|
5) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise; |
| 6)Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant. |
Block Making Machine Process
The Service about Block Making Machine
| Sale-in Service |
|
1. Supervise the construction of foundation which includes electricity, water and other related amenities; 2. Our engineer will help to train the managers and technicians. Course including: factory management, equipment maintenance, quality control, stocking, marketing etc;
|
| After-sales Service |
|
1. Set up individual client's archives with all their needs and detailed to be attended;
|
| Extended Service |
| 1. Free Control System Upgrade. 2. Constant equipment and moulds improvement. 3. Newsletter:onalert to the latest industry trends and application. 4. Always advise new technology and craftsmanship application. |
Professional term introduce of Block Making Machine
1.Table vibration: |
Energy from the vibration table through the pallet to the mixture, make the mixture density. |
2.Pressure vibrating: |
Pressure head of mould down to the top surface of concrete,at the same time vibration start.Pressure with vibrating. |
3.Feed vibrating: |
Small vibrating when the material feeding car at the top of the mould frame,let the concrete easy to fall down to the mould frame. |
4.Green block: |
Block just forming by the machine,without curing. |
| 5.Demoulding: |
Separate the finished block from the mould. |

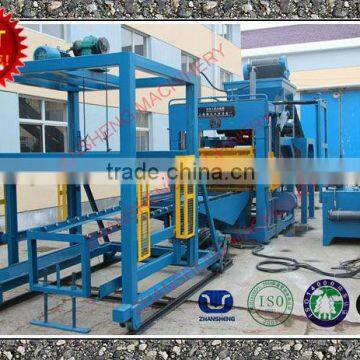

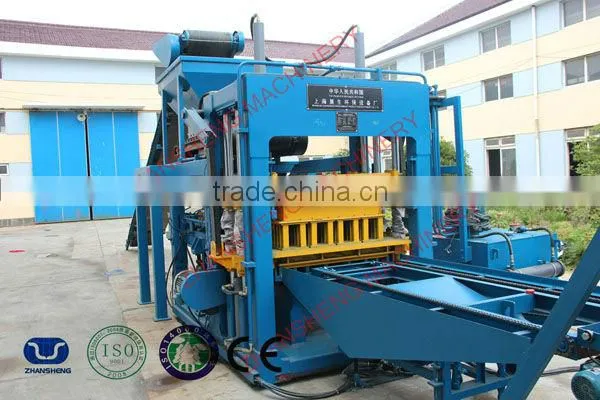

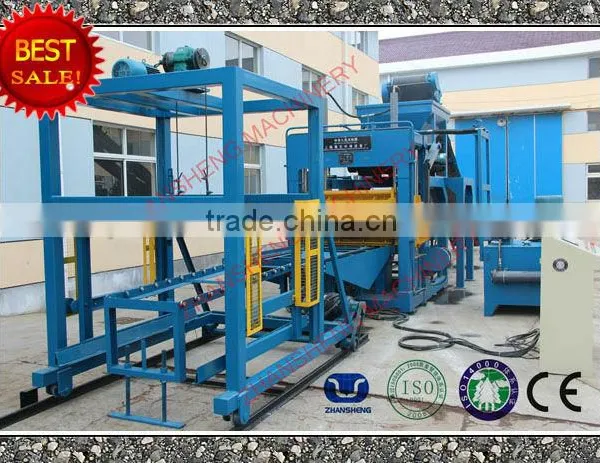

Block Making Machine
Block Making Machine Production Line

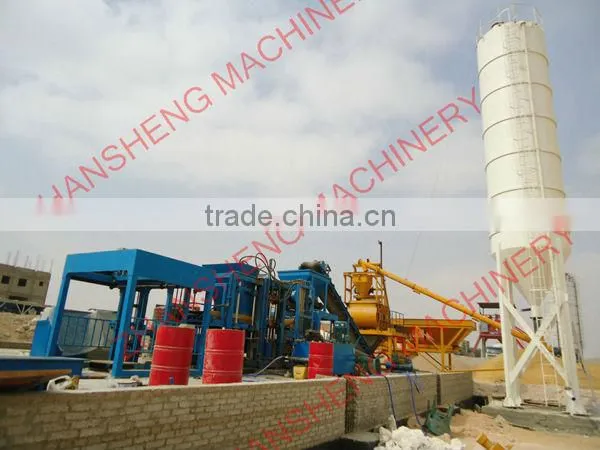

Actual Block Making Machine Line
Workshop
Our Block Making Machine Customers
The Production and raw materials of Block Making Machine
Dear customer, if you are interested in our Block Making Machines, please kindly tell me the size of the block/brick/pavers you want to produce, and the production capacity per day/year, then I can recommend a suitable model to you. Welcome your contact!
