Specifications
Hydraulic Ram#High strength alloy Cylinder
#Bi-directional hydraulic lock
#Short lifting time
# lifting force 120KN

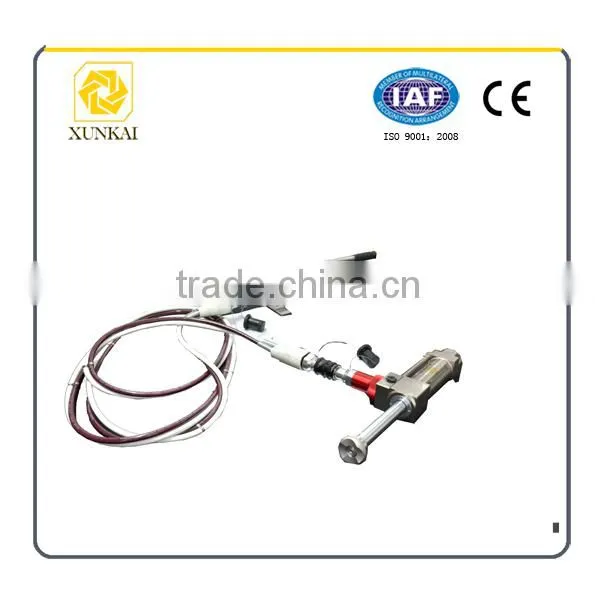

Car Rescue Tool Hand Pumb Hydraulic Ram
A-HYDRAULIC RAM APPLICATION:

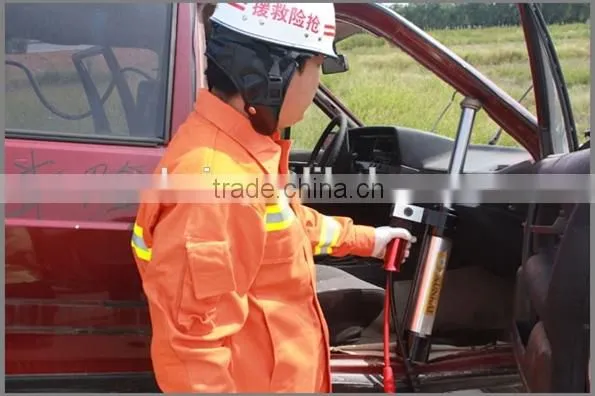

Highway, railway accident rescue, air crash and beach relief; Buildings and disaster relief.
B-HYDRAULIC RAM FEATURES:
1.Two stages of max. lifting force 208KN;
2.Bi-directional hydraulic lock and automatic reset manual valve operation can ensure the operator security during working when occur unexpected encounters;
3.Short lifting time needed accelerates the rescue process.
C-HYDRAULIC RAM SPECIFICATIONS:
Model |
XHR-120/475-A |
|
Rated Working Pressure |
700bar |
10150 psi |
Max. Extending Force |
120KN(12T) |
26500 lbs |
Closed Length |
≤475mm |
≤18.7 in. |
Extending Scope |
475-1325mm |
18.7-52 in. |
|
Length of Extending Bar Ⅰ/Ⅱ/Ⅲ |
100/175/275mm |
4/6.9/10.8 in. |
Weight |
≤11.3kg |
≤25 lbs |
Dimension(L*W*H) |
475*84*300mm |
18.7*3.3*11.8 in. |
D-HYDRAULIC RAM PICTURE DESCRIBE:
Thanks for your time, welcome for more information!
