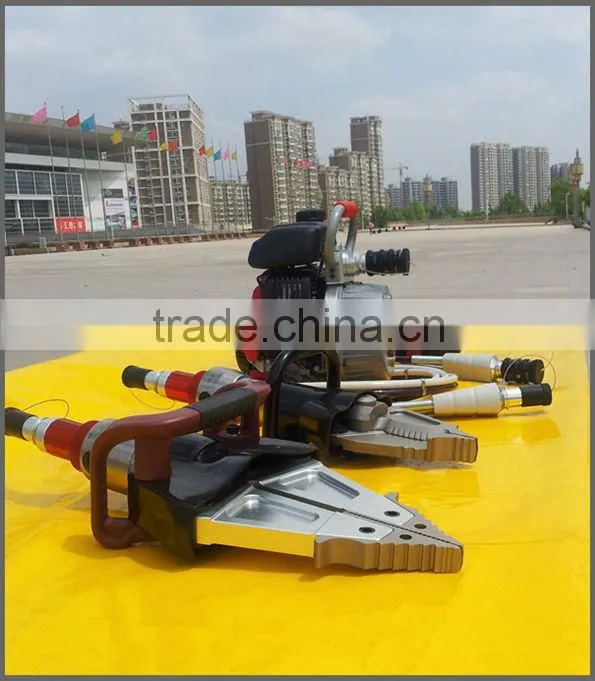

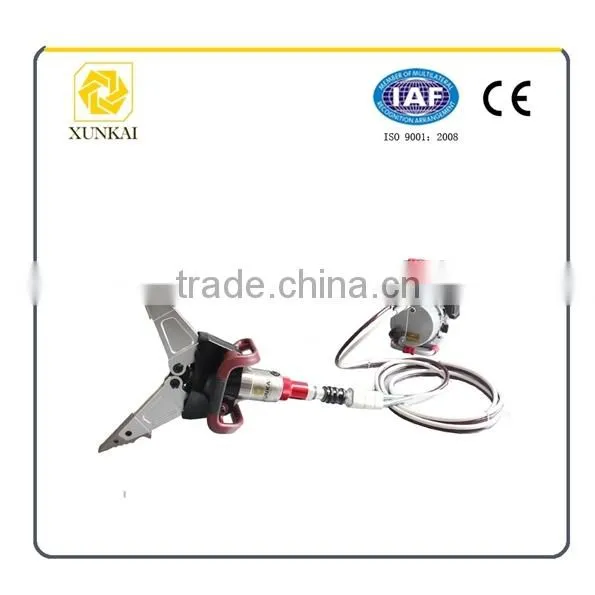

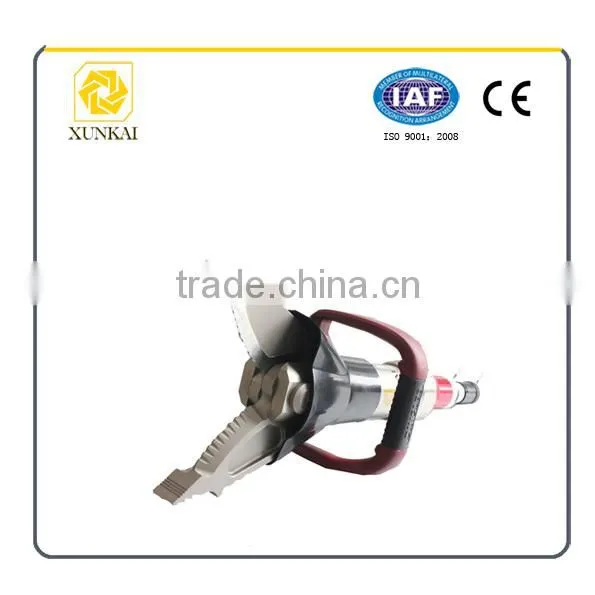

CE / ISO / CCC/ EN/ NFPA hydraulic rescue tool

Model

XHS-500/50-B

Max. Spreading Distance

≥500mm

Rated Working Pressure

70MPa(700.000bar)

Max. Spreading Force

50KN(5T)

Rated Spreading Force

35KN(3.5T)

Hauling Distance

505mm

Weight

≤11kg

Model

XHC-350/110-B

Max. Opening Distance of Blades

≥110mm

Rated Working Pressure

700bar

Max. Cutting Capacity
(Q235 steel)

Φ28mm(circle steel)

Max. Cutting Force

350KN(35T)

Weight

≤9kg

Model

XHSC-35/240-B

Max. Opening Distance of Blades

≥240mm

Rated Working Pressure

700bar

Max. Cutting Capacity
(Q235steel)

10mm(steel plate);
Φ24mm(circle steel)

Max.Cutting Force

300KN(30T)

Max Spreading Force

35KN(3.5T)

Weight

≤9.5kg

Model

XHR-100/360-B

Rated Working Pressure

700bar

Max. Extending Force

100KN(10T)

Closed Length

≤360mm

Extending Scope

360-640mm

Length of Extending Bar Ⅰ

100mm

Weight

≤9kg

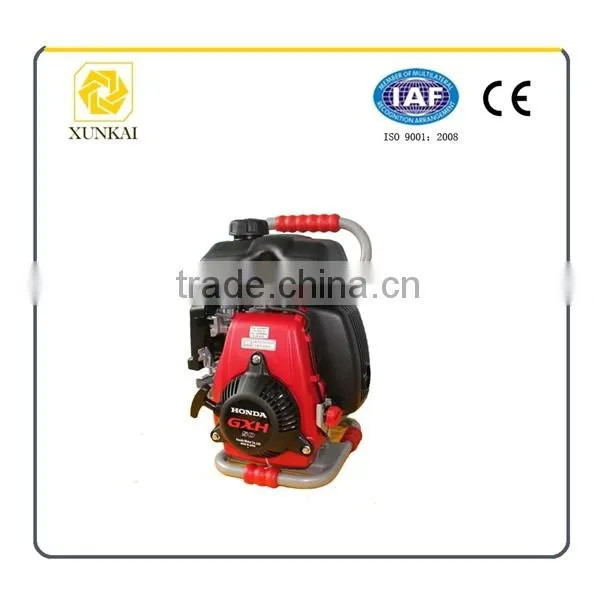

Model

XHP-70/0.5-B

Power

Honda GX100 Engine

Pump Type/Output Type

100KN(10T)

Rated Rotating Speed

4850±200rpm

Rated Pressure(High Pressure)

70MPa

Rated Output Flow(High Flow)

≥0.5L/min

Rated Output Flow(Low Flow)

≥2.3L/min

Driving Power

1.7kw

Gasoline Volume

1L

Hydraulic Oil Volume

1.4L

Weight

≤14kg
