Vehicle Rescue Equipment Hydraulic Tool Kit

Name: Vehicle Rescue Equipment Hydraulic Tool Kit
Brand: XUNKAI
SKU: 127867243

US$ 1 - 6,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

XUNKAI

Model Number:

XHSC-32/325-A

Shandong Xunkai Fire Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Jinan/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name XUNKAI

Model Number XHSC-32/325-A

Specifications

vehicle rescue equipment hydraulic tool kit
1. 420KN cutting force
2.120 spreading force
3.Accelerate valve
4. 14kg

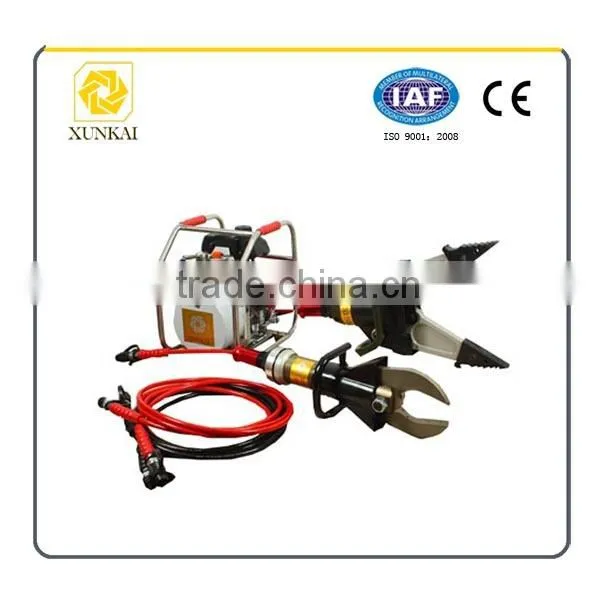

vehicle rescue equipment hydraulic tool kit (includes the hydraulic pump, hydraulic spreader, hydraulic cutter)

A- vehicle rescue equipment hydraulic tool kit applications:

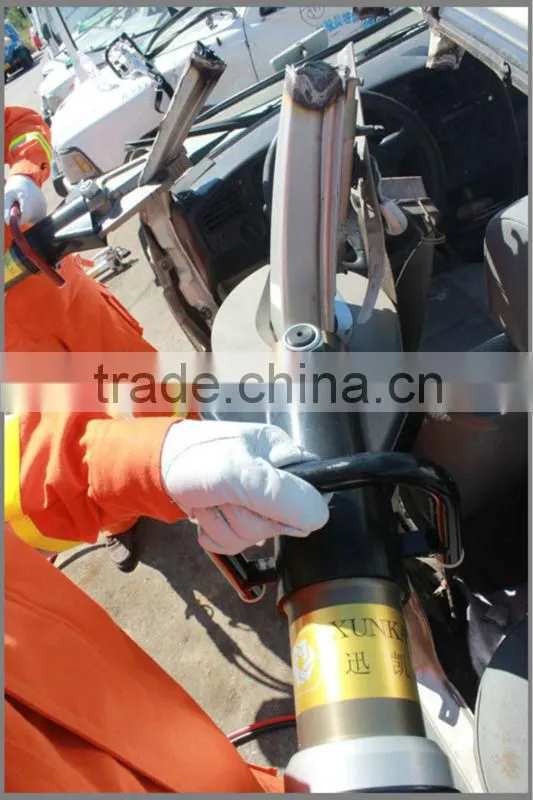

#Traffic accident rescue, earthquake disaster relief and accident rescue etc.;

#Suitable for rescue operations maneuverable;

#Unclenching the door and metal structure into deformation;

#Cut metal structure, vehicle parts, pipeline and metal plates.

B-Material of vehicle rescue equipment hydraulic tool kit vehicle

The knife is made up of heavy grindin, high strength steel alloy manufactured;

C- vehicle rescue equipment hydraulic tool kit functions:

Shearing, expansion and pulling functions. The multi-functional pliers can instead as a cutter and a spreader;

D- vehicle rescue equipment hydraulic tool kit features:

#Shearing prevent splashing collapse with automatic reset manually controlled steering valves, provides security for the manipulator;

#Manual control valve operation can drive the blade open and close in any fixed position, with self-locking function;

#Time is short when open and close, accelerating the rescue process;

E- vehicle rescue equipment hydraulic tool kit specification

Hydraulic spreader specification

Hydraulic cutter

Model	XHC-420/150-A
Max. Opening Distance of Blades	≥150mm	≥5.9 in.
Rated Working Pressure	700bar	10150 psi
Max. Cutting Capacity(Q235 steel)	15mm(steel plate);Φ28mm(circle steel)	0.6 in.(steel plate); Φ1.1 in.(circle steel)
Max. Cutting Force	420KN(42T)	92594 lbs
Opening Time without Load (Powered by motor pump)	≤25s	≤25s
Closing Time without Load (Powered by motor pump)	≤30s	≤30s
Weight(working condition)	≤13kg	≤28.7 lbs
Dimension(LWH)	690210170mm	27.28.36.7 in.

Hydraulic Pump

Model	XHP-70/0.66-A
Power	Honda GX100 Engine	Honda GX100 Engine
Pump Type/Output Type	Double-acting Piston/Double-output Pump	Double-acting Piston/Double-output Pump
Rated Rotating Speed	3200±200rpm	3200±200rpm
Rated Pressure(High Pressure)	70MPa*2	10150 psi *2
Rated Output Flow(High Flow)	≥0.66L/min*2	40.2 cu.in./min*2
Rated Output Flow(Low Flow)	≥2.0L/min*2	122cu.in./min*2
Driving Power	1.7kw	2.3 HP
Gasoline Volume	1L	61 cu.in.
Hydraulic Oil Volume	3L	183 cu.in.
Applicative Temperature	-30°C ~ 55°C(86°F~131°F)	-30°C ~ 55°C(86°F~131°F)
Weight	≤27kg	59.5 lbs
Dimension(LWH)	390340460mm	15.313.418.1 in.
