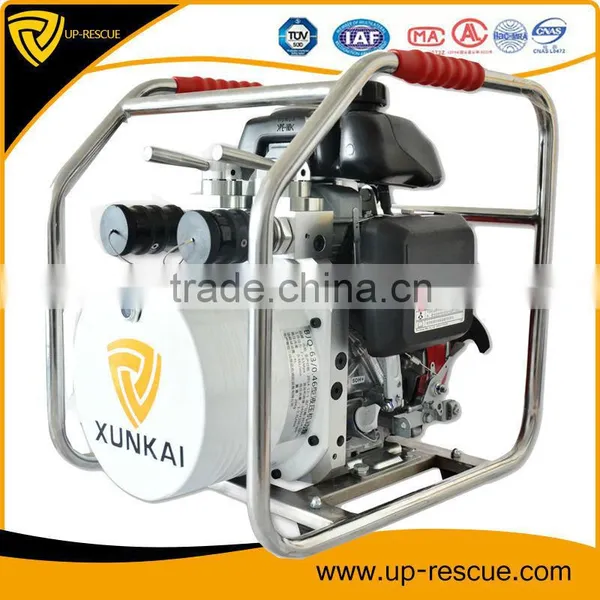

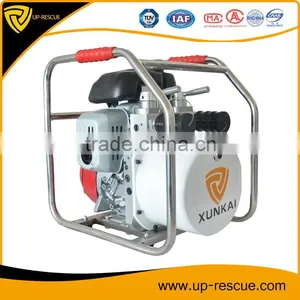

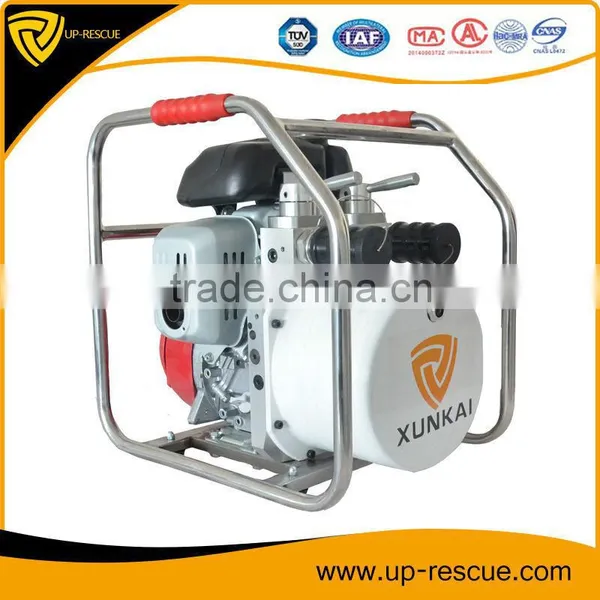

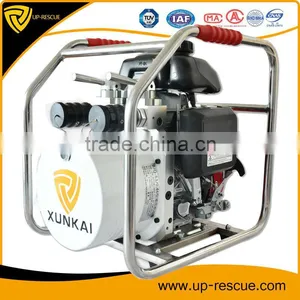

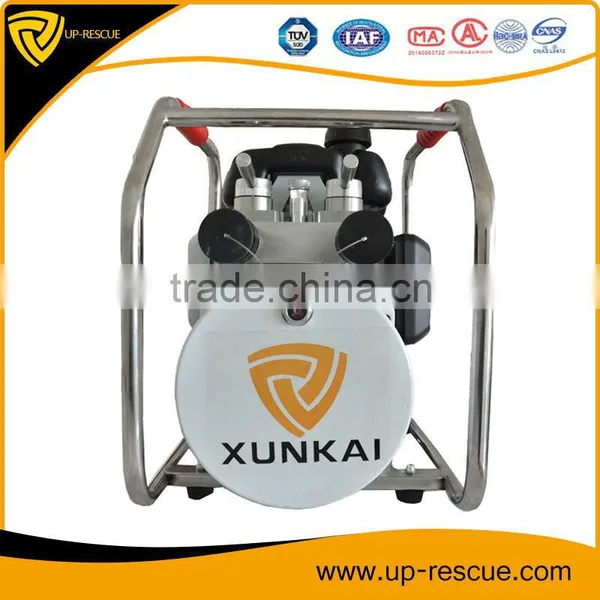

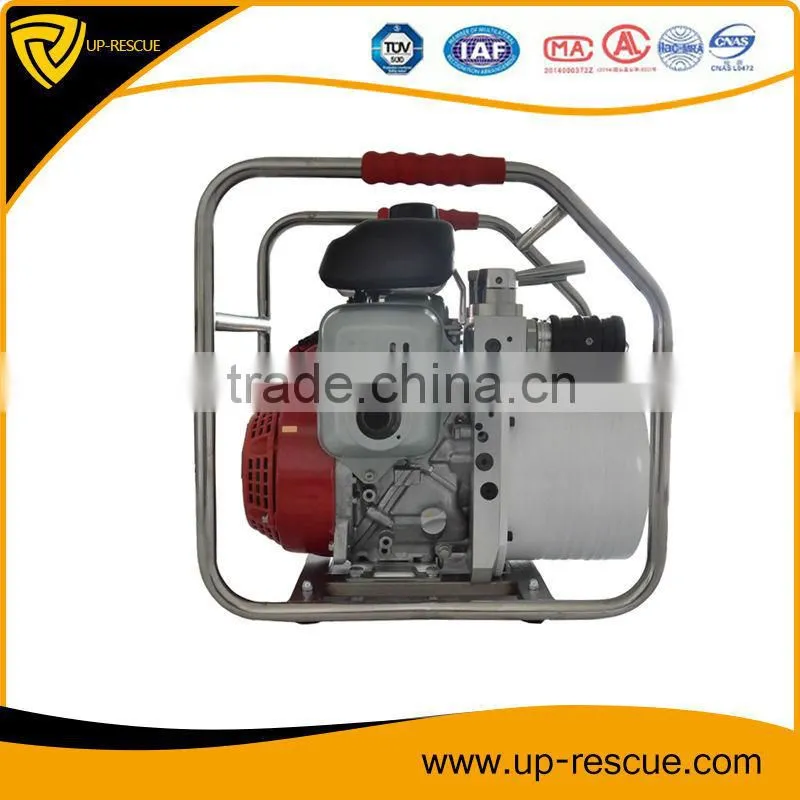

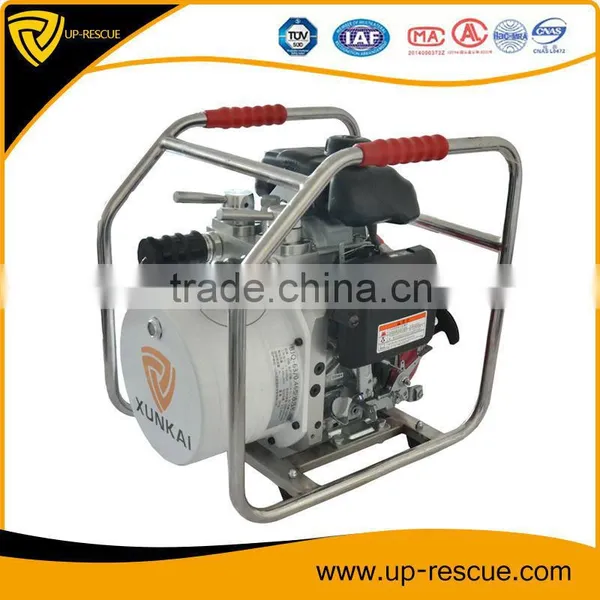

Emergency Earthquake Fire Rescue Tool Double-output Pump
Double-output Pump Technical Parametr
Model |
XHP-70/0.66-M |
|
Power |
Honda GX100 Engine |
|
Pump Type/Output Type |
Double-acting Piston/Double-output Pump |
|
Rated Rotating Speed |
3200±200rpm |
|
Rated Pressure(High Pressure) |
70MPa*2 |
10150 psi *2 |
Rated Output Flow(High Flow) |
≥0.66L/min*2 |
40.2 cu.in./min*2 |
Rated Output Flow(Low Flow) |
≥2.0L/min*2 |
122cu.in./min*2 |
Driving Power |
1.7kw |
2.3 HP |
Gasoline Volume |
1L |
61 cu.in. |
Hydraulic Oil Volume |
3L |
183 cu.in. |
Applicative Temperature |
-30°C ~ 55°C(86℉~131℉) |
|
Weight |
≤27kg |
59.5 lbs |
Dimension(L*W*H) |
390*340*460mm |
15.3*13.4*18.1 in |
Double-output Pump Application
Various accidents, traffic accident rescue;
Earthquake, buildings collapse, fire disaster and shipwreck rescue;
Air crash rescue, salvage, and to rescue in mountains or narrow space where rescue vehicles can not enter easily.
Double-output Pump Features
1.Mono Coupling, discharge with pressure.
2. Turbo power for double performance.
3 Honda engine, light weight, easy to start, excellent performance.4.With high and low pressure output, automatic transfer, high rescue efficient
| Package Size for your caclulate freight | |
| Package Size | 390*340*460mm |
| Weight | <=27kg |
| Delivery Time | |
| As normal,the delivery time is 5-7 working time since full payment (please contact sales representatives for exacttime each order) | |
XunKai is professional manufacturer of rescue tools and firefighting equipment in china.We have many level rescue and protection tools.And as a factory,we can give more competitive dealer price to every customer.
In china,our main customer is government organization and some trade company.By tender or other way to have better cooperation with government organization.
Mono coupler,turbo function,double output,lightweight and multifunction is our rescue tools feature.
We have professional sales and technology team to solve any problem from our customer.Contact us!Let' talk details.
Warranty
1.One year warranty under normal use.We will be in charge for replacement or repair it for free if there is any problem caused by the tools quality( All fees are paid by XUNKAI)
2.24 hours technical support by Hhone,Email,Skype,MSN;
3.Friendly English working manual,popular and easy to understand.
4.XUNKAI provide sample
5. If you want to EXPO, you can advance to pay a small deposit, wait for after the exhibition, products have no quality problem, the deposit can be refunded.
Countries We Exported to
Our products are exported to more than 20 countries, like USA, Italy, Ukraine, India, Indonesia, Philippine, Bangladesh,Turkey, South Africa, Nigeria,Sudan,Libya,Albania, France,Spain,Ecuador,Iran,Korea,Thailand etc.(You can understand the world
Payment Terms
1. T/T in advance;
2. West Union:we can accept small payment(below$3000), but the banking charges shall be paid by the buyer;
3. L/C is acceptable if the amount is bigger than $100,000. Please issue the L/C draft for our confirmation first.
