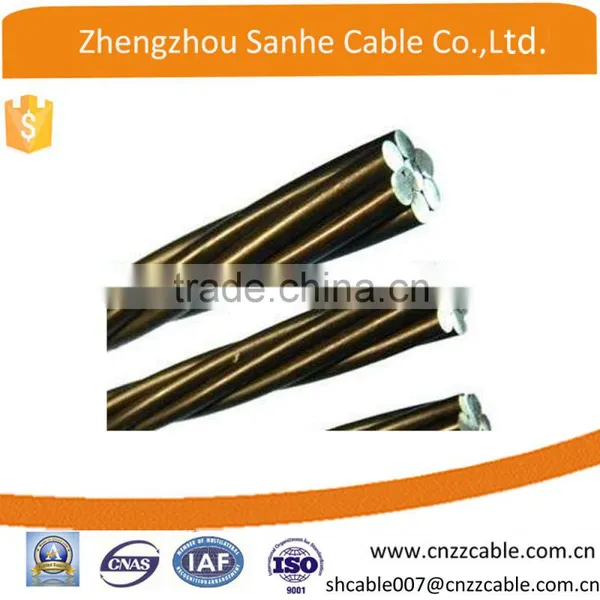

Stay Wire, Guy Wire,Galvanized Steel Wire Strand
1. Material: 45#,60#,65#,70#,72B,80#,82B,65Mn
2. Surface Coating: Galvanized
3. Characteristic: Good galvanized, good corrosion prevention
Excellent mechanical properties
Being used for overhead ground wire
4. Packing type:Spool
5. Application: Being used for overhead ground wire in electric communication, television and brandcasting
6. Remarks during use and handling:
a. During transportation, handle softly and carefully, avoid bumping and damaging the outer packing materials. Moisture and rain prohibited. Steel strand must be stored in dry and well ventilated indoors
b. Pay attention to the direction of steel strand when paying-off. Be sure the spool is rotating freely as to achieve identical tension of all the steel strand
c. In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface
Technical parameters
| Structure | Diameter(mm) | Tensile Strength MPa |
| 1X3 | 6.2-8.6 | 1175 1270 1370 1470 1570 |
| 1X7 | 3.0-12 | 1175 1270 1370 1470 1570 |
| 1X19 | 8.0-20 | 1175 1270 1370 1470 1570 |
NOTE:Providing engineer design as per customer's request.
