Copper conductor PVC/Rubber insulated Rubber cable
1.Application :
This product is suitable for rated AC voltage 450/750V or below domestic appliaces, power-operated tools and various portable electric equipment.
3.Model, name and work in temperature
| Model | name | main usage |
| YQ,YQW | Light model rubber sheath flexible cable | used for light portable electric equipment and tools |
| YZ,YZW | Middle model rubber sheath flexible cable | used for various portable electric equipment and tools |
| YC,YCW | Heavy model rubber sheath flexible cable | various portable electric equipment which can bear larger mechanieal force effect |
4.Specification size and technical data
|
Section (mm2) |
Conductive core |
Average outer diameter (mm) |
20C conductor resistance (ohm/km) |
Reference weight (kg/km) |
||
Number diameter of core (mm) |
Min |
Max |
|
YC |
YCW |
|
2*4 |
56/0.3 |
12 |
15 |
4.95 |
280.2 |
305.6 |
2*6 |
84/0.3 |
13.5 |
18.5 |
3.3 |
412.2 |
448.2 |
2*10 |
84/0.4 |
11.5 |
14.5 |
1.91 | 669.1 | 732.8 |
2*16 |
126/0.4 |
18.5 |
24.0 |
1.21 |
906.6 |
988.5 |
2*25 |
196/0.4 |
21.0 |
27.5 |
0.78 |
1144.3 |
1229.4 |
2*35 |
276/0.4 |
24.5 |
31.5 |
0.554 |
1505.5 |
1610.4 |

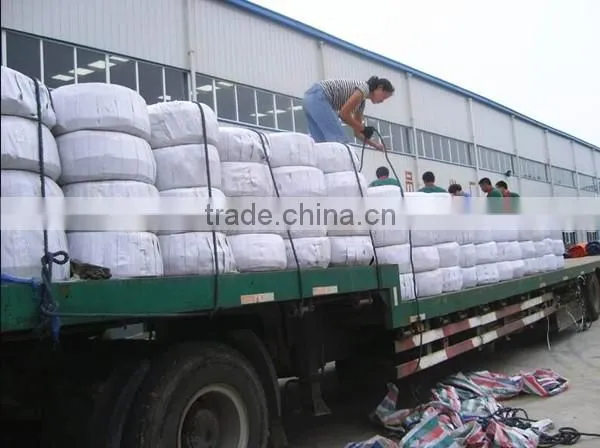

5. Products &shipping ,packing
