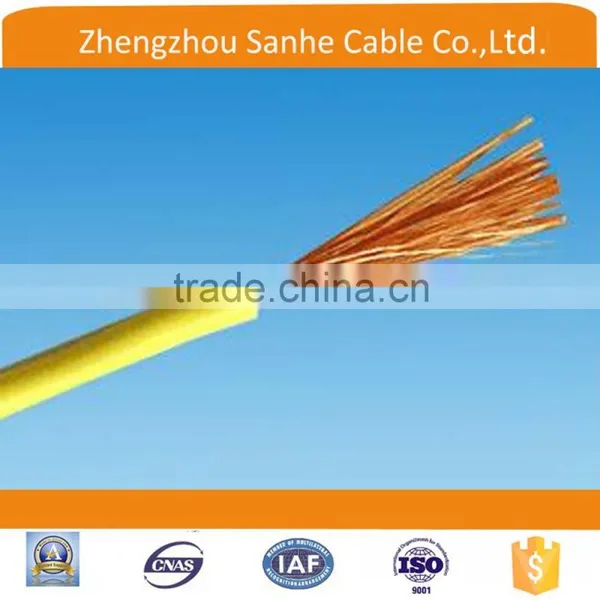

copper wire/ electric wire/ single copper wire/aluminum wire

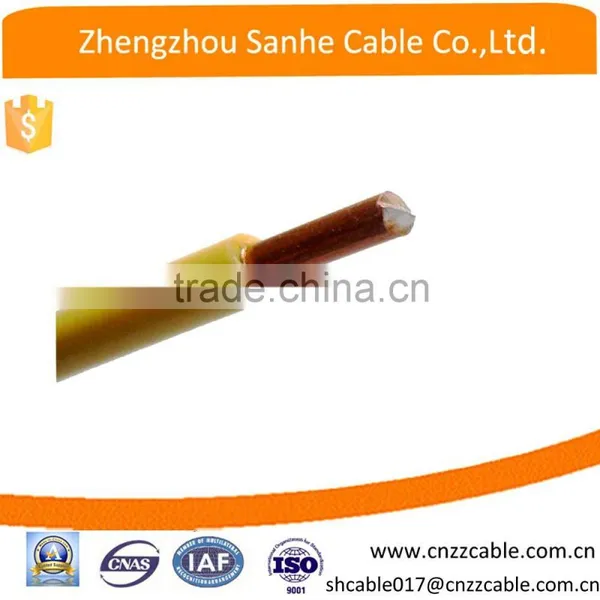

copper conductor PVC insulation single cable ,BYA wire
1.Usage
This product is fit ac rated voltage 300/500V or 450/750V.
2.Working temperature
BV-105℃model not more than 105℃.others not more than 75℃ installation temperature not lower than 0℃.description
3. Technological data
|
Nominal section (mm2) |
N/Dia (mm) |
Max outer Dia(mm) |
Reference Weight (kg/km) |
Conductor resistance at 20℃≤(Ω/km) |
||
copper |
Aluminum |
copper |
Aluminum |
|||
1.5(class 1) |
1/1.38 |
3.3 |
20.3 |
|
12.1 |
|
1.5(class2) |
7/0.52 |
3.5 |
21.6 |
|
12.1 |
|
2.5(class 1) |
1/1.78 |
3.9 |
31.6 |
17 |
7.41 |
11.80 |
2.5(class2) |
7/0.68 |
4.2 |
34.8 |
|
7.41 |
|
4(class 1) |
1/2.55 |
4.4 |
47.1 |
22 |
4.61 |
7.39 |
4(class2) |
7/0.85 |
4.8 |
50.3 |
|
4.61 |
|
6(class 1) |
1/2.76 |
4.8 |
50.3 |
29 |
3.08 |
4.91 |
6(class2) |
7/1.04 |
5.4 |
71.2 |
|
3.08 |
3.08 |
10 |
7/1.35 |
7.0 |
119 |
62 |
1.83 |
1.91 |
16 |
7/1.70 |
8.0 |
179 |
78 |
1.15 |
1.20 |
25 |
7/2.04 |
10.0 |
281 |
118 |
0.727 |
0.868 |
35 |
7/2.52 |
11.5 |
381 |
156 |
0.524 |
0.641 |
50 |
19/1.78 |
13 |
521 |
215 |
0.387 |
0.443 |
