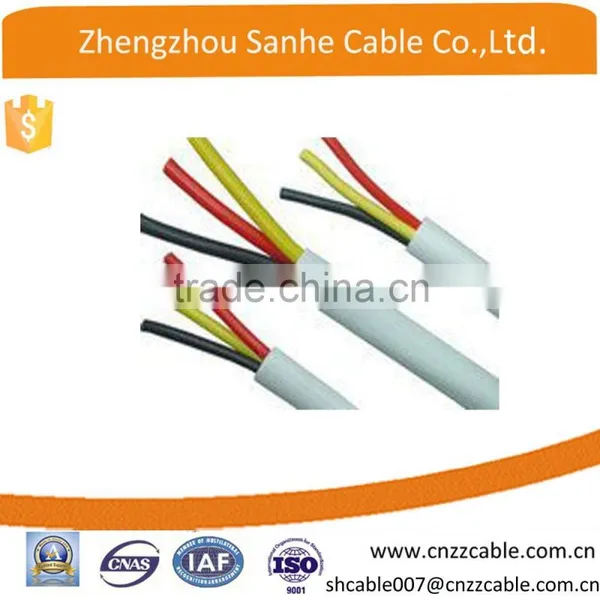

Help Center300/500V Flexible Copper Conductor PVC Insulation Electrical Building Wire 3*2.5mm2
Related Products
-
450/750V Copper Conductor H05V-U/H07V-U PVCwireUS$ 1 - 10MOQ: 5000 Meters -
450/750V Flexible Copper Conductor H05V-K PVC Insulated House Wire 2.5mm2US$ 1 - 10MOQ: 5000 Meters
-
600V Flexible Thermoplastic PVC Insulated Multiconductor TSJ/TJS-N WIREUS$ 1 - 10MOQ: 1000 Meters
-
300/500V Flexible Copper Conductor PVC Insulation Electrical Wire 1.5mm2US$ 1 - 10MOQ: 5 Kilometers
-
450/750V Copper Conductor THW/THHN PVC Insulated Electrical WireUS$ 1 - 10MOQ: 5 Kilometers
Application
The products is suitable for use in power installations, fixed wiring or flexible
connections for electrical appliances like lighting, electronic equipment, instrument
and communication equipment with rated voltage 450/750V or less
Specification:
1,This cable is produced according to the standard BS6500,IEC60227:1993, VDE 0281
2,BS6360 Class 5,Solid or Stranded Bare Copper Conductor
3,BS7655 TI 1 PVC Insulation
4,PVC Sheathed, color available

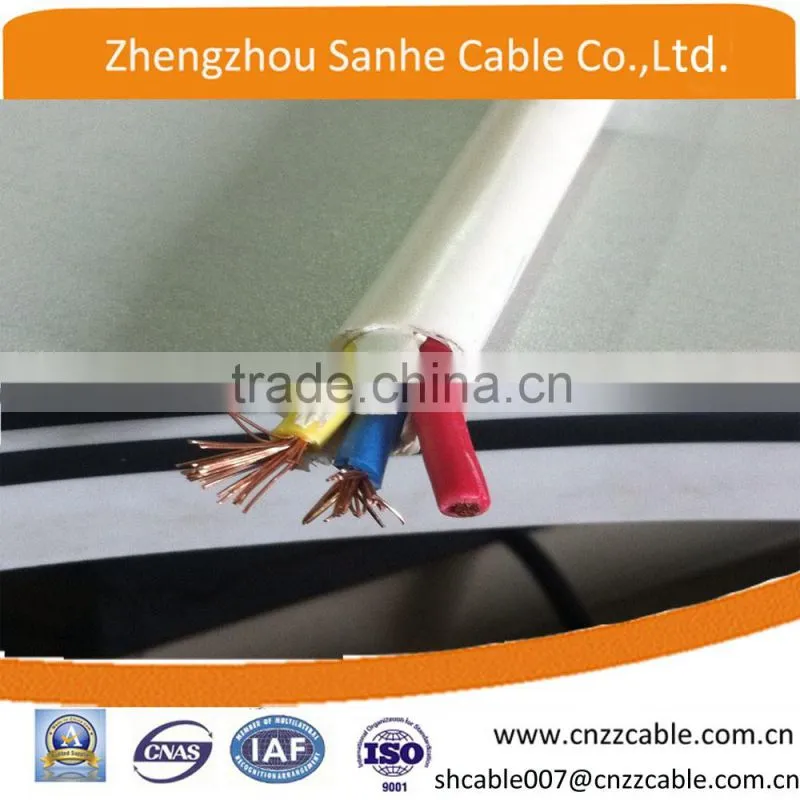

Construction of the electrical wiring(or pvc insulated wire)
1- Flexible Copper Conductor, Solid or Stranded Copper Conductor.
Class 1, Class 2, Class 5 flexible copper conductor
2- PVC Insulation
3. PVC filling
4. PVC jacket
products construction
Model No. |
Conductor | insulation | jacket | ||||
| cores& number wire area | Max. Resistance at 20°C | Thickness | Min. Resistance at 70°C | Thickness | Min Dia | Max Dia | |
| mm2 | MΩ/km |
mm | MΩ/km |
mm | mm | mm | |
| RVV2×0.75 | 2×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6 | 7.6 |
| RVV2×1.0 | 2×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.4 | 8 |
| RVV2×1.5 | 2×1.5 | 13.3 | 0.7 | 0.01 | 0.8 | 7.4 | 9 |
| RVV2×2.5 | 2×2.5 | 7.98 | 0.8 | 0.009 | 1 | 8.9 | 11 |
| RVV3×0.75 | 3×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6.4 | 8 |
| RVV3×1.0 | 3x1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.8 | 8.4 |
| RVV3×1.5 | 3x1.5 | 13.3 | 0.7 | 0.01 | 0.9 | 8 | 9.8 |
