Specifications
XLPE insulated PVC sheath power cableIEC,DIN,ASTM,BS standard
rich manufacture experience
best serive for you

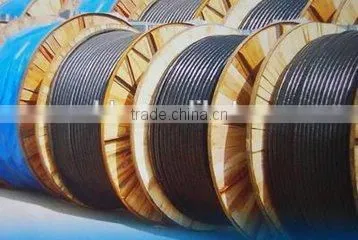

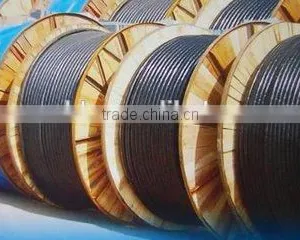

0.6/1kv XLPE insulated PVC sheath power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE power cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting anti-chemical corrosion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
The flame-retardant and non-flame retardant XLPE cable can be manufactured with three technologies (peroxide, silane and irradiation cross-linking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non-halogenated and three classes of A,B,C.
conductor |
Name |
|
copper |
aluminum |
|
|
YJV (YJY) |
YJLV (YJLY) |
XLPE insulated ,PVC/PE sheathed power cable |
|
YJV22 (YJV23) |
YJLV22 (YJLV23) |
XLPE insulated, steel tape armored ,PVC/ PE sheathed power cable |
|
YJV32 (YJV33) |
YJLV32 (YJLV33) |
XLPE insulated ,fine steel wire armored ,PVC/ PE sheathed power cable |
|
YJV42 (YJV43) |
YJLV42 (YJLV43) |
XLPE insulated ,thick steel wire armored, PVC /PE sheathed power cable |
|
ZR-YJV (ZR-YJY) |
ZR-YJLV (ZR-YJLY) |
XLPE insulated ,PVC/PE sheathed flame-retardant power cable |
|
ZR-YJV22 (ZR-YJV23) |
ZR-YJLV22 (ZR-YJLV23) |
XLPE insulated, steel tape armored ,PVC/ PE sheathed flame-retardant power cable |
|
ZR-YJV32 (ZR-YJV33) |
ZR-YJLV32 (ZR-YJLV33) |
XLPE insulated ,fine steel wire armored ,PVC/ PE sheathed flame-retardant power cable |
|
ZR-YJV42 (ZR-YJV43) |
ZR-YJLV42 (ZR-YJLV43) |
XLPE insulated ,thick steel wire armored, PVC /PE sheathed flame-retardant power cable |
Type |
No. of Cores |
Nominal Cross-Section of Conductor(mm2) |
|
YJV YJLV YJV YJLV YJV22 YJLV22 YJV23 YJLV23 YJV32 YJLV32 YJV33 YJLV33 YJV42 YJLV42 YJV43 YJLV43 ZR-YJV ZR-YJLV ZR-YJY ZR-YJLY ZR-YJV22 ZR-YJLV22 ZR-YJV23 ZR-YJLV23 ZR-YJV32 ZR-YJLV32 ZR-YJV33 ZR-YJLV33 ZR-YJV42 ZR-YJLV42 ZR-YJV43 ZR-YJLV43 |
1 |
1.5--1000 |
|
2 3 4 5 |
1.5--400 |
|
|
3+1 4+1 3+2 |
2.5--400 |
ZR- covers three classes A,B,C of flame-retardant cable.It can be expressed as ZRA-,or ZRB-or ZRC-separately.For example:ZRB-YJV,or ZRA-YJV22.
